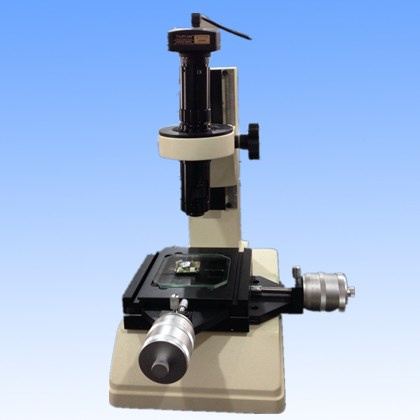

Measuring Microscope Monocular Video with Digital Camera

Name: Measuring Microscope Monocular Video with Digital Camera
Brand: china-manufacturer-directory.com
SKU: 724433065
Availability: InStock
Rating: 4.7 (145 reviews)

Supplier:	Ningbo Gamry Optical Instrument Co., Ltd.
Price:	US $ 500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XQC-II-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Measuring Microscope:	Monocular Video
Type:	Video
Principle:	Optics
Mobility:	Desktop
Number Of Cylinder:	Monocular
Magnification:	50-100X
Shape:	Rectangular Prism

Product Description

1. Application:

Monocular video microscope: MZDH0850
+
Digital camera
+
Measuring table

Connected with computer

Measuring table specification:

XYtravel range	50X50mm
Reading	mechnical micrometer, moving range 0-25mm, minimum division 0.002mm (0.0001″), Minimum angle reading 6′
Focusing	Manual method
Illumination	Reflected/Transmitted, adjustable ray with green filter
Power supply	220V/110V 50Hz/60HZ
Lamp source	24V/2W
Optional Accessory	360° Rotary table
	5X, 10X objective
	1/3" 4.2M Pixel CCD camera
	Single/double crosshair generators

Monocular video microscope: MZDH0850 specification:

	Specification:
	-- Types of objectives: Optical system: parallel light Objectives: 1.0X(standard),( 0.3X, 0.5X,0.75X,1.5X,2X available) --The range of magnification: The range of objective zoom magnification: 0.75X~5X Standard total magnification: 0.75X~5X, Extend total magnification: 0.07X~50X(use auxiliary objectives and kinds of magnification CCD adapters). Pls check below chart for the range of magnification:
Objective	Specification	CCD adapter
Objective	Specification	0.3X	0.4X	0.5X	0.67X	1X	1.5X	2X
0.3X	Optical magnification	0.07X~0.45X	0.09X~0.6X	0.11X~0.75X	0.15X~1X	0.225X~1.5X	0.34X~2.25X	0.45X~3X
	Field of video(mm)	51.4X68.6~8X10.67	40X53.33~6X8	32.7X43.6~4.8X6.4	24X32~3.6X4.8	16X21.3 ~2.4X3.2	10.6X14.12~1.6X2.13	8X10.67 ~1.2X1.6
	Working distance(mm)	293
0.5X	Optical magnification	0.11X~0.75X	0.15X~1X	0.19X~1.25X	0.25X~1.675X	0.375X~2. 5X	0.56X~3.75X	0.75X~5X
	Field of video(mm)	32.7X43.6 ~4.8X6.4	24X32 ~3.6X4.8	18.9X25.3 ~2.88X3.84	14.4X19.2 ~2.15X2.9	9.6X12.8 ~1.44X1.92	6.4X8.6 ~0.96X1.28	4.8X6.4 ~0.72X0.96
	Working distance(mm)	175
0.75X	Optical magnification	0.17X ~1.125X	0.225X ~1.5X	0.28X ~1.875X	0.4X ~2.5X	0.56X ~3.75X	0.84X ~5.625X	1.125X ~7.5X
	Field of video(mm)	21.2X28.2 ~3.2X4.27	16X21.33 ~2.4X3.2	12.9X17.1 ~1.92 X2.56	9X12 ~1.44 X1.92	6.4X8.6 ~0.96X1.28	4.3X5.7 ~0.64X0.85	3.2X4.27 ~0.48X0.64
	Working distance(mm)	117
1X	Optical magnification	0.225X ~1.5X	0.3X ~2X	0.375X ~2. 5X	0.5X ~3.35X	0.75X ~5X	1.125X ~7.5X	1.5X ~10X
	Field of video(mm)	16X21.3 ~2.4X3.2	12X16 ~1.8X2.4	9.6X12.8 ~1.44X1.92	7.2X9.6 ~1.07X1.4	4.8X6.4 ~0.72X0.96	3.2X4.27 ~0.48X0.64	2.4X3.2 ~036X0.48
	Working distance(mm)	82
1.5X	Optical magnification	0.34X ~2.25X	0.45X ~3X	0.5625X ~3.75X	0.75X ~5X	1.125X ~7.5X	1.6875X ~11.25X	2.25X ~15X
	Field of video(mm)	10.6X14.1 ~1.6X2.13	8X10.67 ~1.2X1.6	6.4X8.53 ~0.96X1.28	4.8X6.4 ~0.72X0.96	3.2X4.27 ~0.48X0.64	2.13X2.84 ~0.32X0.43	1.6X2.13 ~0.24X0.32
	Working distance(mm)	54
2X	Optical magnification	0.45X ~3X	0.6X ~4X	0.75X ~5X	1X ~6.7X	1.5X ~10X	2.25X ~15X	3X ~20X
	Field of video(mm)	8X10.7 ~1.2X1.6	6X8 ~0.9X1.2	4.8X6.4 ~0.72X0.96	3.6X4.8 ~0.54X0.72	2.4X3.2 ~0.36X0.48	1.6X2.1 ~0.24X0.32	1.2X1.6 ~0.18X0.24
	Working distance(mm)	35
5X	Optical magnification	1.125X ~7.5X	1.5X ~10X	1.875X ~12.5X	2.5X ~16.75X	3.75X ~25X	5.625X ~37.5X	7.5X ~50X
	Field of video(mm)	3.2X4.27 ~0.48X0.64	2.4X3.2 ~0.36X0.48	1.92X2.56 ~0.288X0.384	1.44X1.92 ~0.21X0.3	0.96X1.28 ~0.144X0.192	0.64X0.85 ~0.096X0.128	0.48X0.64 ~0.072X0.096
	Working distance(mm)	10.1
Magnification range of zoom body 0.75X~5X
