Zoom Monocular Video Microscope Mzdh1065

Name: Zoom Monocular Video Microscope Mzdh1065
Brand: china-manufacturer-directory.com
SKU: 684995422
Availability: InStock
Rating: 4.3 (126 reviews)

Supplier:	Ningbo Gamry Optical Instrument Co., Ltd.
Price:	US $ 350-450/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	MZDH1065
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Function:	Laboratory Testing
Feature:	Video Displaying
Type:	Video
Principle:	Optics
Mobility:	Portable
Number Of Cylinder:	Monocular
Magnification:	50-100X
Shape:	Rectangular Prism

Product Description

1.Introduction:
MZDH1065 series high-magnification zoom monocular video microscopes have four types, MZDH1065BT, MZDH1065BTC, MZDH1065T, MZDH1065TC. They are characterized by high-magnification, high-resolution, and are finished video displaying and eyepieces observing at the same time(MZDH1065BT, MZDH1065BTC are observed with both eyes). The image is invertion by MZDH1065BT and MZDH1065BTC observing, however, the images of MZDH1065T and MZDH1065TC are erecting images. MZDH1065BTC, MZDH1065TC contain the coaxial illumination. It is particularly suitable for checking-up, measuring the section of fibre, LCD and the other microscopic surface.

2.Main technology Specifications:
Video displaying and eyepieces binocular 30° observing at the same time
The range of objective zoom magnification: 1X~6.5X
Adjusting high lighteness LED coaxial illumination (MZDH1065BTC)
High-resolution, parfocal in zoom course
The measurement to match between the support and the main body:Φ45mm
0.3X,0.5X,1X(standard outfits),1.5X four kinds of CCD adapters to be selected.
0.5X,0.75X,1X,1.5X,2X,5X auxiliary objectives to be selected.
Kinds of auxiliary illuminators, stands to be selected.(CCD is selected to buy)

3.Photos:

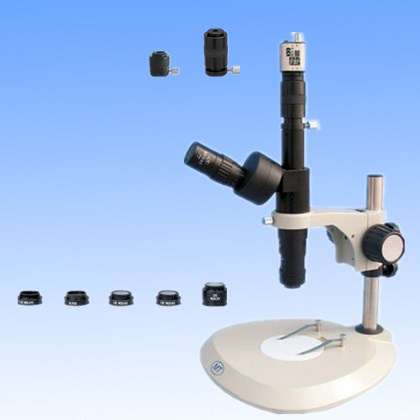

MZDH1065T

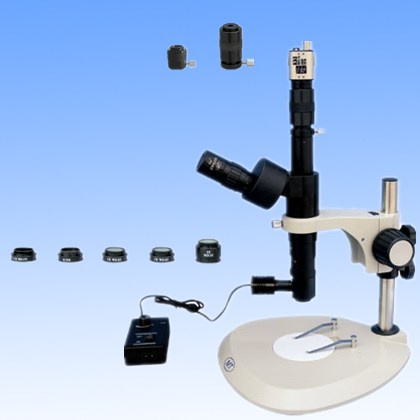

MZDH1065TC+MLC1000

	MZDH1065BT	MZDH1065T	MZDH1065BTC	MZDH1065TC
Main body ZDH1065BT	*
Main body ZDH1065T		*
Main body ZDH1065BTC			*
Main body ZDH1065TC				*
Eyepieces WF10X/20	**		**
Eyepieces SWH10X		*		*
Stand SD1-D	*	*	*	*
LED illuminator MLC1000			*	*

Video display:
Objective	CCD adapter								Eyepiece
Objective	0.5X				1X				Eyepiece
0.5X	Video magnification	14.8X ~96.3X	Magnification	5X~32.5X	Video magnification	29.6X ~192.6X	Magnification	5X~32.5X	10X
	Field of video(mm)	14.4X19.2 ~2.2X2.95	Field of view	Φ40~Φ6.2	Field of video	7.2X9.6 ~1.1X1.5	Field of view	Φ40~Φ6.2
	Working distance(mm)	175
0.75X	Video magnification	22.2X ~144.5X	Magnification	7.5X~48.75X	Video magnification	44.5X ~288.9X	Magnification	7.5X~8.75X
	Field of video(mm)	9.6X12.8 ~1.5X2	Field of view	Φ26.7~Φ4.1	Field of video	4.8X6.4 ~0.74X0.98	Field of view	Φ26.7~Φ4.1
	Working distance(mm)	117
1X	Video magnification	29.6X ~192.6X	Magnification	10X~65X	Video magnification	59.27X ~385.2X	Magnification	10X~65X
	Field of video(mm)	7.2X9.6 ~1.1X1.5	Field of view	Φ20~Φ3.1	Field of video	3.6X4.8 ~0.55X0.74	Field of view	Φ20~Φ3.1
	Working distance(mm)	82
1.5X	Video magnification	44.5X ~288.9X	Magnification	15X~97.5X	Video magnification	88.9X ~577.9X	Magnification	15X~97.5X
	Field of video(mm)	4.8X6.4 ~.74X0.98	Field of view	Φ13.3~Φ2.1	Field of video	2.4X3.2 ~0.37X0.49	Field of view	Φ13.3~Φ2.1
	Working distance(mm)	54
2X	Video magnification	59.27X ~385.3X	Magnification	20X~130X	Video magnification	118.5X ~770.5X	Magnification	20X~130X
	Field of video(mm)	3.6X4.8 ~.55X0.74	Field of view	Φ10~Φ1.5	Field of video	1.8X2.4 ~0.28X0.37	Field of view	Φ10~Φ1.5
	Working distance(mm)	35
5X	Video magnification	148X ~963X	Magnification	50X~325X	Video magnification	296X ~1926X	Magnification	50X~325X
	Field of video(mm)	1.44X1.92 ~0.22X0.3	Field of view	Φ4~Φ0.6	Field of video	0.72X0.96 ~.11X0.148	Field of view	Φ4~Φ0.6
	Working distance(mm)	10.1
Magnification range of zoom body 1X~6.5X
Note: Video magnification and the field of video are based on 1/3" CCD camera and 14"monitor. In the "Field of view", the first line is MZDH1065BT , the second line is MZDH1065T.
