Product Specifications
| Prod Model: |
JQX-115F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Current: |
20A |
| Brand: |
Winston |
| Protect Feature: |
Sealed |
| Contact Load: |
: Low Power |
| Contact Form: |
1z, 1h, 1d 2z, 2h, 2D |
| Max. Switching Current: |
10A |
| Terminal Type: |
PCB Mounting |
| Coil Power: |
0.4W |
Product Description
Specifications

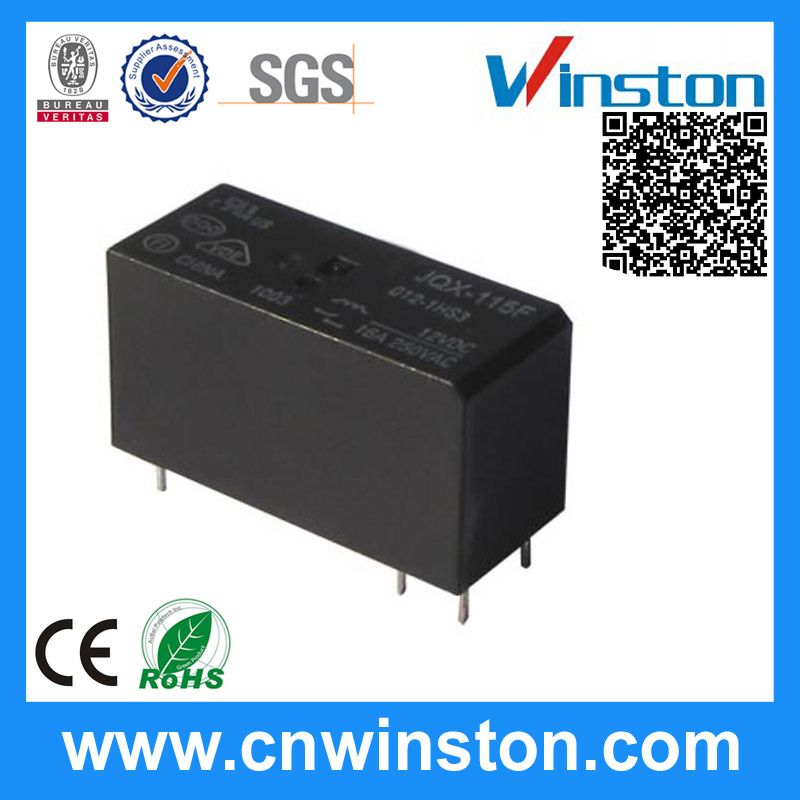

JQX-115F Miniature relay / pcb relay / pcb mounting relay
1 widely exported to middle east, Asia, Europe, etc
2 fast delive
Product Description
JQX-115F Miniature relay / pcb relay / pcb mounting relay
Our company have more other Power relay, PCB relay, Air-conditioning relay, General-purpose relay, Automotive relay, Magnetic latching relay, Time relay, Solid state relay types, welcome to contact us for deails.
Contact Specification
|
Contact form
|
1Z, 1H, 1D 2Z, 2H, 2D
|
Contact resitance
|
≤100mΩ ( 1A 6VDC )
|
Contact material
|
AgCdO AgSnO 2
|
Contact capacity
|
16A 250VA/30VDC 8A 250VAC/30VDC
|
|
Technical Specification
|
Insulation resistance
|
≥1000 Mω(500VDC)
|
Dielectric strength
|
Between coil and contacts≥5000VAC 1min
|
Between open contacts≥1000VAC 1min
|
Between contacts of different poless≥2500VAC 1min
|
Operate/Release time
|
≤15ms/5ms
|
Terminal type
|
PCB mounting
|
|
Coil Specification
|
Rated coil power
|
0.4W
|
|
Coil Data
|
Nominal voltage
|
Operate voltage
|
Release voltage
|
Coil resistance
|
VDC
|
VDC
|
VDC
|
Ω± 10%
|
5
|
3.75
|
0.5
|
55
|
6
|
4.5
|
0.6
|
68
|
12
|
9.0
|
1.2
|
270
|
24
|
18.0
|
2.4
|
1087
|
48
|
36.4
|
4.8
|
4347
|
60
|
48.0
|
6.0
|
7500
|
110
|
82.5
|
11.0
|
27170
|
|
Coil Data
|
Nominal voltage
|
Operate voltage
|
Release voltage
|
Coil resistance
|
VAC
|
VAC
|
VAC
|
Ω± 10%
|
24
|
19.2
|
7.2
|
350
|
110
|
88.0
|
33.0
|
8100
|
230
|
184.0
|
69.0
|
32500
|
