Product Description
Detailed Product Description
Fine shape, delicate workmanship, complete functions and excellent performance
1. Summary

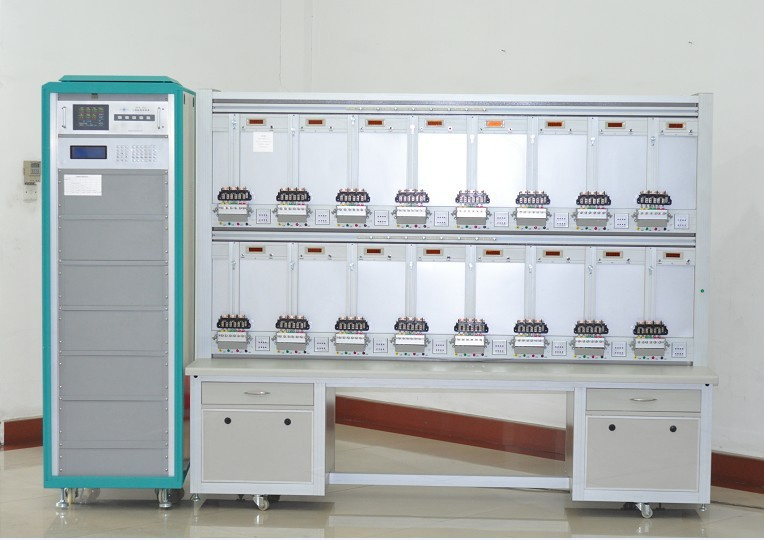

XSE-T series testing equipment for three-phase watthour meter is a kind of
Second-generation program controlled three-phase watthour meter test
Device developed in accordance with relevant national standards and
Regulations and combined with comments and suggestion of our users and
Experts. It is applicable for testing of three-phase watthour meters(including
Positive sine reactive meters) of level 0.2 and below.
2. Main technical index and technical performance
2.1 Accuracy level: XSE-D - level 0.05
XSE-T - level 0.1
2.2 Output voltage: 3*100V/57.7VY 3*100VΔ
3*380V/220VY 3*380VΔ
Regulating scope: 0-120% consecutively adjustable
Regulating fineness: Better than 0.01%
* Special voltage range can be setup according to user order.
2.3 Current range: 0.1A, 0.25A, 0.5A, 1A, 2.5A, 5A, 10A, 20A, 50A, 100A
Regulating scope: 0-120% consecutively adjustable
Regulating fineness: Better than 0.01%
2.4 Output power; (voltage loop) XSE--16 200VA
(current loop) XSE--16 350VA
2.5 Stability of output voltage, current and power:
≤ 0.02%/120S PF=1 (level 0.05 type)
≤ 0.05%/120S PF=1 (level O. 1type)
2.6 Wave distortion of output voltage and current: ≤ 0.5%
2.7 Symmetry of three phase: Better than 120. +0.3
2.8 Frequency range: 45Hz~65Hz regulating fineness: 0.1 Hz
2.9 Phase shifting range: -180.0 -180.0 regulating fineness: 0.1
2.10 Standard crystal oscillator stability: ≤ 10-7/s
2.11 Indicating instruments class
Voltmeter and ammeter accuracy: Level +0.5%
Phase meter accuracy: +1
Cymometer accuracy: +0.1Hz
2.12 Maximum meters for test: 10, 16
2.13 Power supply: 3*220+10%~50Hz
2.14 Maximum power consumption: XSE-16 4000VA
2.15 Working environment: Temperature; 20+5° C relative humidity: ≤ 85%
2.16 Dimensions and weight:
XSE-16 2380mm x 720mm x 1870mm 400kg
