Product Specifications
| Prod Model: |
L01A-8/L01A-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Source: |
Electrical |
| Installation: |
Portable |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Brand Name: |
Sujing |
| Optical System: |
Laser Photoresist Law |
| Detection Range: |
1 ~ 500um |
| Sample Volume: |
0.2 ~ 1000ml |
| Sampling Rate: |
5 ~ 100ml / Min |
| Test Range: |
0 ~ 9999999 Particles |
| Repeatability: |
Lux Light Meter |
| Finished Dosage Form: |
Liquid |
| Certification: |
ISO |
| Type: |
Liquid Particle Counter |
Product Description
Specifications
L01A-8/L01A-24 Intelligent Particle Detector is a high performance particle detector.

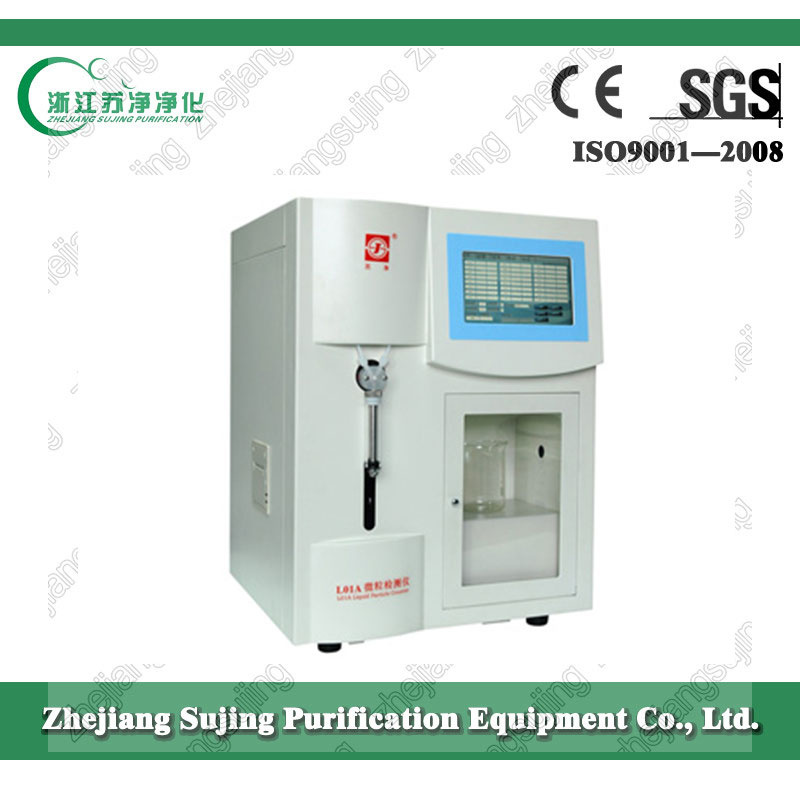

L01A-24 Liquid Particle Counter
L01A-24 Liquid Particle Counter uses photoresist method; import semiconductor laser light source, long life, high stability; 24 detection channels, channel size arbitrarily set to detect powerful; imported precision syringe pump sampling control system, high precision of sampling, sampling volume set arbitrarily; 7 inch true color large-screen LCD touch display, built-in calibration curves and powerful database management module, easy to operate; USB interface, data storage is not restricted, you can easily transfer data Save them to your computer
Features:
1. line with the 2010 version of "Chinese Pharmacopoeia" requirements, built 2010 version of "Chinese Pharmacopoeia", anesthesia equipment, infusion (GB8368-99 and GB8368-2005) and other national standards, can be directly detected injection, sterile powder, and medical appliances insoluble particles in the size and number, to meet the different business requirements to particle contamination detection;
2. imported semiconductor lasers and specificu integrated driver chips, sensors ensure high stability and long life;
3. 24 test channels, the detection range of 1 to 500 microns, the range of 1 to 100 micron size channels arbitrarily set to detect powerful for detecting particle size distribution and statistical functions;
4. instrument built-in calibration curve, in line with the international standard ISO21501 latest instrument calibration requirements;
5.adopts imported precision syringe pumpu sampling system, sampling and high precision, the minimum sample volume 0.2ml;
6. perfect anti-corrosive fluid path design, can be directly detectedu oil matrix, organic solvents, and the weak acid and weak base with a certain corrosive samples;
7.way using a magnetic stirrer, stir, stirring speed is adjustable, easy to produce bubbles;
8. powerful data storage and analysisu capabilities, built-in SQL database management software, data query and intuitive display, histogram statistics with data analysis;
9.7-inch coloru touch-screen LCD display, Chinese menu prompts graphics, touch-screen operation, support for Chinese input, user-friendly interactive interface;
10. external USB interface, can be directly through the U disk to save data to a computer, but can also be used to connect a computer RS232 serial port;
L01-24 technical specifications :
optical system | Laser photoresist law, semiconductor laser light source |
| Detection range | 1 ~ 500μm |
| detection channels | 24 channels, the particle size in the range of 1 ~ 100μm arbitrarily set by the user, the interval 0.1μm |
| sample volume | 0.2 ~ 1000ml |
| Sampling rate | 5 ~ 100ml / min |
| Test Range | 0 ~ 9999999 particles |
| Accuracy | ± 5% specified value |
| repeatability | RSD <2% (particle count> 1,000 / ml, 5ml sample) |
| sample volume accuracy | <± 1% |
| Resolution | > 90% |
| Best detectable concentration | 0 ~ 18,000 particles / ml |
| Display Operation | 7-inch large-screen color LCD touch screen |
| Data Output | built-in printer, RS232 interface, USB interface |
| database software | Provides data statistics,query, analysis, and storage capabilities |
| Power | AC 220V ± 10%, 50Hz,<80W |
| Ambient temperature | 10 ~ 40 °C
|
