Product Specifications
| Prod Model: |
RAY-607A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Dissolved Oxygen Meter |
Product Description
Product Description

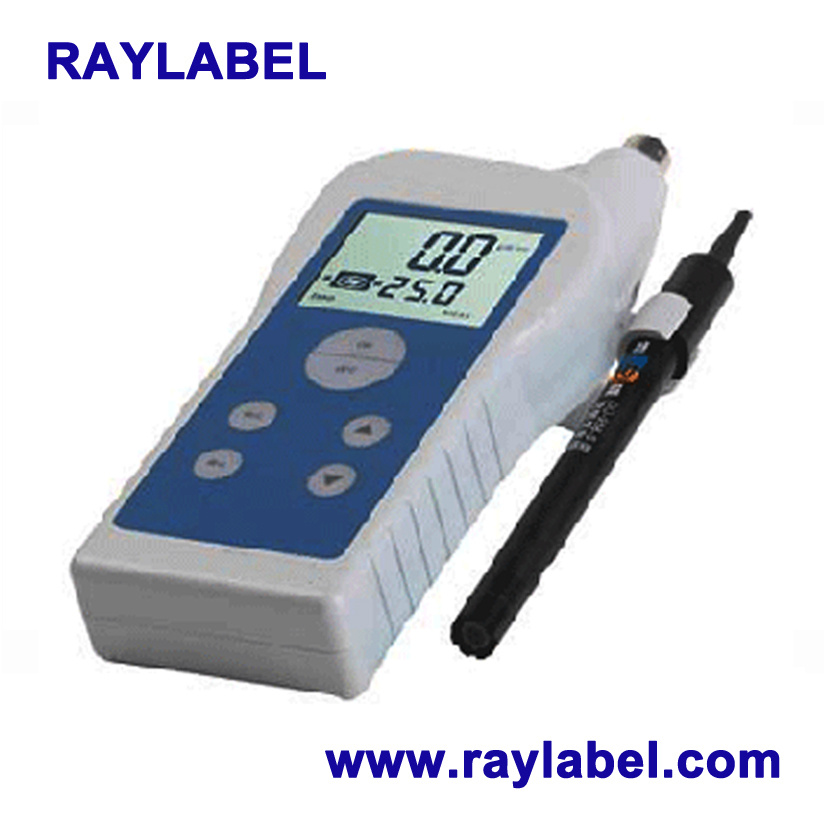

Laboratory Dissolved Oxygen Meter, oxygen analyzers.
Specifications:
1. Measuring range
Dissolved oxygen: (0.0~20.0)mg/L
Temperature: (0.0~40.0)° C
2. Accuracy:
Dissolved oxygen: ± 0.30 mg/L
Temperature: ± 0.5° C± 1 digit
3. Residual current<=0.10 mg/L
4. Response time<=45s(90%respond at 20° C)
5. Stability: (± 0.10mg/L )/3h
6. Salinity calibration range: (0.0~35.0)g/L
7. Temperature compensation range: Automatic(0.0~40.0)° C
8. Power supply: 2 alkaline batteries of model 5
9. Dimension(mm): 165× 75× 30
10. Net Weight: 0.3kg
11. Case outside serial No: WXS-A004-1
Package Size: 260X260X200mm
Gross Weight: 2kg.
Functions:
1. 3 1/2 LCD display(blue backlight selectable)
2. Automatic temperature compensation and quick response
3. It supports zero oxygen and full scale calibration
4. It is portable for easy use.
5. It is equipped with DO-958-S dissolved oxygen sensor.
Specifications
Model
Specifications | RAY-608 | RAY-607A |
| Parameters | Concentration/saturation/ °C | Concentration/ °C |
| Range | DO | 0.00 ~ 19.99mg/L | 0.0 ~ 20.0mg/L |
| DO Saturation | 0.0 ~ 199.9% | _ |
| Temperature | 0.0 ~ 40.0 °C |
| Accuracy | DO | ±0.50mg/L | ±0.30mg/L |
| DO Saturation | ±10%FS | _ |
| Temperature | ± 0.5 °C | ± 0.5 °C |
| Stability | (±0.10mg/L)/3h |
| Response Time | ≤45s ( 90% respond at 20°C ) |
| Residual Current | ≤0.10mg/L |
| Temperature Compensation | Automatic: 0 ~ 40 °C |
| Salinity Calibration | Yes | 0.0 ~ 35.0g /L |
| Zero offset /Full scale calibration | Yes |
| Barometric pressure | Yes | _ |
| Data Storage | 500 data with time-and-date stamp | _ |
| View, delete and print | Yes | _ |
| Display | Backlit LCD with operation indication | Backlit LCD |
| Under-voltage indication | Yes | _ |
| Output | RS-232 | _ |
| Software | 1.1DC | _ |
| Housing | IP65 | _ |
| Power | Four AA batteries | Two AA batteries |
| Dimension ( mm ), Weight( kg ) | 510×360×210 , 5 | 260×260×200 , 2 |
