Product Specifications
| Prod Model: |
PC-765 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Mode: |
16:9 |
| Brightness: |
450CD/M2 |
| Touch Screen: |
4-Wire/5-Wire Touch Panel |
| Core: |
Arm Cortex-A8 |
| OS: |
Windows CE 6.0 R3 / Linux 2.6.32 |
| Memory: |
256MB Flash ROM + 128MB Lpdr |
| Type: |
Laptop Screen |
| Screen Size: |
≤7" |
| Operating System: |
Windows |
| RAM Capacity: |
256MB |
| Graphics Card: |
Core Graphics |
| Processor Brand: |
Intel |
| Widescreen: |
Widescreen |
| Built-in Bluetooth: |
Built-in Bluetooth |
| Built-in 3G Module: |
Built-in 3G Module |
| Processor Type: |
Ti Omap3525 |
Product Description
Using industrial-grade embedded platform, the system is stable and reliable, it has rich interfaces.
Wireless communication, GPS navigation, fault detection, video acquisition and other functions, extensible to provide users with a powerful vehicle-mounted mobile multimedia information systems.
It can be widely used in personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and other fields.
Comply with IP64 Standard, dust & water-proof;
Powerful TI CPU;
3 × USB 2.0 interface;
Wide power voltage;
Built-in speaker;
Strong vibration resistance;
RS232× 3 / RS232× 2, RS485× 1.
Optional:
3G, Wi-Fi 802.11 b/g/n (built-in), RS485, Bluetooth (built-in).
Applications:
Information Display;
Digital Signage;
Advertising Terminal;
In-Home Control Device;
Smart Energy Application;
Security & Surveillance;
General Communication;
Distance Data Acquisition;
Navigation System.

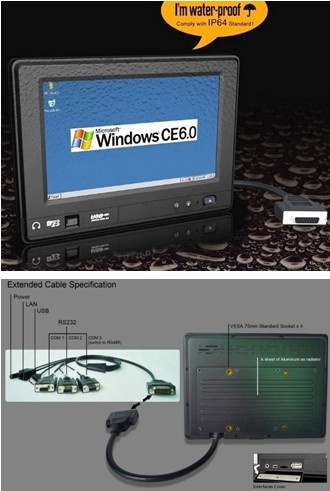

7" Embedded All In One PC with OS WinCE 6.0/Linux 2.6.32
Comply with IP64 Standard.
LCD Panel PC for Industrial Application.
All hardware and software can be adjusted to your requirements.
7" wide TFT LCD (16: 9)
High Brightness: 450CD/m2
800 X 480 resolutions
4-wire resistive touch panel
CPU: TI OMAP3525, 600MHz processor
CORE: ARM Cortex-A8
Memory: 256MB Flash ROM + 128MB LPDR
OS: Windows CE 6.0 R3 / Linux 2.6.32
EVC &. Net Framework 3.5
Support MPEG 1, 2, 4
LAN: Ethernet 10/100M (RJ45)
USB Host 2.0X2, USB Device 2.0 X 1
RS232× 3 / RS232× 2, RS485× 1
Micro SD (TF) card supports up to 8G
Keyboard or Mouse supports
GPS (external)
Ear phone slot× 1
Speaker (back)× 1
Power input: DC 9-24V
Power consumption: 8W
Size(LWD): 198× 146 × 35mm
Weight: 740g
