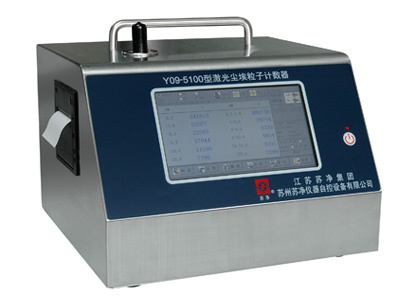

Laser Particle Counter with High Quality From China
Product Specifications
| Prod Model: |
Y09-5100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Dim: |
268*192*292 |
| Display: |
Touch Screen (LCD) |
| Weight: |
7.5 Kg |
| Max. Consumption: |
80W |
| Sample Time: |
0~999999s |
| Zero Count: |
≤10min |
| Location Labels: |
0~9999 |
| Type: |
Counter |
| Usage: |
Universal Counter |
| Function: |
Subtract Counter |
| Theory: |
Electronic |
Product Description
Y09-5100 laser particle counterFeatures: 1, 100 l / min sample volume. 2, AC and DC. 3, the touch screen control operation. 4, is shown with six-channel particle size, particle concentration display (pcs / m3). 5, automatic UCL calculation (for the 2010 version of GMP, 1998 version of GMP, ISO14644, etc. ). Y095100 laser particle counter (100L/min) unit used to measure the volume of air inside the clean environment of dust particles in size and number, can be directly detected cleanliness class A area, B-class area clean environment. Y09-5100 laser particle counter using a semiconductor laser light source, a large touch-screen display, small size, light weight, high detection precision, functionality simple operation, microprocessor control, storage, printing the measurement results, the test environment is very clean convenient. In addition, special software can be downloaded via computer to store data. Our products are widely used in medicine, optical, chemical, food, cosmetics, e-health, biological products, aerospace and other sectorsDetailed parameters: | Outside Dim | 268*192*292(Wide*High*Deep) |
| Display | Touch screen (Lcd) |
| Weight | 7.5 Kg |
| Max. Consumption | 80W |
| Power Source | DC16.8V(Built-in Lithium Battery) |
| Size Channels | 0.5, 1, 3, 5, 10, 25μm |
| Calculation | 95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter, grain / cubic feet) |
| Flow Rate | 100L/min (Imported Pump) |
| Sample Time | 0~999999s(Selectable) |
| Zero Count | ≤10min |
| Location Labels | 0~9999 |
| Printer | (Built-in Thermal Printer) |
| Alarm | ISO / own(Class) |
| Date Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Date Output | USB Port |
| Light Source | Laser Diode(30000 hours mean time between failures) |
| Maximum Rated Particle Concentration | 35000particles/L |
| Operating Time | 3 hours |
| Environmental | Temperature: 10~35ºC Humidity: 20%~75%RH Atmosphere Pressure: 86~106Kpa |
Suzhou Taomsun group has two companies. One is Suzhou Taomsun Scientific Instruments Co. Ltd. Another is Suzhou Taomsun Commerce and Trade Co. Ltd. We adhere to the needs of customers as the center to drive the sustained and healthy development of enterprises. We could provide great after-sale service.
Main products in Suzhou Taomsun Scientific Instruments Co. Ltd. Are: Cuvettes,; Piston pump; Ardware/tita/resin processing machinery parts; Grating and so on. We accept the mother grating to sample copy. We could provide glass processing and ceramic processing according to product drawings provided by customers. Suzhou Taomsun Commerce and Trade Co. Ltd. Committed to the research and sales of Automobile and motorcycle parts; The research of Electronics, sensors and software technology; The research of energy and environmental protection products and so on.
We cooperated widely with other enterprises in Automobile, Motorcycle parts and medical equipment industry over the years, we have accumulated a lot of experience; We will provide more professional and thoughtful service to satisfy the needs of customers. Providing comparative price and high quality products, so far, our company have cooperated with many customers from over 10 countries and gained good reputation at home and abroad.
