Suzhou Taomsun Commerce and Trade Co., Ltd. >> Portable Laser Particle Counter with High Senstivity

Portable Laser Particle Counter with High Senstivity

Portable Laser Particle Counter with High Senstivity
Supplier: Suzhou Taomsun Commerce and Trade Co., Ltd.
Price: US $ 10/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,EXW,others
contact supplier

Product Specifications

Prod Model: Y09-310
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outside Dim: 300*380*126 Mm³
Display: LCD
Weight: 10kg
Max.Consumption: 60W
Zero Count: ≤20min
Operating Time: 8 Hours
Temperature: 10oc-30oc
Humidity: 20%-75%Rh
Atmosphere Pressure: 86kpa-106kpa
Type: Counter
Usage: Universal Counter
Function: Subtract Counter
Theory: Electronic
Carry Mode: Synchronous Counter
Mechanism: Electronic

Product Description

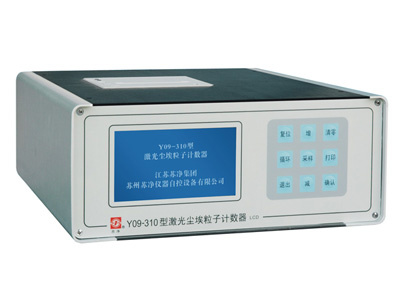

Y09-310
Portable Laser Particle Counter


The Model Y09310 Laser Particle Counter is used to detect the particles in the clean room.It can measure the class 10 to 300 k environment.The instrument uses the laser diode as the light source, LCD-panel displays, Imported big-flow-rate pump, Imported big-flow-rate filter, six different size ranges simultaneously.The built-in printer can print count results.The counter can store 1000 samples data. Software creates data files for viewing or export to EXCEL sheet to computer. The instrument is widely used in the fields of micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace and so on.

Specifications

Outside Dim300*380*126 mm³(Wide*Deep*High)
DisplayLCD
Weight10Kg
Max.Consumption60W
Power SourceAC 220V±10%,50HZ
Size Channels0.3, 0.5, 1, 3, 5, 10µm,
Display Particle Concentration(particles/m³)
Flow Rate28.3L/min (Imported Pump)
Sample Time1min (Selectable)
Zero Count≤20min
PrinterBuilt-in Thermal Printer
Alarm10, 100,1000 Class
Data Storage1000 Samples
Light SourceLaser Diode (30,000 hours Mean Time Between Failures)
Maximum Rated ParticleConcentration35000 particles/L  (≤0.5µm)
Operating Time8 hours
EnvironmentalTemperature:10ºC-30ºC
Humidity:20%-75%RH
Atmosphere Pressure:86Kpa-106Kpa
Optional EquipmentPC Special Software


Suzhou Taomsun group has two companies. One is Suzhou Taomsun Scientific Instruments Co. Ltd. Another is Suzhou Taomsun Commerce and Trade Co. Ltd. We adhere to the needs of customers as the center to drive the sustained and healthy development of enterprises. We could provide great after-sale service.

Main products in Suzhou Taomsun Scientific Instruments Co. Ltd. Are: Cuvettes,; Piston pump; Ardware/tita/resin processing machinery parts; Grating and so on. We accept the mother grating to sample copy. We could provide glass processing and ceramic processing according to product drawings provided by customers. Suzhou Taomsun Commerce and Trade Co. Ltd. Committed to the research and sales of Automobile and motorcycle parts; The research of Electronics, sensors and software technology; The research of energy and environmental protection products and so on.

We cooperated widely with other enterprises in Automobile, Motorcycle parts and medical equipment industry over the years, we have accumulated a lot of experience; We will provide more professional and thoughtful service to satisfy the needs of customers. Providing comparative price and high quality products, so far, our company have cooperated with many customers from over 10 countries and gained good reputation at home and abroad.
