Oil Particle Counter with High Quality From China

Name: Oil Particle Counter with High Quality From China
Brand: china-manufacturer-directory.com
SKU: 763688865
Availability: InStock
Rating: 4.5 (69 reviews)

Supplier:	Suzhou Taomsun Commerce and Trade Co., Ltd.
Price:	US $ 10/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,others

Product Specifications

Prod Model:	TMS-L01B-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Test Range:	0 ~ 9999999
Sampling Rate:	5 ~ 100ml / Min
Accuracy:	± 5%
Sampling Method:	Bottle
Ambient Temperature:	10 ~ 40 Oc
Power:	AC 220V

Product Description

Product description:

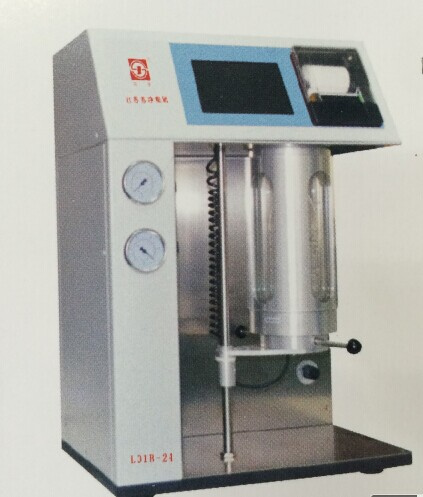

L01B24 oil particle counter is a net Group Jiangsu laser particle counter, based on a newly developed high-performance oil particle counter, in line with GB / T 18854-2002 (ISO11171-1999) and other national and international standards relevant regulations, the use of high-pressure pump, its pressure up to 1MPa, maximum viscosity up 1500cST.
Widely used in aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields, mainly on the hydraulic oil, lubricating oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil , engine oil, aviation kerosene, water-based hydraulic oil, oil for solid particle contamination detection. In addition, also on the organic liquid, the polymer solution was subjected to detection of insoluble particles.
Blockage principle, the use of imported semiconductor laser light source, long life, high stability; 24 detection channels, channel size arbitrarily set to detect powerful; imported precision syringe pump sampling control system, high precision sampling, sample volume arbitrarily set fixed. 7 inch true color large-screen LCD touch display, built-in calibration curves and powerful database management module, easy to operate; USB interface, data storage is not restricted, you can easily transfer the data saved to the computer which.
Features:
u imported semiconductor lasers and specific integrated driver chips, to ensure the stability of the sensor with high and long life;
u adopts imported precision syringe pump sampling system, sampling and high precision;
u positive / negative sample chamber device to achieve the high viscosity sample degassing and sample testing;
u 24 test channels, with the detection of particle size distribution and statistical functions;
u built GB/T14039, ISO4406, NAS1638, JBT9737.1, SAE749D, GJB420A, GJB420B, DL/T1096 other particulate contamination level standards and user-defined particle channel settings; built according to user requirements required standard;
u according to GB/T18854-2002 (ISO11171-1999, JJG066-95), ISO4402, latex standard instrument calibration, calibration, and can achieve different standards between the size of the automatic conversion;
u built a dedicated relational database software and can query the desired result, data storage, unrestricted, intuitive display clarity. Meanwhile histogram analysis with data, analyze data conveniently;
u large screen TFT LCD display, Chinese menu prompts graphics, touch-screen operation, support for Chinese input, user-friendly interactive interface, giving customers a good user experience;
u External with USB interface for direct access to data through the U disk. But also to the RS232 serial port to connect a computer, the computer will be acquired prior to the analysis of internal data check printing;
u can be equipped with high-pressure pump, pressure up 1MPa, maximum viscosity 1500cSt
u can be used with maximum 2000ml large volume sampler
Technical indicators:
u optics: Laser photoresist law, semiconductor laser light source
u Detection range: 1μm (ISO4402) or 4μm (ISO11171) ~ 400μm
u detection channels: 24 channels, particle size of 1μm (ISO4402) or 4μm (ISO11171) ~ 100μm range arbitrarily set by the user, the interval 0.1μm
u Sampling Method: Bottle
u Maximum sampling chamber vacuum: 0.08MPa
u Maximum sampling cabin pressure: 0.7MPa
u test sample viscosity: 2 ~ 600cSt
u test sample temperature: 0 ºC ~ 80 ºC
u Sampling rate: 5 ~ 100ml / min
u Test Range: 0 ~ 9999999
u Accuracy: ± 5% specified value
u repeatability: RSD <2% (particle count> 1,000 / ml, 5ml sample)
u sample volume accuracy: <± 1%
u Resolution: better than 10% (GBT18854-2002)
u Best detectable concentration: 0 ~ 18,000 / ml
u Display Operation: 7-inch large-screen color LCD touch screen
u Data Output: built-in printer, RS232 interface, USB interface;
u database software: Provides data statistics, query, analysis, and storage capabilities;
u Power: AC 220V ± 10%, 50Hz, <80W;
u Ambient temperature: 10 ~ 40 ºC
