Product Specifications
| Prod Model: |
RAY-2001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Details:

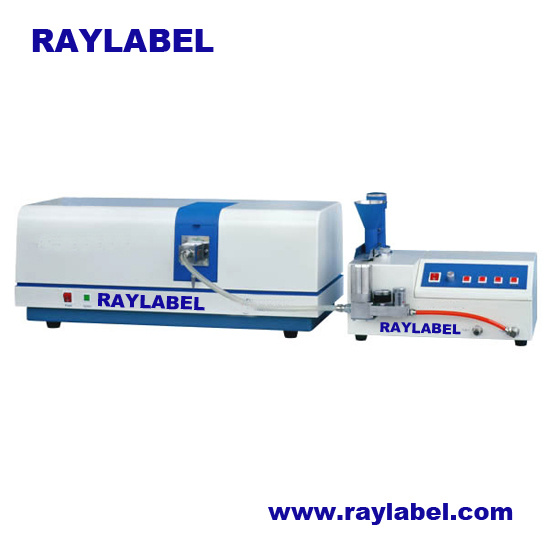

RAY-2001 is a unique laser particle analyzer in magnetic powder test. It adopts special sample preparation and test mode to make magnetic particles in separate, homogenous, scattered condition instead of the aggregation caused by magnetic force. It utilizes the property that the particles can cause laser diffraction. It adopts a series of advanced technology and technics such as imported semiconductor laser generator with high power, long service life and good monochromaticity; Large-size high precision photoelectric receiver array made by ASIC technique, multi-channel data transforming circuit and USB data transmitting lead to fast and precise test, easy operation and high repeatability. RAY-2001 ends the history that magnetic particle cannot be tested and is significant for the test and control of the magnetic products quality as well.
Technical Specification
Dry
Size range: 0.1-1000μ M
Sample adding method: Continual aerosol jet
Repeatability: ≤ 3% (CRM D50)
Accuracy: ≤ 3% (CRM D50)
Principle: Mie Scattering Theory
Laser: Imported semiconductor laser
Operating system: Windows XP/ Windows 7
Interface: RS232 or USB
Photocells: 80PCS, forward 72, lateral 8
Disperse medium: Compressed air or inert
Pressure: 0.1-0.8Mpa, adjustable
Air flowrate: 400-6000 L/min
Sample required: 5g-20g
Liquid:
Size range: 0.1-1000μ M
Repeatability: <1% (CRM D50)
Accuracy: <1% (CRM D50)
Principle: Mie Scattering Theory
Laser: Imported semiconductor laser
Ultrasonic Power: 50W
Tank Capacity: 500ml
Circulating Flowrate: 500-2500ml/min
Agitator Speed: 500-2500rpm
