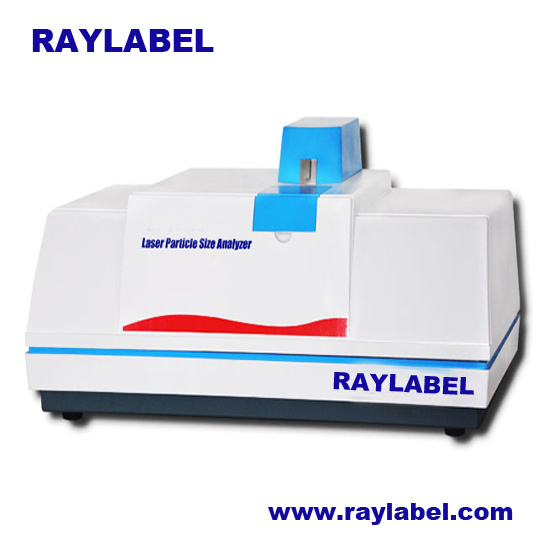

Product Specifications
| Prod Model: |
RAY-9300Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Size Range: 0.1-716um
Repeatability: <1%(Deviation of D50 in CRM)
Accuracy: <1%(Deviation of D50 in CRM)
Principle: Mie Scattering Theory
Laser source: Import semi-conductor laser
Operating System: Windows XP/ Window 7
Connecting Port: RS232 or USB
Photocell: Total84 PCS, forward 72, lateral 8, backward 4.
Ultrasonic Power: 50W
Tank Capacity: 500ml
Circulating Flow Rate: 500-2500ml/min
Agitator Speed: 500-2500rpm
Size Range: 0.1μ M-460μ M
Repeatability: < 1%(Deviation of D50 on CRM)
Accuracy: < 1%(Deviation of D50 on CRM)
Laser source: Import semi-conductor laser with lifetime 25000 hrs
Operating System: Windows XP/ Windows 7
Connecting Port: USB
Photocell: Total80 PCS, forward 68, lateral 8, backward 4
Ultrasonic Power: 50W
Tank Capacity: 500ml
Circulating Flow rate: 500-2500ml/min
Agitator Speed: 500-2500rpm
Voltage: 220V, 50/60Hz
Outer dimension: 800× 500× 350mm
Features
One-block design in plastic case, beautiful and show master elegance.
High automation, drain, cleaning, water supply are automatic controlled by computer. Operation is simplified to one spoon(feed sample) and one click(start test)
Newly designed automatic water supply module consists of water pump to draw water in low-level bucket or pool to circulating tank, overcome the influence of tap water with problems of water quality and temperature.
Adopts layout of forward, lateral and backward detectors to guarantee the effective capture of the scattered signal in order to widen the size range.
Obscuration automatically adjustment: When it is high, auto dilute, when too low, prompt adding sample to make the obscuration remain optimal state.
Applications
The production, application and research field for varied non-metallic powders, such as calcium carbonate, talcum, kaolin, zirconium silicate, wollastonite, graphite, silica powder, tourmaline, mica, barite, plaster, betonite, diamond, quartz, diatomite, feldspar, calamite, clay, garnet, vermiculite, Titanium white power, etc.
The production, application and research field for varied metallic powders, such as aluminum, iron, magnesium, molybdenum, copper, zinc, other rare metal and varied alloy, etc.
Other application such as pharmaceutical, agricultural pesticide, abrasive, food, cement, ceramic, soil, pigment, scientific research teaching, oil exploration, geological analysis, river sediment, electronic material, material of chemical industry, material of military industry, and battery material etc.
