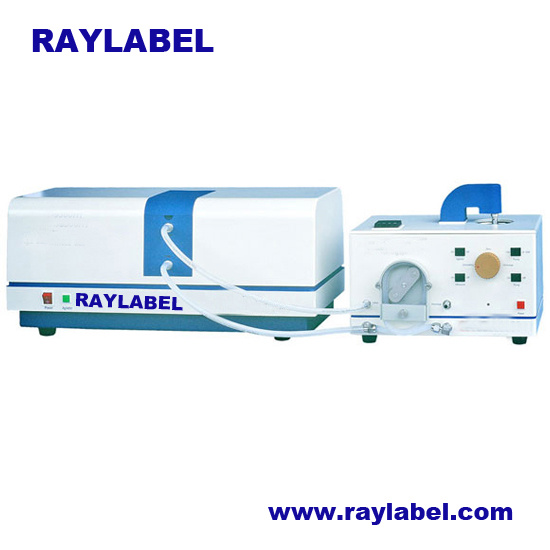

Laser Particle Size Analyzer (RAY-9300HT)

Product Specifications

Prod Model:	RAY-9300HT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

RAY-9300HT is the improvement on RAY-9300 laser particle size analyzer.
It introduces series of advanced technology and production techniques including imported high power semiconductor as laser generator with, long service life and good monochromaticity; Large-size high precision photoelectric model matrix made by specially-designed ASIC technique; Two sample feeding modes: Peristaltic circulation pump and small sample cell; Whole-course Mie theory algorithm, non-parameter algorithm and many distribution patterns, high precision data transform and circuit processing, etc., which lead to fast and precise test, easy operation and high repeatability. The technologies of laser, computer and photoelectric are incorporated. Ll; Whole-course Mie theory algorithm, non-parameter algorithm and many distribution patterns, high precision data transform and circuit processing, etc., which lead to fast and precise test, easy operation and high repeatability. The technologies of laser, computer and photoelectric are incorporated.

Specifications

Small Cell SystemSize Range: 0.1-716um
Sample adding method: Small cell assembly and circulating pump
Repeatability: <1%(Deviation of D50 in CRM)
Accuracy: <1%(Deviation of D50 in CRM)
Laser source: Import semi-conductor laser
Photocell: 80 PCS
Connecting Port: RS232 or USB
Testing Time: General 2-3min each time
Outstanding Features
Import semi-conductor laser runs for 25000 hours (4 times longer than common He-Ne laser) in wavelength 635nm and power 3mw.
Unique 84 photocells are highly sensitive and consistent so as to effectively capture even faintly scattered signal.
Two forms of sample feeding by circulation system and small cell assembly expand the applications. Small cell assembly suits costly, heavy metallic samples or samples not workable with water; Circulation system for metallic or non-metallic powders and many fields.
Process data by Mie scattering theory, inversion algorithm incorporates R-R, Free1 and Free2 distribution patterns in order to satisfy needs of various industries, fields and customers.
Passed calibration enables units to run with better accuracy and correlation.
Applications
The production, application and research field for a range of non-metallic powders, such as calcium carbonate, talcum, kaolin, zirconium silicate, wollastonite, graphite, silica powder, tourmaline, mica, barite, plaster, betonite, diamond, quartz, diatomite, feldspar, calamite, clay, garnet, vermiculite, Titanium white power, and more.
The production, application and research field for a range of metallic powders, such as aluminum, iron, magnesium, molybdenum, copper, zinc, other rare metal and varied alloy, and more.
Other applications such as pharmaceutical, agricultural pesticide, abrasive, food, cement, ceramic, soil, pigment, scientific research teaching, oil exploration, geological analysis, river sediment, electronic material, materials of chemical and military industry, battery material and more.
