Product Specifications
| Prod Model: |
RAY-9300S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

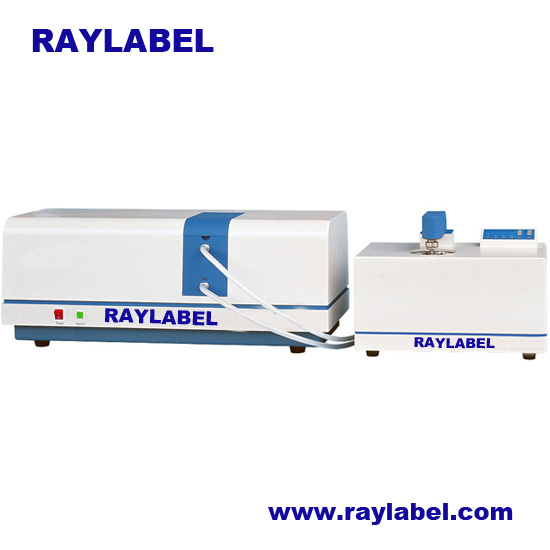

Product Description
It has many automatic features including light parth self-alignment, automatic sample feeding, automatic water supply and drainage, ultrasonic timer and water flow rate controller, etc. Functional software make it user-friendly. Imported semi-conductor laser provides larger power, longer service life as well as better monochromaticity; Specially designed large-sized high-sensitivity photoelectric detector is manufactered by technique of large scale integrated circuit; Sample feeding mode includes small sample cell and flow cell; Full Mie theory is applied and data is processed by several distribution models; Integrated circuit with highly precise data transmition and processing improves accuracy, repeatability and test speed.
Technical Specification
Size Range: 0.1-340um
Repeatability: <1%(Deviation of D50 in CRM)
Accuracy: <1%(Deviation of D50 in CRM)
Principle: Mie Scattering Theory
Laser source: Import semi-conductor laser
Operating System: Windows XP /Windows 7
Connecting Port: RS232 or USB
Photocell: 76PCS, forward 68, lateral 8
Ultrasonic Power: 50W
Tank Capacity: 500ml
Circulating Flow Rate: 500-2500ml/min
Agitator Speed: 500-2500rpm
Small cell capacity: 20ml
Small cell agitator speed: 120rpm
Voltage: 220V, 50/60Hz
Outer dimension: 760× 300× 300mm
Application
Non-metallic powders such as calcium carbonate, talcum powder, kaolin, zirconium silicate, wollastonite, graphite, silica powder, tourmaline, mica, barite, plaster, bentonite, diamond, quartz, diatomite, feldspar, calamite, clay, garnet, vermiculite, Titanium white power, etc.
Metallic powder such as aluminum powder, iron powder, magnesium powder, molybdenum powder, copper powder, zinc powder, other rare metal power and varied alloy powder, etc.
Pharmaceutical, agricultural pesticide, grinding particle, foodstuff, scientific research, teaching, cement, ceramic, glass, chemical industry, military industry, soil, pigment, oil exploration, geological analysis, river silt and electronic particle, etc.
Features
Advanced forming technique makes it compact in structure, graceful in appearance thus convenient in use and maintenance. Effective anti-interference technology improves electrical stability and reduces fault rate.
Two sample feeding modes: Small cell and flow cell (automatic circulating & dispersing system (ACDS) selectable for user with easy replacement.
Mie scattering and Fraunhoffer diffraction theories are applied in data processing, both includes R-R distribution and random distribution for selection.
Inside self-alignment system controlled by computer will search for lens focus automatically to improve accuracy; Separate ACDS make sample preparation more convenient.
Specially designed light receiver array with 76 detectors improves resolving power. User-friendly interface of test software make operation easy including results save, locating, comparison, merging, editing, delete, help, etc.
Feature I - Powerful Software
Test software can operate smoothly in any WindowsTM system with user-friendly interface.
Processes data with full Mie scattering theory. RI's of varied samples and mediums are available to ensure accuracy.
Save, find, delete, merger, compare test results before print out in multiple forms. Analysis processing in Excel is available.
Varied test data and figures are obtainable in one window in serial test, easy for the comparison of accuracy and repeatability.
Real-time monitoring can single out and delete abnormal test to make results reliable.
Full Mie scattering theory on data processing.
Integration of test and state: Integrate test steps in one window to make it convenient and efficient.
Automatic adjustment on light path by program: It will examine and correct light beam constantly to make it illuminate center of detector all along.
Test report will be processed and printed in Word, Excel and WordPad, etc.
Feature II Precise 3-D Self-Alignment System
