Product Specifications
| Prod Model: |
RAY-9300H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Details:

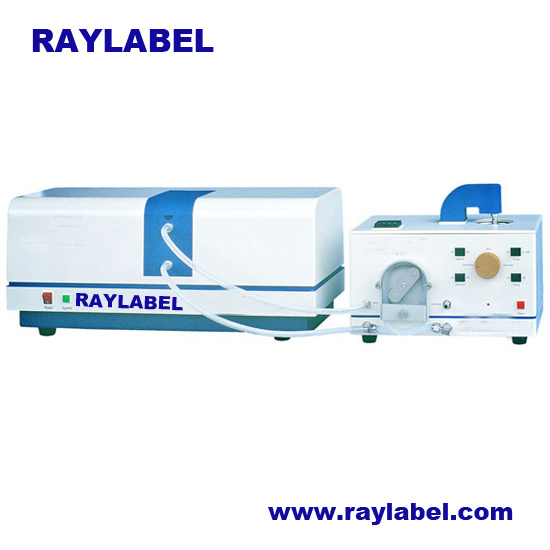

RAY-9300H is the improvement on RAY-9300 laser particle size analyzer.
It introduces series of advanced technology and production techniques including imported high power semiconductor as laser generator with, long service life and good monochromaticity; Large-size high precision photoelectric model matrix made by specially-designed ASIC technique; Two sample feeding modes: Peristaltic circulation pump and small sample cell; Whole-course Mie theory algorithm, non-parameter algorithm and many distribution patterns, high precision data transform and circuit processing, etc., which lead to fast and precise test, easy operation and high repeatability. The technologies of laser, computer and photoelectric are incorporated. Ll; Whole-course Mie theory algorithm, non-parameter algorithm and many distribution patterns, high precision data transform and circuit processing, etc., which lead to fast and precise test, easy operation and high repeatability. The technologies of laser, computer and photoelectric are incorporated.
Specifications
Small Cell SystemSize Range: 0.1-340μ M
Repeatability: <1%(Deviation of D50 in CRM)
Accuracy: <1%(Deviation of D50 in CRM)
Principle: Mie Scattering Theory
Laser source: Import semi-conductor laser
Operating System: Windows XP/ Windows 7
Connecting Port: RS232 or USB
Photocell: Fan-shaped, 76PCS, forward 68, lateral 8
Ultrasonic Power: 50W
Tank Capacity: 500ml
Circulating Flowrate: 1500ml/min
Agitator Speed: 320rpm
Small cell capacity: 20ml
Small cell agitator speed: 120rpm
Voltage: 220V, 50/60Hz
Outer dimension: 660× 280× 280mm
Raylabel Ltd., founded in 2005.
We are a professional manufactures laboratory equipments, medical apparatus and school furniture which have a very powerful R&D team and now becoming the professional Lab equipments total solution provider in this field. Our company has obtained ISO9001: 2000 and ISO13485: 2003 certificate of quality management system registration approval. Raylabel products show extremely long life span and stability in the function.
All the sale engineers from Raylabel Ltd., have strong professional experience. Some of them have been more than 15 years. Our company operates its business with the management philosophy of "customer first, service forever". We are proud of the supporting with our perfect quality of products and timely service systems. And we sell our products to all parts of the country and overseas.
Based on the global instrument market awareness and marketing strategies, Raylabel products are increasingly becoming excellent OEM supplier and partner, We will based in China to provide more advanced and high quality products and better service.
Our goal is to be an international lab equipments and school furniture supplier worthy of trust, and we are dedicated to benefiting our customers by minimizing their cost with reasonable prices and maximizing their profits with trouble free products.
Choose "Raylabel", Choose a Most Valuable Business Partner!
