Product Specifications
| Prod Model: |
RAY-2002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Details:

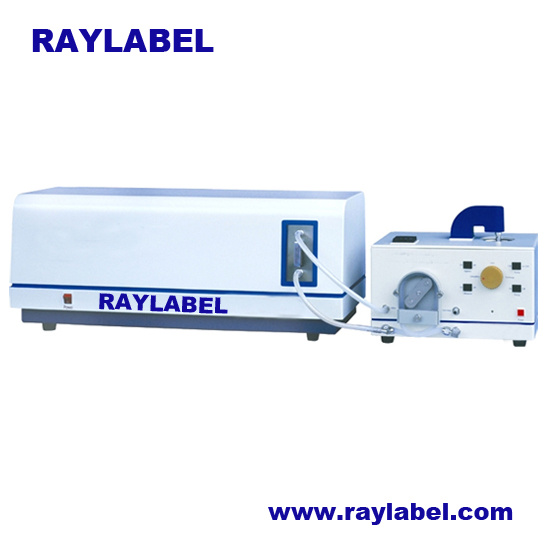

RAY-2002, for CWM particle test, is developed by National Project Technology Center of CWM and RAYLABEL. It utilizes the property that the CWM particles can cause laser diffraction and laser dispersion. Fast speed, easy operation and good repeatability, it is ideal particle size test instrument for CWM producer and user. It includes optical testing and signal transforming device (main engine) comprising laser generator, spatial filter, laser beam collimation and laser beam expansion system, Fourier lens, prism, multi-element photoelectric receiver and electric circuit system, etc; Sample preparation device comprising disperser, stirrer, circulation pump, sample pool, sample feeding pipeline, etc; Computer device comprising computer, printer, test software, etc. It gets particle diameter signal through laser dispersion created by optical testing device and sample preparation system, then transmit these signals to computer for CWM result. Besides, it can also test the particles of fairly coarse powder.
Specifications
Size Range: 1-2600μ M
Repeatability: <± 3% (CRM D50)
Accuracy: <± 3% (CRM D50)
Principle: Mie scattering theory
Laser source: Import semi-conductor laser
Operating system: Windows XP/ Windows 7
Connecting Port: RS232 or USB
Photocell: 76PCS, forward 68, lateral 8
Ultrasonic Power: 50W
Tank Capacity: 500ml or 2000ml
Circulating Flowrate: 1500ml/min
Agitator Speed: 320rpm
Voltage: 220V, 50/60Hz
Outer dimension: 810× 320× 300mm
