Shenzhen Xinxinda Communication Technology Co., Ltd. >> LC-FC Patch Cord SM SX

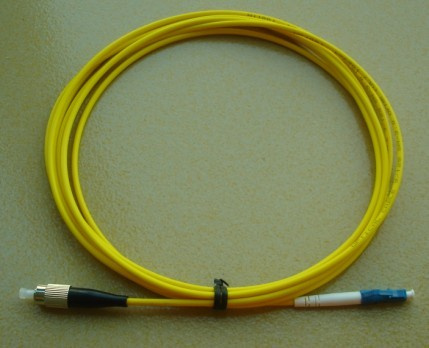

LC-FC Patch Cord SM SX

Name: LC-FC Patch Cord SM SX
Brand: china-manufacturer-directory.com
SKU: 708274765
Availability: InStock
Rating: 4.4 (78 reviews)

Supplier:	Shenzhen Xinxinda Communication Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	EST-OPC-24PSS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	0.5-100 M
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC

Product Description

PC, UPC or APC polishing
Single mode fiber: ITU - T G. 652 D
Multi mode fiber: ITU - T G. 651
Standard: Telcordia GR-326-CORE
Standard housing, ceramic ferrule
Cable diameter: 2.0mm or 3.0mm or 0.9mm
Fiber diameter: 9/125μ M, 62.5/125μ M or 50/125μ M
Insertion loss: SM Less than 0.3 dB MM Less than 0.3dB
Return loss: PC SM larger than 45 dB
UPC SM larger than 50dB
APC SM larger than 60dB
UPC MM larger than 20dB
Repeatability: Less than 0.2 dB
Changeability: Less than 0.1 dB
Operating temperature range: -40° C ~ 80° C
Storage temperature range: -40° C ~ 80° C
Tensile strenth: 100N
Min. Bending radius: 35mm.

Experienced Maker of Electronic Accessories
As a manufacturer with more than 12 years long history, Shenzhen Xin Xin Da Communication Technology specializes in telecommunication industry, making communication cables, RJ45 patch cord, LAN cables, CAT5E, CAT6, CAT6A Patch cord leads, HDMI cables, USB cables, audio cables, VGA cables, RG59 coaxial cables, and many kinds of network cables. We also offer telephone cables, patch panels, keystone jackets and other communication cable accessories.

Implementing Strict Quality Control Measures
Each product is designed and produced under ISO 9001: 2000-certified operations. Thus, all our products are compliant with RoHS and EIA/TIA-568A standards. We implement strict quality control measures, allowing our products to not only meet internal standards, but also industry standards.

Winning Global Customers' Trust
We have won the trust of global customers through the help of our outstanding R&D team, excellent sales marketing, high-quality production, prompt delivery and quick after-sales services. Moreover, all our products have found extensive applications in many famous brands, such as MODEM. Our products are mainly exported to the US, the UK, Southeast Asia and the Middle East. We ensure the excellent performance, stability, reliability, and reasonable price of our products.

Contact us today to begin sourcing.
