Product Specifications
Product Description
Benefits
High Activity LTS Catalysts
LTS-302 is high-copper catalysts based on oxides of copper, zinc and aluminum. The copper oxide is very finely dispersed resulting - after reduction - in a large, stable copper surface area and an inherently high activity. This has been demonstrated by industrial data through the years. It is the most widely used LTS catalyst in China market...
Mechanical Stability
LTS-302 is manufactured to ensure the highest possible crush strength, resulting in a low and stable pressure drop throughout the catalyst lifetime.
Protection against Sulphur Poisoning
The presence of free zinc oxide in the LTS-302 combined with an unsurpassed chemisorption capacity provides the catalysts with an outstanding tolerance towards sulphur poisoning.
High Operational Flexibility
LTS-302 offers a high flexibility with respect to operating conditions. Normal operating temperatures are 180-260Deg. C. The catalysts can operate at even lower inlet temperatures, but are often limited by the dew point of the process gas. The LTS catalyst bed inlet temperature must be 15-20Deg. C (25-35F) above the dew point. The below is recommended operation conditions:
Operation temp. Deg. C: 180-260
Pressure, Mpa: ≤5.0
Space velocity, h-1:≤3000
Steam/gas ratio: ≥0.35
Inlet S content: ≤0.1x10-6
Inlet Cl content: ≤0.03x10-6
Application
LTS-302 are used for conversion of CO in synthesis and hydrogen production process using coal, naphtha, natural gas and oil field gas as feed stock. Especially, LTS-302 are used for axial-radial low temperature conversion converter.
Physical and chemical characteristics:

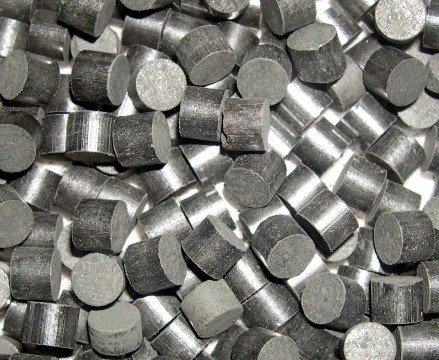

Form Tablets
Diamter: 5mm
Length: 4-6mm or 2-4mm.
Bulk density: 1.2-1.3kg/l
Av. Crush strength(side): 60-70N
CuO, wt%: 38-42
ZnO, wt%: 40-45
Al2O3, wt%: 8-10
Sun Chemical Technology Co., Ltd. (SUNCHEM) is a leading company of specialty chemicals and materials in China. We produce catalysts, adsorbents, tower packing, supports, offering customers not only the industry's finest product lines, but also the expert value-added services and unparalleled customer support they need to maximize operating efficiency and reduce overall cost.
Currently we are focuing on the following markets and products:
Syngas catalysts and adsorbents:
Feed Purification: Hydrodesulphurization catalysts, ZnO for Sulfur removal, MnO series for sulfur removal, Iron oxide series for sulfur removal, Chlorine removal adsorbent, Arsenic removal adsorbent, etc.
Pre-reforming catalyst, Primary reforming catalyst, secondary reforming catalyst, CO High(MID) Temperature shift catalyst, CO low temperature shift catalyst, Methanation catalyst, ammonia synthesis catalyst, methanol synthesis catalyst, Sulphuric acid catalyst, Claus Sulfur recovery catalyst, HF removal adsorbent, etc.
Chemical Process catalysts:
Methylamine production catalyst, Methylchloride production catalyst, Aniline production catalyst, Ethylamine production catalyst, catalyst, Methylaniline production catalyst, Hydrogenation catalyst for Hydrogen peroxide production, etc.
Tower packing and Supports:
We provide a variety of shapes and sizes and materials of construction to bring to your company the specific tower packing for your needs. The shapes of the tower packing are in the form of rings, saddles, and spheres. We can provide materials that are ceramic, porous, plastic, or steel to meet the specifications of any application that you might have. Our tower packing has been used in every type of refining process by every major oil company and is well proven.
