Low Voltage Control Draw-out Power Distribution Cabinet

Product Specifications

Product Description

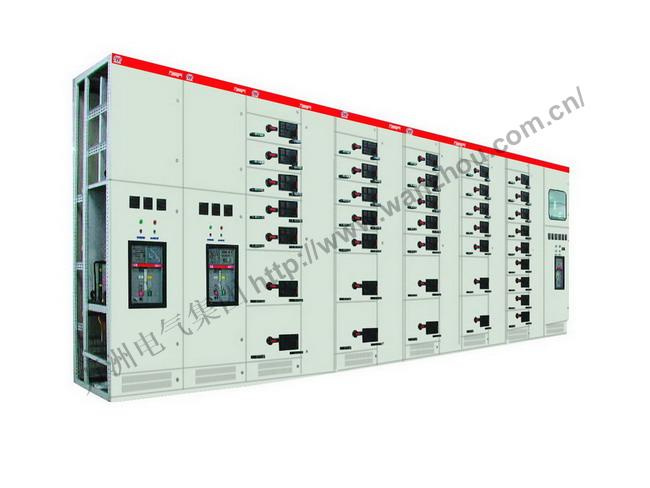

WMNS low voltage control panel, draw-out power distribution cabinet,switch cabinet

General

WMNS is modularized, multi-functional low voltage distribution switchgear, which is applicable to metallurgy, petroleum, chemical industrial, industrial and mining enterprises and all the situations high reliable low voltage system, distribution system and motor control system are needed.

WMNS series low voltage switchgear can meet your need completely. It is applicable to all low voltage systems of the current 4000A or below.

Standards

Execution standard: IEC60439-1, GB7251.1.

Advantages

1. Panel board with compact structure, save the volume of cabinet body.

2. The panel board can be arranged back to back

3. The panel board body can meet the requirements of earthquake resistance, oscillation resistance and shock resistance

4. It can be built up into different modes freely, such as fixed type and draw-out type

5. Corresponding protection class of the panel board body could be designed according to the different requirements of the job and environment.

6. Select and using standard component entirely, convenient for the design of project planner.

7. The arrangement of power distribution circuit is economic

8. With anti electric arc design

9. Convenient for equipment upgrade and inprovement

10. The panel board is free of maintenance to the most extent.

11. Safe for the opeartor

12. Reliable enough and high flexibility.

Installation dimension

1. The fixed cabinet:

     Width: 600mm, 800mm, 1000mm

     Depth: 600mm, 800mm, 1000mm

2. The withdrawable cabinet:

     Width: 600mm, 800mm, 900mm, 1000mm(600mm not suggested)

     Depth: 600mm, 800mm, 1000mm(600mm not suggested)

3. The fixed isolating cabinet

     Width: 600mm, 900mm, 1000mm

     Depth: 600mm, 800mm, 1000mm

Technical Data
