Product Specifications
| Prod Model: |
Vacuum Pipe LNG vancuum hose |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Tube Mm: |
20 25 32 38 45 57 76 89 108 |
| Outer Tube Mm: |
76 89 89 108 108 114 133 159 168 |
| Design Temperature: |
-270 C |
| Work Medium: |
Lo2\Ln2\Lar\Lh2\Lhe\LNG |
Product Description

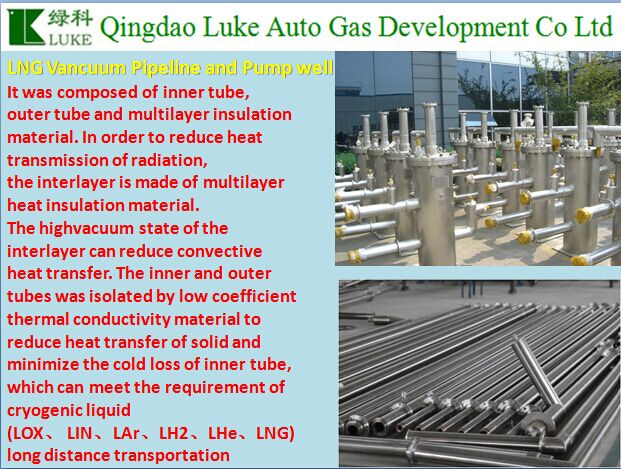

It was composed of inner tube, outer tube and multilayer insulation material. In order to reduce heat transmission of radiation,
the interlayer is made of multilayer heat insulation material. The highvacuum state of the interlayer can reduce convective heat transfer.
The inner and outer tubes was isolated by low coefficient thermal conductivity material to reduce heat transfer of solid and minimize the
cold loss of inner tube, which can meet the requirement of cryogenic liquid(LOX,LIN,LAr,LH2,LHe,LNG) long distance transportation
Design parameter
The shrinkage rate of inner tube is 0.3% under the temperature of liquid nitrogen. About hard tube, the compensator should be set on
inner tube or outer tube.
Vacuum multilayer insulated cryogenic globe valve, check valve, emergency block valve and safety systems are installed on the pipe line.
Plug type vacuum connector joint has the characteristics of the least heat leakage, no frost and condensation.
Customized special structure form of vacuum insulated pipe system regarding to special needs of customer can be made.
Material Selection
The inner and outer tubes are special high quality stainless steel tube (SUS304)
The interlayer takes advantage of the advanced and special multi-layer insulation material and gas adsorbent.
Low thermal conductivity
Connection Type
Plug type connection (known as vacuum flange connection)
Welded connection (the vacuum tube joints which are made by section was welded at site)
Installation
Section made, vacuum flange or welding connection is made between different sections which make installation and maintenance easy.
Professional installation and debugging
Short installation time, low installation work, installation cost reduction
Technical parameters |
pipe specification
(mm) |
Nominal diameter |
DN15 |
DN20 |
DN25 |
DN32 |
DN40 |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
Inner tube |
20 |
25 |
32 |
38 |
45 |
57 |
76 |
89 |
108 |
133 |
159 |
Outer tube |
76 |
89 |
89 |
108 |
108 |
114 |
133 |
159 |
168 |
219 |
219 |
Work pressure |
Design according to the needs of customer |
Design temperature |
-270ºC |
Work medium |
LO2,LN2,LAr,LH2,LHe,LNG |
Material of inner and outer tubes |
1Cr18Ni9Ti,SUS304 |
Construction type |
multi-layer vacuum insulation |
Interlayer pressure |
<0.004Pa |
Leakage rate |
<2×10-10PaL/S |
Strength test of inner tube |
According to work pressure |
Air-tight test |
According to work pressure |
Design basis |
According to related regulations and Q/XLT012008
According to layout of cryogenic liquid pipeline system which our customer provide
|
|
