Product Description

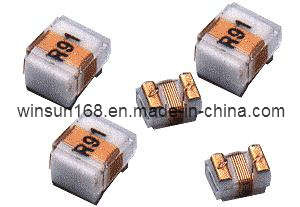

Made in shenzhen Wire Wound Chip Ceramic Inductor
Feature:
Inductance range: 1.2nH~8.2uH
Size: 0402~1812
Small chip suitable for surface mounting
High Q value and high self-resonant frequency
With ceramic material
Tight inductance tolerance and stable inductance
At high frequency
APPLICATION:
High frequency circuit in telecommunication And other equipments
Mobile phones such as GSM, CDMA, PDC, etc.
Bluetooth, W-LAN
|
External Dimensions |
|
1005 [0402] |
|
1608 [0603] |
|
2012 [0805] |
|
2520 [1008] |
|
3216 [1206] |
|
3225 [1210] |
|
4532 [1812] |
|
Series |
A Max. |
B Max. |
C Max. |
D Typ. |
E Typ. |
F Typ. |
H Typ. |
I Typ. |
J Typ. |
|
SDWL1005C-S |
1.19 |
0.64 |
0.66 |
0.20 |
0.523 |
0.215 |
0.65 |
0.35 |
0.50 |
|
SDWL1608C-S |
1.80 |
1.12 |
1.02 |
0.38 |
0.76 |
0.33 |
1.02 |
0.64 |
0.64 |
|
SDWL2012C-S |
2.29 |
1.73 |
1.55 |
0.51 |
1.27 |
0.50 |
1.78 |
1.02 |
0.76 |
|
SDWL2520C-S |
2.92 |
2.79 |
2.29 |
0.51 |
2.00 |
0.50 |
2.54 |
1.02 |
1.27 |
|
SDWL3216C-S |
3.56 |
2.16 |
1.52 |
0.51 |
1.60 |
0.50 |
1.93 |
1.02 |
1.78 |
|
SDWL3225C-S |
3.65 |
2.95 |
2.70 |
0.51 |
2.10 |
0.50 |
3.02 |
1.02 |
1.78 |
|
SDWL4532C-S |
4.95 |
3.81 |
3.43 |
1.78 |
2.90 |
0.58 |
3.05 |
1.14 |
3.00 |
