Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Halogen Free: |
Non-Toxic, High Efficient, Smoke Suppression, Envi |
| Application: |
Halogen Free Flame Retardant |
| Delivery Time: |
3 Weeks |
| Coating: |
Stearic Acid, Silane |
| Quality: |
Superior Grade |
| Usage: |
Industrial Alkali |
| Ionization Capacity: |
Weak Alkali |
| Solubleness: |
Slightly Soluble Alkali |
| Appearance: |
Solid |
| Classification: |
Magnesium Hydroxide |
| Grade Standard: |
Industrial Grade |
Product Description
Flame-retardant mechanism
1: Decomposition of magnesium hydroxide absorb heat, which is beneficial to reduce the flame combustion temperature.
2: The decomposition of magnesium hydroxide create water, it's not only the coolant, also reduce the smoke density as thinner.
3: The decomposition of magnesium hydroxide created MgO, which specific surface is quite big, easy absorb smoke, and cover the combustible material.

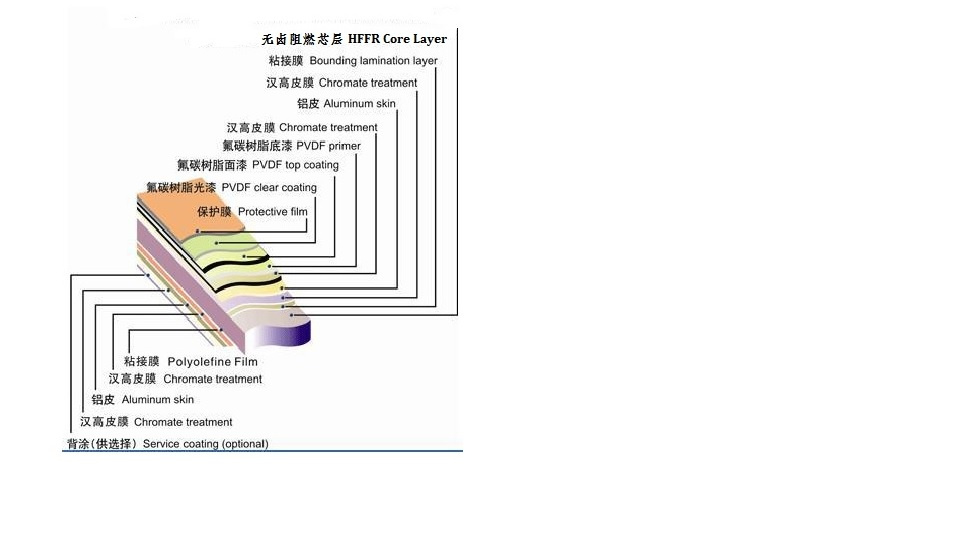

The HFFR aluminum composite panel produced by our magnesium hydroxide meets UL94-V-0,
UBC 26-9, BS 476, DIN 4102 Class B1, and ASTM E 119.
And MDH (Magnesium Hydroxide) price is more competitive than ATH(Aluminum Hydroxide) price.
Reduce the ACP cost a lot, and MDH is better than ATH in the following point:
1: MDH and ATH are similar when heated, both create water and metal oxide. Water absorbs heat, and metal oxide covers the surface. But MgO absorb more acid.
2: MDH degrade temperature is 330 centigrade higher 100centigrade than ATH, So MDH is better for plastics with high temperature.
3: MDH dissociation energy is 1.37kJ/g, ATH dissociation energy is 1.17KJ/g, and thermal capacity higher 17% also, so MDH have higher flame retardant efficiency.
4: MDH with more carbonization, reduce more smoke.
5: MDH particle is soft than ATH, so less abration during compounding process, it's good for compounding machine.
|
Data Sheet |
|
Grade |
XK-325 |
XK-1250 |
XK-5000 |
XK-10000 |
|
Mg(OH)2 content % |
94 |
94 |
94 |
94 |
|
Moisture content % |
0.5 |
0.5 |
0.5 |
0.5 |
|
Loss on ignition % |
31 |
31 |
31 |
31 |
Particle Size |
D97 |
45 |
18 |
6.5 |
3 |
|
D90 |
38 |
15 |
5.5 |
2 |
|
D50 |
15 |
4 |
2 |
1.5 |
|
Specific surface area (m 2 /g) |
≤6 |
≤6 |
≤8 |
≤8 |
|
Density (g/cm 3 ) |
2.3 |
2.3 |
2.3 |
2.3 |
|
Oil absorption (ml/100g) |
50 |
55 |
55 |
55 |
|
Whiteness (R45T%) |
90 |
92 |
95 |
96 |
|
Specific conductivity (uS/cm) |
350 |
350 |
350 |
350 |
|
Stearic acid % |
0.5~2 (will be coated according to customer demands)
Grade: XK-1250SA, XK-5000SA, XK-10000SA |
|
Silane % |
0.5~1 (will be coated according to customer demands)
Grade: XK-1250S, XK-5000S, XK-10000S |
KMT Industrial (HK) Limited was set up to export magnesium hydroxide (brucite powders), and magnesium oxide (calcined brucite).
Our factory was located in Dandong Liaoning. We can produce 325mesh, 800mesh, 1250mesh, 2500mesh, 5000mesh, and 10000mesh magnesium hydroxide(brucite powder).
325 mesh magnesium oxide (Calcined brucite).
We can pre-treat our brucite powders by stearic acid, silane or anyother additives according to our customer demands.
Our brucite powders has been exported to Turkey, Korea, UAE, Thailand, Australia to produce HFFR aluminum composite panel, flame retardant cable and etc.
