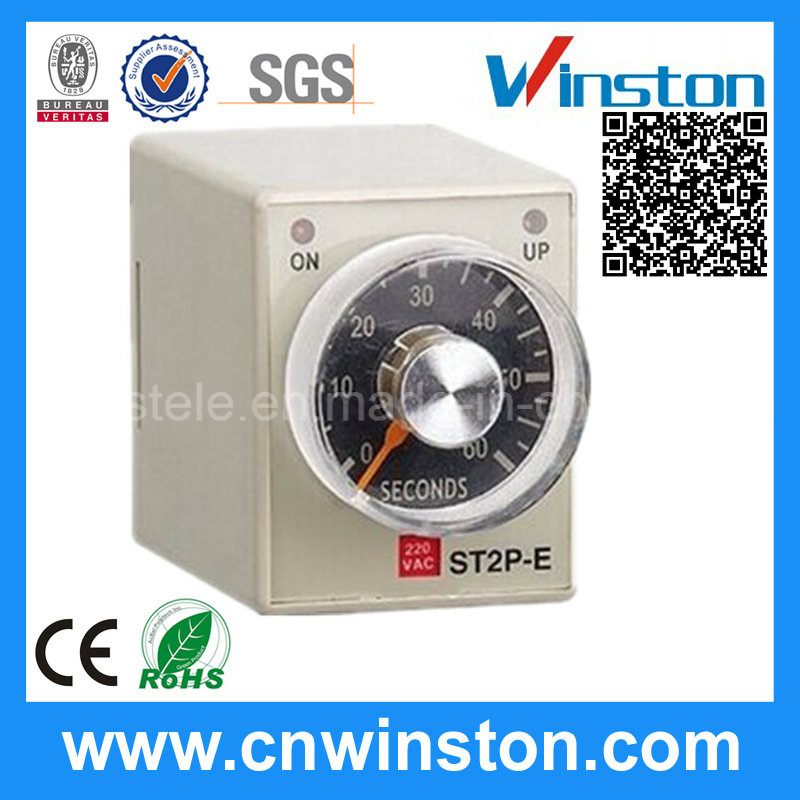

Mechanical Electronic Programmable Multi Range Time Delay Relay with CE

Name: Mechanical Electronic Programmable Multi Range Time Delay Relay with CE
Brand: china-manufacturer-directory.com
SKU: 771158745
Availability: InStock
Rating: 4.8 (144 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 3.5-6.5/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ST2P
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Brand:	Winston
Consumed Power:	2VAC
Rated Voltage:	220VAC
Quality:	2 Year Warranty
Dimensions(mm):	504057.5
Weight:	100g
OEM/ODM:	Yes
Condition:	Original New
Ambient Huminity:	48~85%Rh
Reset Time:	0.1 Sec Max

Product Description

Product Description

1.Voltage:AC12-380V 50/60Hz DC12-24V
2.Operation:On-delay with inst. contact
3.Matched socket:PF083A(E)
4.Led display

Technique parameter

Type		ST2P
Dimensions		50HX40WX57.5D
Mounting	Surface (-N)	PF083A(E)
Socket	Flush(-Y)	US-08 P3G-08
Full timing range		Sec:1,3,6,10,12,30,60 Min:3,6,10,12,30,60 HR:3,6,10,12,30
Rated voltage		AC(V):12,24,110,220,50/60Hz DC(V):12-24(50/60Hz)
Indicator operation		ON-UP operation
O/P Contact	Model	ST2P-E
	Time limit 1c
	Time limit 2c	5A
	Instantaneous 1c
Service life	Mechanical	5X10000000 times
Service life	Electrical	100000 times
Accuracy	Repeat error	±2% max
	Setting error	±5% max
	Voltage error	±5% max
	Temperature error	±2% max
Reset time		0.5 sec max
Consumed power		2VA
Ambient temperature		-10~+55
Ambient humidity		35-85% RH
Weight		100g

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery

Yueqing Winston Electric Co., Ltd.Is not only an exporting company, but also a professional manufacturer in China.We have our own production base.The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices.

Our company is located in Wenzhou - the Electric Capital of China.We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products.

We are an ISO9001:2000 certified company.We have obtained many certificates, such as CCC, CE, CB, GS and RoHS.Stability, expertise and technological innovation are the core stones of our business strategy.

Aiming at reliable product quality and the highest customer satisfaction, we are consistently deepening enterprise inner reform and fully carry out a quality guarantee system.With special cultivation of employees, high investment on production facilities and R&D as well as a wide range of products, we advocate "technology innovation, business honesty and trust and quality first" as our basic principle, trying to develop into a world-class electrical manufacturer with constant efforts.
