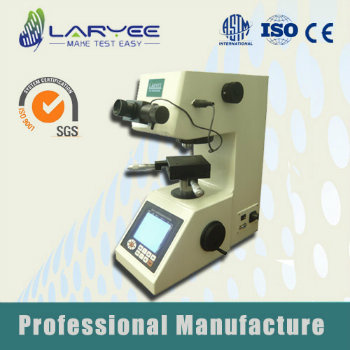

Metals Vickers Hardness Tester (HVM-1000, 2000)

Name: Metals Vickers Hardness Tester (HVM-1000, 2000)
Brand: china-manufacturer-directory.com
SKU: 696629962
Availability: InStock
Rating: 4.3 (108 reviews)

Supplier:	Laryee Technology Co., Ltd.
Price:	US $ 6000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HVM1000, 2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Vickers Hardness Tester
Test Load:	0.098n (10gf)-19.6n (2000gf)
Leus/Indenter Switch:	Motorized Turret
Carriage Control:	Automatic Loading and Unloading Method
Load Holding Time:	5-60 Second
Measuring Microscope:	Min Measuring Unit: 0.0625um
Type:	Vickers Hardness Tester
Measuring Range:	HV
Application:	Metal
Standard:	ASTM

Product Description

Vicker's Hardness Tester is a testing instrument to measure the hardness value of all kinds of metals according to Vicker's hardness principle ASTM E92 and ISO 6507. They are widely used in metallurgy, forging, casting, hardness steel and nonferrous metals industries, as well as in the laboratories, universities, college and scientific research institutes.
Digital Vickers Hardness Tester With Motorized Turret
1.With Large LCD display.
2.With motorized turret, the indenter and objectives can be shifted automatically.
3.Due to the excellent combination between the indenter and pressure sensor, the transitive error of test force is reduced.
4.With large size test table, X-Y test table(100x100mm,stroke 25x25mm) and other accessories will be supplied if required.
5.Measure the Vickers/Knoop hardness values(HV/HK) from HV0.3 to HV10 and HK0.3 to HK10.Select
the test force directly.
6.With function of automatic exchanging hardness scales (HB, HRC, HRA, HRB, HRN,HRT).
7.The CCD image automatically measuring software may be equipped if the user optional required.
8.With built-in thermo-sensitive printer.
9.All information such as diagonal lines length of indentation, hardness values, data statistics and
hardness exchange values, etc are displayed on the LCD screen.
10.With the thin film keyboard, various technical data can be inputted in. Press the START key,the whole
test procedure can be carried out automatically.

Specification

Model	HVM-1000	HVM-2000
Test load	0.098N (10gf), 0.246N (25gf), 0.49N (50gf), 0.98N (100gf), 1.96N (200gf), 2.94N (300gf), 4.90N (500gf), 9.80N (1000gf)	0.098N (10gf), 0.246N (25gf), 0.49N (50gf), 0.98N (100gf), 1.96N (200gf), 2.94N (300gf), 4.90N (500gf), 9.80N (1000gf) 19.6N (2000gf)
Leus/indenter switch	Motorized Turret	Motorized Turret
Carriage control	Automatic loading and unloading method	Automatic loading and unloading method
Magnification of microscope	For measurement: 400X (Object lens 40x , eyepiece 10x)
Magnification of microscope	For observation:200X (object lens 20x, eyepiece 10x)
Load holding time	5-60 second	5-60 second
Measuring microscope	Min measuring unit: 0.0625um	Min measuring unit: 0.0625um
Out put	Installed with innner-printer and RS232 interface
Standard accessories	Vickers Indenter, Objective (20X,40X), Digital Micro lens (10X), XY-stage test table, Thin specimen test holder, Fork-shaped test holder, Fine wire test holder, Adjustable screw, Lever, Micro Vickers hardness block, RS232 line

HVM1000/2000 Metals Vickers Hardness Tester
