Product Specifications
Prod Model: |
WH-E21 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Resolution Ration: |
8 Dots/Mm(384 Dots/Line) |
Printing Method: |
Direct Thermal Line Printing |
Printing Speed: |
70mm/Sec |
Usage: |
Receipt Printer |
Style: |
Black and White |
Interface Type: |
RS232/Ttl,Parallel |
Type: |
Thermal |
Max. Paper Size: |
57mm*42mm |

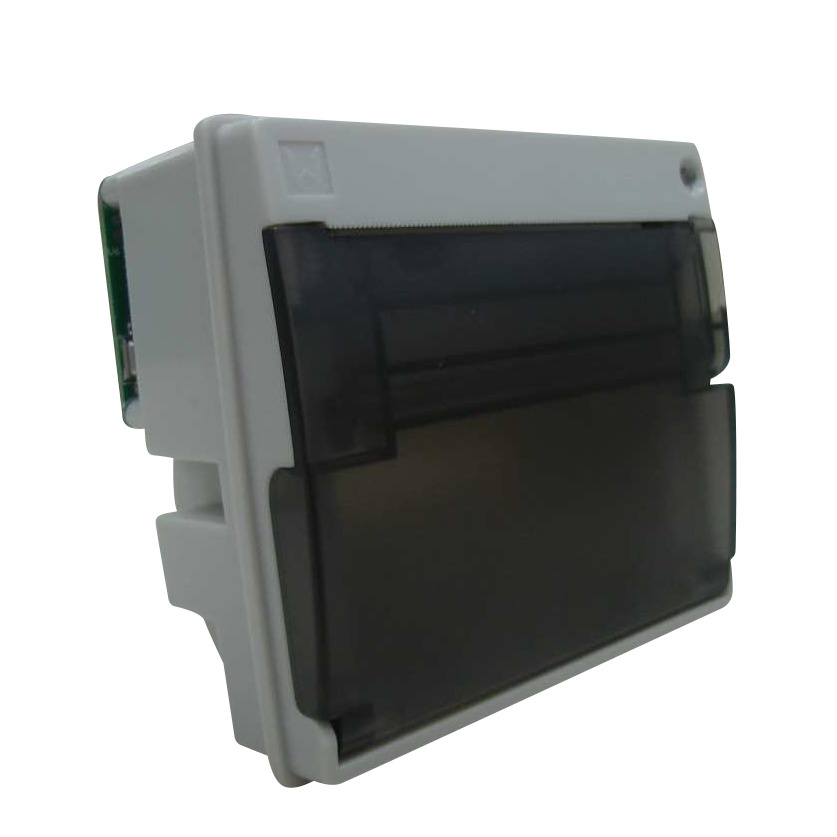

Product Description
Very silent printing thru direct thermal printing method
Paper end sensors function and self-motion memory printing function
With high speed 70mm/sec(when the utilization rate is 25%. )
Abundant figure/curves/characters print function
Add coordinate curve printing function
Easier paper loading (key ejecting type)
Item:Specification
Printing method:Direct thermal line printing
Paper out detection:paper end sensors function
Paper loading way easy paper loading
Paper width:57 mm
Print width:48 mm
Resolution ration:8 dots/mm(384 dots/line)
Life of printing head:6, 000, 000 character lines
Printing speed:70mm/sec(when the utilization rate is 25%. )
Character per line:24
Character size:12x24dots
Chinese character library:GB2312, 24x24dots
Outline dimension(WxHxD mm) :80mmx74.7mmx46.2mm
Installation dimension(WxH mm):76+0.5mm(W)x72+0.5mm(H)
Inlaid deepness:33.7mm
Paper supplied:Thermal roll paper (57mm wide, 42mmø )
Interface Serial:RS-232C
Input Power:Printer head DC8V 15W, control panel DC5V, 300MA
Operating temperature:5° C ~ 50° C
Storage temperature:-20° C ~ 60° C
Operating humidity:10° C ~ 80° C
Storage humidity:10° C ~ 90° C
