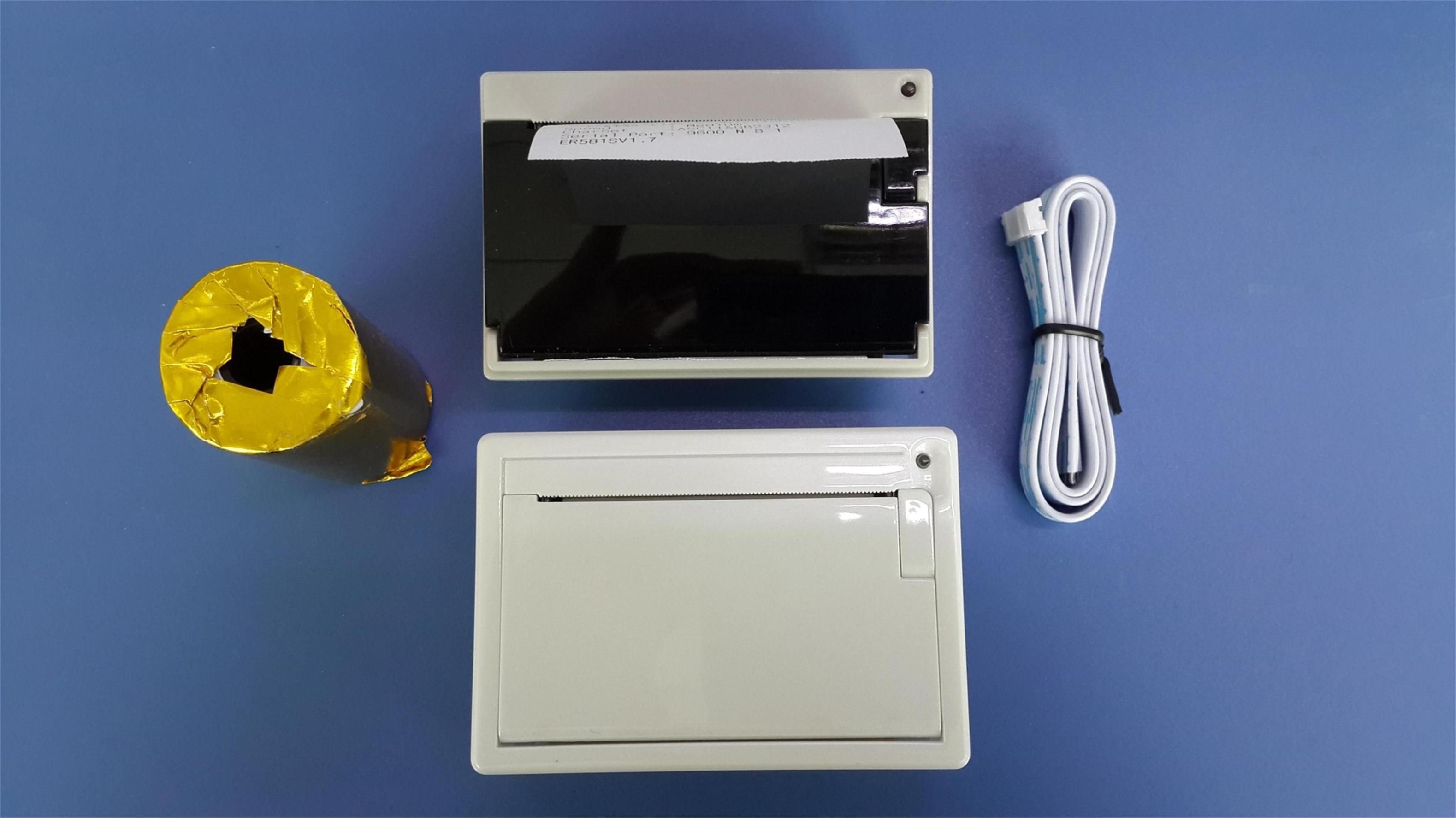

Mini Panel Thermal Printer

Product Specifications

Prod Model:	WH-E27 Serial port
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Printing Method:	Direct Thermal Line Printing
Paper Out Detection:	PE Sensors
Paper Loading Way:	Easy Paper Loading
Resolution Ratio:	8 Dots/Mm (384 Dots/Line)
Life Of Print Head:	6,000,000 Character Lines
Print Speed:	60mm/S
Character:	8X16dots, or 12X24dots
Outline Dimension(Wxhxd Mm):	81.9mmx56.5mmx34.7mm
Input Power:	DC 5~8.5V, 15W
Paper Supplied:	57mm Width, 30mm Diameter
Usage:	Receipt Printer
Style:	Black and White
Type:	Thermal
Interface Type:	Serial Port
Max. Paper Size:	57mm

Product Description

Beijing Bright Technology Development Co, Ltd. was established in 1998. It is a high technology manufacturer which is specialized in research, design, production and sales of Micro printers. The Headquarter is in Shangdi information industry base(Brilliant International), zhong guan cun Beijing, which is located in the key Science and Technology Park. We also have professional direct selling service network in Beijing, Shanghai, Hangzhou, Shenzhen, Guangzhou and other big cities in China. The production capacity of Micro printer is more than 500, 000 sets per year, and the flexible production capacity could be 1000, 000; Its overall business scale can rank the industry forefront and fully meet the growing demand for domestic and foreign customers.

WH-E26/E27
Item	Specification
Printing method	Direct thermal line printing
Paper out detection	Paper end sensors function
Paper loading way	Easy paper loading
Paper width	57 mm
Print width	48 mm
Resolution ratio	8 dots/mm(384 dots/line)
life of printing head	6,000,000 character lines
Printing speed	60mm/sec (when the character ratio is 25%)
Character	8x16dots, or12x24dots
Chinese character library	GB2312(16x16dots), GB2312(24x24dots)
outline dimension(WxHxD mm)	82mmx56.7mmx34.7mm/81.9mmx56.5mmx34.7mm
Installation dimension(WxH mm)	(77+0.5)mmx(51.7+0.5)mm/(76.9+0.5)mm+(51.5+0.5)mm
Paper supplied	Thermal paper roll (57mm wide, 30mmø )
Interface	Mini USB/ Serial RS-232C/TTL
Input Power	DC 5~8.5V, 15W
Operating temperature	5° C~ 50° C
Storage temperature	-20° C~ 60° C
Operating humidity	10% ~ 80%
Storage humidity	10% ~ 90%
