Product Specifications
| Prod Model: |
WH-U05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printing Method: |
Direct Thermal Line Printing |
| Usage: |
Receipt Printer |
| Style: |
Black and White |
| Interface Type: |
RS232/Ttl |
| Type: |
Thermal |
| Max. Paper Size: |
80mm*100mm |

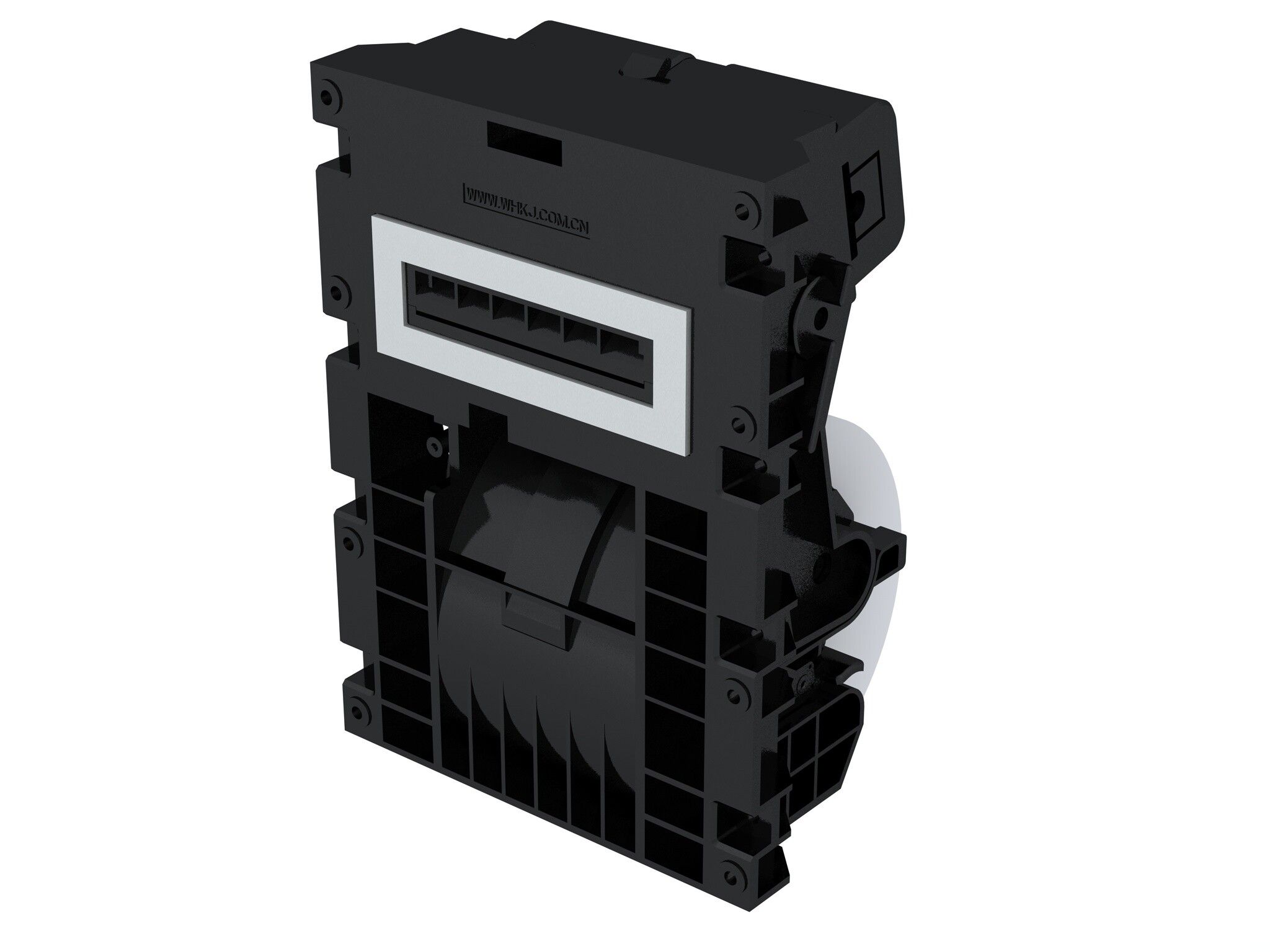

Product Description
Stylish,delicate and elegant appearance
Support RS232,TTL
Abundant interfaces,strong expansibility
Auto cutter
Two paper loading ways,easy paper loading,big paper roll
Waterproof,dustproof
Compatible with ESC/POS command set ,more characters style setting commands
Printing method: direct thermal line printing
Paper out detection: paper end sensors function
Paper loading way: easy paper loading
Paper width: 80mm
Print width: 72mm
Resolution ration: 8 dots/mm (576 dots/line)
Lifespan of printing head: 6,000,000 character lines
Printing speed: 100mm/s (when the character ration is 25%)
Character: 6*8 dots, 8*16 dots, 12*24 dots
Chinese character library: GB2312 (24*24 dots), GB2312 (16*16 dots)
Input power: DC12V-24V, 30W or 24V, 30W
Outline dimension: 170mm*145.4mm*79mm
Paper supply: 80mm wide, 100mmØ
Interface: serial RS232C/TTL
Operating temperature: 5C° - 50°C
Storage temperature: -20C° - 60°C
Operating humidity: 10%-80%
Storage humidity: 10%-90%
