Product Specifications
| Prod Model: |
TC-S1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
400~470MHz |
| Memory Channels: |
16 |
| Channel Spacing: |
25/12.5kHz |
| Working Mode: |
Co-Channelsordis-Channelssimplex |
| Battery: |
1500mAh |
| Dimensions(Hxwxd)(Mm): |
100mm×60mm×34mm |
| Weight: |
Appro 200g |
| Power Output: |
2-3W |
| Low Battery Warning Function: |
Yes |
| Time Out Timer: |
Yes |
| Condition: |
New |
| Function: |
Signal Transmitting Device |
| Type: |
Transmitter |
Product Description

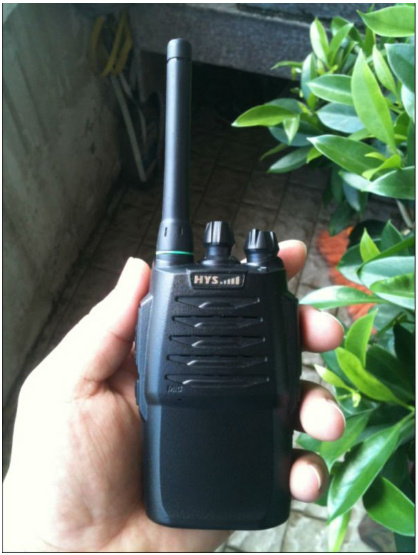

Main Function of two way radio TC-S1
Frequency range: 400~470MHz
Output power: 3W
Operating temperate: -20° C~+50° C
Operating voltage: DC 3.6V [Li-ion]
Simple model, no display, no keypad, new designed style, exquisite
Appearance, sell at a low price, with common functions:
Push to talk function, monitor function
Voice prompt
Time out timer
Battery save function
Low battery warning function
Built-in QT and DQT
General Specifications
Frequency Range UHF: 400-470MHz
Memory Channels 16
Channel Spacing 25/12.5KHz
Working Mode Co-channelsordis-channelssimplex
Voltage DC7.2V
Battery 1000mAh/1500mAh/1800mAh/2200mAh(Li-ion)
Average batteryl fe(at5/5/90dutycyclewithbatterysaver) 1500mAh(Li-ion)About15hrs
Frequency Stability ± 2.5ppm
Operating Temperature -20° C/+50° C
AntennaI mpedance 50Ω
Dimensions(HxWxD)(mm)(W/Battery, W/oAntenna) 100mm× 60mm× 34mm
Weight Appro 200g
Transmitter
Power Output 2-3W
Maximum Deviation ≤ 5KHz
Audio Distortion ≤ 3%
Modulation Characteristic +3dB— -3dB
Adjacent Channel Power ≥ 65dB
Spurious Radiation ≤ 7.5μ W
Occupied Bandwidth ≤ 16KHz
S/N 40/34dB
Receiver
RF Sensitivity <0.2μ V
Audio Distortion ≤ 3%
Audio Response +2dB— -10dB
Adjacent Channel Selectivity ≥ 60dB
Intermodulation Rejection ≥ 60dB
Spurious Response ≥ 60dB
Block Characteristic ≥ 85dB
S/N 40/34dB
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
