Yueqing Winston Electric Co., Ltd. >> Mini PCB Enclosed Power Automotive Electromagnetic Relay with CE

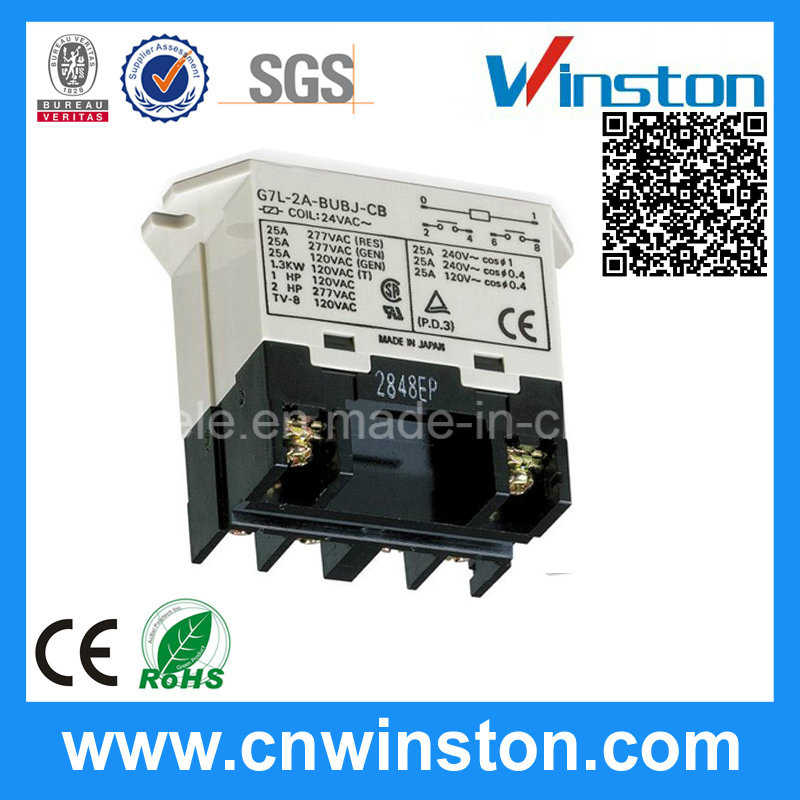

Mini PCB Enclosed Power Automotive Electromagnetic Relay with CE

Name: Mini PCB Enclosed Power Automotive Electromagnetic Relay with CE
Brand: China-Manufacturer-Directory.com
SKU: 771680485
Availability: InStock
Rating: 4.9 (109 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 1.2-2.8/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	G7L-1A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand:	Winston
Contact Capacity:	25A 220VAC
Ambient Temperature:	-55~+100 Degree
Weight:	100g
Relay Size:	68.5mm33.5mm47mm
Mounting Form:	PCB & Direct Oupling
Contact Form:	1h
OEM/ODM:	Yes
Condition:	Original New

Product Description

Model: JQX-30F(T93)
Specifications

1) Types: G7L-1A
2) Contact capacity: 30A, 250V AC
3) Coil voltage: 6 - 110V DC, 6 - 220V AC
4) Coil power:
a) DC: ≤0.9W
b) AC: ≤1.7 ¨C 2.5VA
5) Pick-up:
a) DC: ≤75%
b) AC: ≤80%
6) Drop-out:
a) DC: ≥10%
b) AC: ≥30%
7) Electrical life: 100,000 times
8) Mechanical life: 10,000,000 times
9) Operating temperature: -40 - +50°C
10) Used for air conditioners

Coil Versions

CLASSIFICATION		MINI ELECTROMAGETIC RELAY SERIES
MODEL		G7L-1A	G7L-2A
DIMMENSIONS(mm)		68.533.547	68.533.547
ONTACT FORM		1H	2H
ONTACT CAPACITY		25A 220VAC
COIL VOLTAGE	DC	6V~110V
	AC	6V~220V
COIL POWER		DC:≤1.9W AC:1.7~2.5VA
PICK-UP		≤75%
DROP-OUT		≥15%
CONTACT RESISTANCE		≤50mΩ
INSULATION RESISTANCE		≥100MΩ
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000V ms
	BETWEEN COIL &CONTACTS	1500v ms
MOUNTUBG FORM		Welding
OPERATING TEMPERATURE		-40°c~+55°c
WEIGHT		About 100g
SIMILAR PRODUCTS		----	----
FITTED SOCKET		----

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery

Yueqing Winston Electric Co., Ltd.Is not only an exporting company, but also a professional manufacturer in China.We have our own production base.The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices.

Our company is located in Wenzhou - the Electric Capital of China.We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products.

We are an ISO9001:2000 certified company.We have obtained many certificates, such as CCC, CE, CB, GS and RoHS.Stability, expertise and technological innovation are the core stones of our business strategy.

Aiming at reliable product quality and the highest customer satisfaction, we are consistently deepening enterprise inner reform and fully carry out a quality guarantee system.With special cultivation of employees, high investment on production facilities and R&D as well as a wide range of products, we advocate "technology innovation, business honesty and trust and quality first" as our basic principle, trying to develop into a world-class electrical manufacturer with constant efforts.
