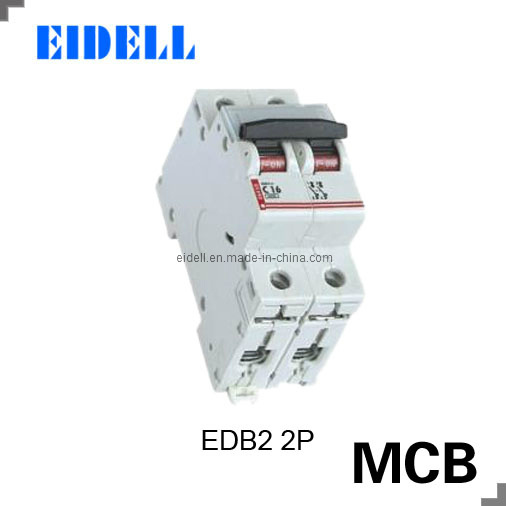

Miniature Circuit Breaker (MCB) (EDB2)

Name: Miniature Circuit Breaker (MCB) (EDB2)
Brand: China-Manufacturer-Directory.com
SKU: 706645475
Availability: InStock
Rating: 4.7 (129 reviews)

Supplier:	Yueqing Eidell Electric Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	240/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	EDB2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Circuit Breaker
Function:	Overcurrent Protection
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CE
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Structure:	Moulded Case Circuit Breaker
Installation:	DIN Rail

Product Description

EDB2
1. Application
EDB2 is mainly suitable for overload and short circuit protection. It is especially used for illumination and distribution in industry and commerce, etc. It has pleasing outlook & high breaking capacity, reliable performance, high inflammable resistance and shock resistance for long service life. It is within the circuit of AC 50/60Hz, rated voltage of single pole up to 240V, two, three or four poles up to 415V. It can also be used for an un frequent change over of the circuit and illumination under normal condition. It conforms with the standards of IEC60898.

Type			EDB2
Pole			1P	2P, 3P, 4P
Rated current (A)			1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
Rated voltage(V)			230	400
Type of instantaneous release			B, C, D
Rated short circuit breaking capacity Icn(kA)			10
Life (times)	1-32A	Electric life	8000
		Mechanical life	6000
		Operation frequency	240 times per hour
	40-63A	Electric life	8000
		Mechanical life	6000
		Operation frequency	120 times per hour
