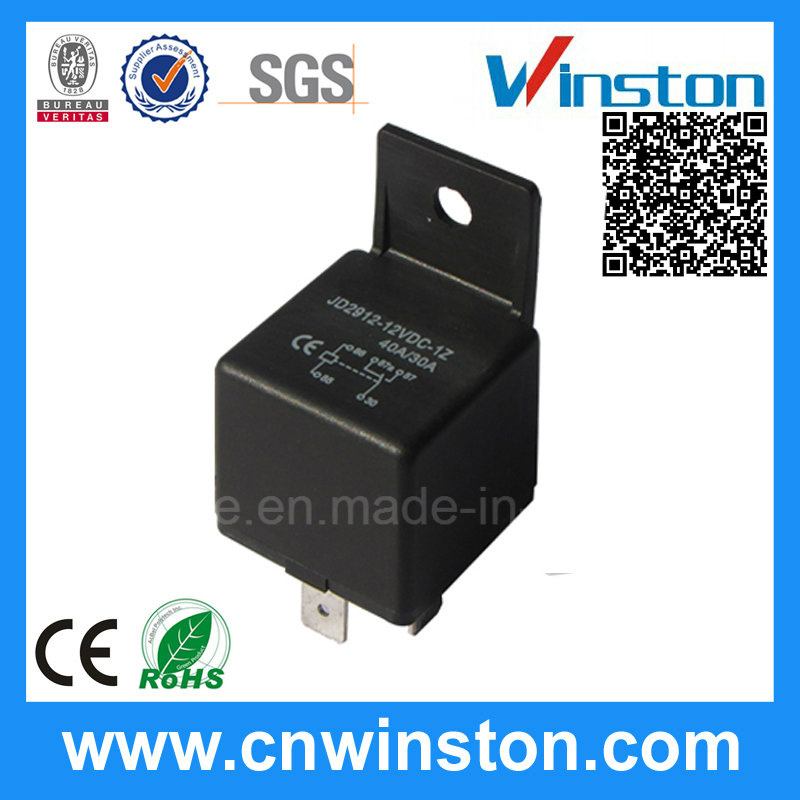

Miniature Plastic Shell Plug in Automotive Electromagnetic Relay with CE

Name: Miniature Plastic Shell Plug in Automotive Electromagnetic Relay with CE
Brand: China-Manufacturer-Directory.com
SKU: 771587865
Availability: InStock
Rating: 4.4 (35 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 0.8-2.6/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	JD1912F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand:	Winston
Contact Form:	1z 1h
Contact Capacity:	10A, 20A, 30A
Weight:	38g
Dimensions(mm):	2830.525
Mounting Form:	Screw Mounting & Socket
Manufacturer:	OEM
Condition:	Original New

Product Description

Specifications:

1.100% brand new and high quality
2.Type: electromagnetic relay
3.Power:12V 80A
4.Fixture style: snap-in
5.Pin Length: 12.5mm
6.Pin number:5
7.Colour: Black
8.Rated Load:12V 80A
9.Size: Miniature
10.Contact Material : AgSnO2
11.Coil Power Consumption : 1.6W~1.8W
12.Contact Form:NO,NC,SPDT

Technical parameters

Initial Insulation Resistance

100MΩ, 500VDC

Dielectric Strength

Between coil and Contacts	750VAC 1min
Between open contacts	500VAC 1min

Operate time(at nomi.Volt)

Max: 12ms

Release time(at nomi.Volt)

Max: 10 ms

Temperature rise(In at nomi.Volt)

Max: 60ºC

Temperature

-40ºC~+85ºC

Shock Resistance

stability	98m/s2
intensity	980m/s2

Vibration Resistance

Double oscillation amplitude:1.5mm 10~55Hz

Humidity

35%~85%RH

Temperature

-40% +85ºC

Termination

PCB And Momentary connection leading-out terminal

Unit weigth

Construction

Sealed IP67 And No Sealed IP67

Coil Parameter
1.6W

Nominal Voltage VDC	Action voltageVDC	Drop-out Voltage VDC	Max voltageVDC	Coil Resistance Ω
6	4.2	0.6	7.2	20±10%
9	6.3	0.9	10.8	45±10%
12	8.4	1.2	14.4	80±10%
24	16.8	2.4	28.8	320±10%
36	25.2	3.6	43.2	720±10%
48	33.6	4.8	57.6

1.8W

Nominal Voltage VDC	Action voltageVDC	Drop-out Voltage VDC	Max voltageVDC	Coil Resistance Ω
6	4.2	0.6	7.2	23±10%
9	6.3	0.9	10.8	51±10%
12	8.4	1.2	14.4	90±10%
24	16.8	2.4	28.8	360±10%
36	25.2	3.6	43.2	810±10%
48	33.6	4.8	57.6

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
