Mining Excavator 36ton with 1.6m3 Bucket

Name: Mining Excavator 36ton with 1.6m3 Bucket
Brand: china-manufacturer-directory.com
SKU: 737660985
Availability: InStock
Rating: 4.6 (41 reviews)

Supplier:	Shanghai YingXin World Machinery Co., Ltd.
Price:	US $ 160000-180000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	W2360
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mining Excavator:	Big Size Excavator
Engine Brand:	Isuzu
Engine Power:	190kw
Hydraulic Pump:	Kawasaki
Operation Weight:	36on
Type:	Crawler Excavator
Size:	Large-Scale
Certification:	ISO9001: 2000
Condition:	New

Product Description

mining excavator

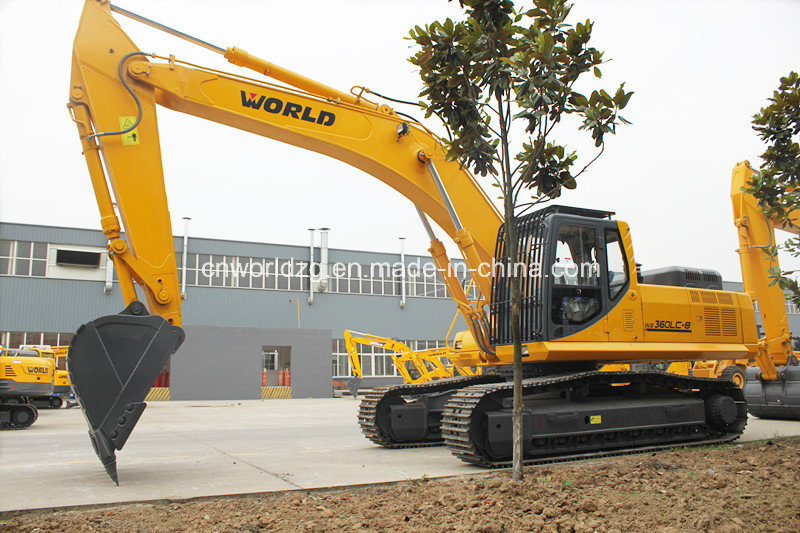

W2360 is a large size excavator with 1.6 cubic meter bucket and the operation weight is 36ton. W2360 excavator adopts the famous American original Cummins engine which can supply a strong power as 186kw. Rexroth brand hydraulic pump, main valve and travel motor ensure the strong hydraulic power. Both the upper and under frames are reinforced to provide more stability and durability. A steel safety guard is added to the cabin which makes the W2360 excavator better to work in mining.

Specifications:

Working Specifications
Operating weight	36000kg
Bucket capacity	1.6CBM
Max. breakout force
(1)Bucket digging force	183KN
(2)Arm digging force	154kn
Max. digging height	10105mm
Max. dumping clearance	7101mm
Max. digging depth	6581mm
Max. vertical wall digging depth	5785mm
Max. digging reach	11055mm
Min. front swing radius	3405mm
Max. pulling force	350KN
Max. travel speed(double modes)	4.5kw/h
Max. grade ability	70%

Overall dimensions
Length(with bucket on ground)	11138mm
Width(600mm crawler shoes )	3190mm
Bucket width	1300mm
Ground length (in transportation)	11138mm
Height(To the top of the boom)	3212mm
Height(To the top of the cab)	3184mm
Counter weight ground clearance	1225mm
Track gauge	2590mm
Tail swing radius	3405mm
Min. ground clearance	535mm
Rotating platform width	3164mm
Counter weight height	2284mm
Crawler teeth thickness	36mm
Reach from swing center to tail	3405mm
Crawler ground length	4030mm
Standard arm length	3187mm
overall length of crawler	4934mm
