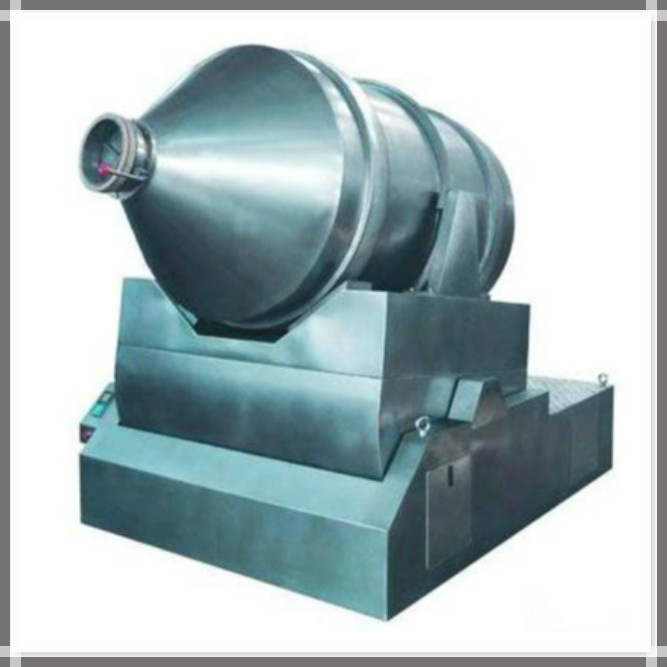

Mixing Machinery (two-dimension motion mixer)
Product Specifications
| Prod Model: |
CMP2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50-30000L |
| Working: |
Convection Mixer |
| Application: |
Granules |
| Additional Capabilities: |
Coating |
| Mixer Type: |
Two Dimensional Mixer |
Product Description
Mixing Machinery (two-dimension motion mixer)
1 Working principle:
Two-dimensional mixer mainly consists of rotating drum, swinging frame and rack. Rotating drum, which is fixed on swinging frame, is supported by four roller wheels and fixed by two stopping wheels. Two of the four roller wheels are driving wheels which are driven by rotating dynamic system and make the drum rotating. Swinging frame is driven by one group of crank rocker structure which is fixed on rack; and the swinging frame is fixed on rack.
2 Technical specifications:
| Model | Working capacity
(L) | Working capacity
(kg) | Dimension (mm) | Powder (kw) |
| Width | Length | Height | rotating | Swinging |
| CMP2-100 | 50 | 40 | 900 | 1000 | 1500 | 1.1 | 0.75 |
| CMP2-300 | 150 | 75 | 1100 | 1400 | 1650 | 1.1 | 0.75 |
| CMP2-600 | 300 | 150 | 1300 | 1800 | 1850 | 1.5 | 1.1 |
| CMP2-800 | 400 | 200 | 1400 | 1970 | 2100 | 1.5 | 1.1 |
| CMP2-1000 | 500 | 350 | 1500 | 2040 | 2180 | 2.2 | 1.5 |
| CMP2-1500 | 750 | 550 | 1800 | 2340 | 2280 | 3 | 1.5 |
| CMP2-2000 | 1000 | 750 | 2000 | 2540 | 2440 | 3 | 2.2 |
| CMP2-2500 | 1250 | 950 | 2200 | 2760 | 2600 | 4 | 2.2 |
| CMP2-3000 | 1500 | 1100 | 2400 | 2960 | 2640 | 5 | 4 |
| CMP2-5000 | 2500 | 1800 | 2700 | 3530 | 3000 | 7.5 | 5.5 |
| CMP2-10000 | 5000 | 3000 | 3200 | 4240 | 4000 | 15 | 11 |
| CMP2-12000 | 6000 | 4000 | 3400 | 4860 | 4200 | 15 | 11 |
| CMP2-15000 | 7500 | 5000 | 3500 | 5000 | 4400 | 18.5 | 15 |
Chemix Machinery Co., Ltd. Focuses on powder & liquid solution and is an entity manufacturing enterprise which combines design, R&D, sales and manufacturing. Our main products: Powder equipment (including mixer, screener, conveyor, crusher, packer, dryer, granulator), liquid equipment (including lab equipment, mixer, disperser, emulsifier, grinder, pump, filler, filter), steel fabrication (including steel structure/frame, hopper/tank) and complete production line.
Chemix Machinery Co., Ltd. Has blessed geographical advantage. Our manufacturing base is located in Jiangqiao Industrial Park, Jiading District, Shanghai. It is 10 km from Hongqiao Airport (Hongqiao Railway Station), 20 km from Pudong Airport, 30 km from Shanghai South Railway Station and Shanghai Railway Station and 80 km from Shanghai's largest import & export port (Yang Shan Deepwater Port).
80% of the company's sales come from abroad, our machinery are mainly exported to over 50 countries: South Korea, Myanmar, Japan, Saudi Arabia, Thailand, Iran, India, Jordan, Vietnam, Afghanistan, the United Arab Emirates, the Philippines, Cambodia, Qatar, Kuwait, Lebanon, Turkey, Singapore, Syria, Iraq, Israel, Pakistan, Malaysia, Bangladesh, Sri Lanka, Indonesia, Poland, Denmark, Germany, France, the Netherlands, Switzerland and Greece, Great Britain, Russia, Portugal, Spain, Italy, Cuba, the United States, Mexico, Canada, Jamaica, Costa Rica, Brazil, Peru, Chile, Argentina, Venezuela, New Zealand, Australia, Egypt, South Africa, Kenya, Libya, Morocco, Tunisia, Zambia, Zimbabwe, Nigeria, Tanzania, Algeria, Madagascar.
Customers' demand with endless variations is our drive for excellence; "excellent quality, perfect service" is our ultimate goal; With trust and support from industry colleagues, friends and customers, we will go further, fly higher.
