Product Specifications
| Hole Shape: |
Square |
| Material: |
Monel Wire |
Product Description
We can supply other special material wire mesh products, such as: Nickel wire mesh(Ni-Cr), monel wire mesh, titanium wire mesh and so on.
Weave Pattern: Plain weave, twill weave, dutch weave.
This 400 grade monel is highly resistant to the corrosive action of acids, alkalides and salt water. It has the same strength of mild steel.

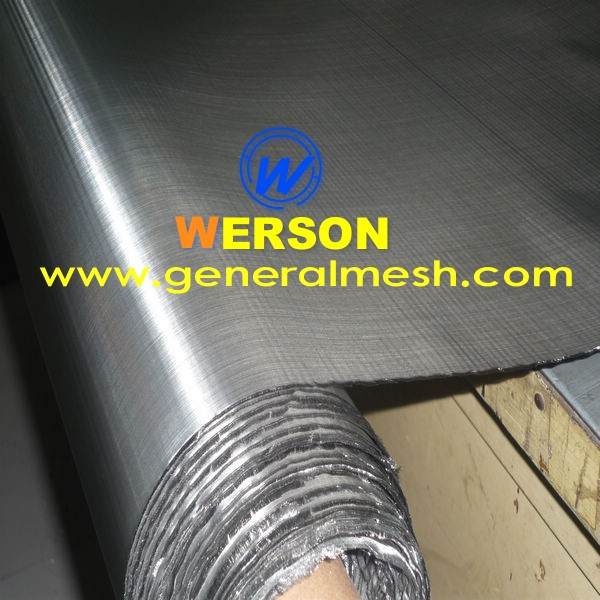

Monel Woven Wire Mesh is often used in marine applications such as piping systems and strainer baskets as well as in chemical processing equipment and heat exchangers. Please see below a typical chemical analysis of Monel Woven Wire Mesh.
Packing: Waterproof paper with plastic cloth, then put into wooden box.
Monel wire Mesh: 8 mesh to 200 mesh.
|
Specification List of Monel Wire Mesh |
|
Mesh/Inch |
Wire Dia mm d |
Mesh Opening mm w |
Opening Area A % |
Weight (kg/sq m) |
Mesh /Inch |
Wire Dia mm d |
Mesh Opening mm w |
Opening Area A % |
Weight (kg/sq m) |
|
8 |
0.710 |
2.465 |
60.2% |
2.01 |
30 |
0.279 |
0.567 |
44.8% |
1.167 |
|
10 |
0.635 |
1.905 |
56.3% |
2.02 |
35 |
0.330 |
0.396 |
29.7% |
1.905 |
|
12 |
0.584 |
1.532 |
51.8% |
2.04 |
40 |
0.254 |
0.381 |
36% |
1.290 |
|
14 |
0.417 |
1.397 |
59.0% |
1.217 |
60 |
0.160 |
0.263 |
39% |
0.768 |
|
16 |
0.376 |
1.212 |
58.0% |
1.131 |
80 |
0.120 |
0.198 |
39% |
0.576 |
|
18 |
0.406 |
1.005 |
50.7% |
1.483 |
100 |
0.100 |
0.154 |
37% |
0.500 |
|
20 |
0.406 |
0.846 |
46.2% |
1.648 |
120 |
0.090 |
0.122 |
33% |
0.486 |
|
24 |
0.274 |
0.784 |
55.0% |
0.901 |
150 |
0.066 |
0.103 |
37.2% |
0.326 |
|
28 |
0.234 |
0.673 |
55.0% |
0.767 |
200 |
0.053 |
0.074 |
33.6% |
0.281 |
