Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Diameter: |
0.025mm to 4mm |
| Mesh Count: |
1mesh to 400mesh |
| Copper Grade: |
Phosphor Bronze Wire |
| Hole Shape: |
Square |
| Material: |
Phosphor Bronze Wire |
| Application: |
Sieving Diersified Pellet |
Product Description

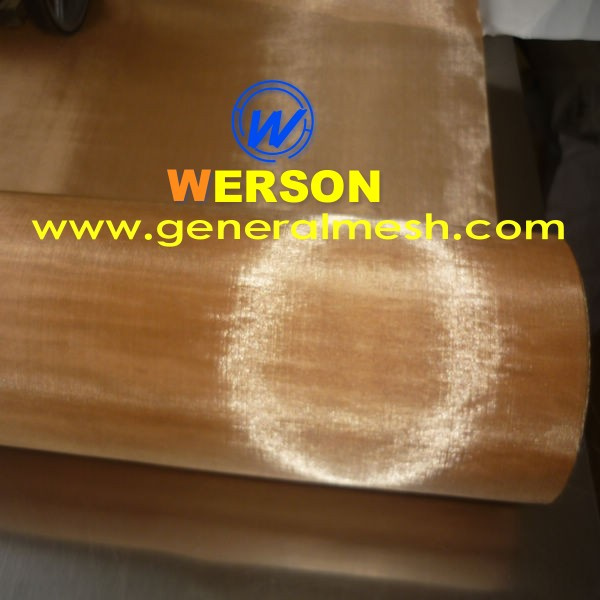

Phosphor bronze wire mesh is frequently used in sieving diversified pellet, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas. Roll in width is from 0.4m to 3m; Roll in length from 10m to 200m. Packing: Wooden case. Meanwhile, we also supply copper wire mesh from 4mesh to 180mesh.
Characteristics: Phosphor bronze wire is corrosion resistant, high intension, high flexibility, magnetism resistant, wear resistant and tear resistant. Woven wire mesh and wire cloth made of phosphor bronze wires are mainly used as fine wire cloth in a number of industries. Copper wire has excellent electric conductivity, thermal conductivity, ductibility and corrosion resistant.
Uses: Usually used in sieving and filtering in pharmaceutical and food hygiene industry; Sifting for porcelain clay, particles and powder; Printing on the porcelain and glassware etc.
|
Phosphor Bronze Wire Mesh |
|
Mesh/Inch |
Wire Diameter(mm) |
Aperture(mm) |
|
SWG |
mm |
inch |
|
6 |
22 |
0.711 |
0.028 |
3.522 |
|
8 |
23 |
0.610 |
0.024 |
2.565 |
|
10 |
25 |
0.508 |
0.020 |
2.032 |
|
12 |
26 |
0.457 |
0.018 |
1.660 |
|
14 |
27 |
0.417 |
0.016 |
1.397 |
|
16 |
29 |
0.345 |
0.014 |
1.243 |
|
18 |
30 |
0.315 |
0.012 |
1.096 |
|
20 |
30 |
0.315 |
0.0124 |
0.955 |
|
22 |
30 |
0.315 |
0.0124 |
0.840 |
|
24 |
30 |
0.315 |
0.0124 |
0.743 |
|
26 |
31 |
0.295 |
0.0116 |
0.682 |
|
28 |
31 |
0.295 |
0.0116 |
0.612 |
|
30 |
32 |
0.247 |
0.011 |
0.573 |
|
32 |
33 |
0.254 |
0.010 |
0.540 |
|
34 |
34 |
0.234 |
0.0092 |
0.513 |
|
36 |
34 |
0.234 |
0.0092 |
0.472 |
|
38 |
35 |
0.213 |
0.0084 |
0.455 |
|
40 |
36 |
0.193 |
0.0076 |
0.442 |
|
42 |
36 |
0.193 |
0.0076 |
0.412 |
|
44 |
37 |
0.173 |
0.0068 |
0.404 |
|
46 |
37 |
0.173 |
0.0068 |
0.379 |
|
48 |
37 |
0.173 |
0.0068 |
0.356 |
|
50 |
37 |
0.173 |
0.0068 |
0.335 |
|
60X50 |
36 |
0.193 |
0.0076 |
0.268 |
|
60X50 |
37 |
0.172 |
0.0068 |
0.289 |
|
60 |
37 |
0.172 |
0.0068 |
0.250 |
|
70 |
39 |
0.132 |
0.0052 |
0.231 |
|
80 |
40 |
0.122 |
0.0048 |
0.196 |
|
90 |
41 |
0.112 |
0.0044 |
0.170 |
|
100 |
42 |
0.012 |
0.004 |
0.152 |
|
120X108 |
43 |
0.091 |
0.0036 |
0.131 |
|
120 |
44 |
0.081 |
0.3200 |
0.131 |
|
140 |
46 |
0.061 |
0.0024 |
0.120 |
|
150 |
46 |
0.061 |
0.0024 |
0.108 |
|
160 |
46 |
0.061 |
0.0024 |
0.098 |
|
180 |
47 |
0.051 |
0.002 |
0.090 |
|
200 |
47 |
0.051 |
0.002 |
0.076 |
|
250 |
48 |
0.041 |
0.0016 |
0.061 |
|
300 |
49 |
0.031 |
0.0012 |
0.054 |
|
325 |
49 |
0.031 |
0.0012 |
0.047 |
|
350 |
49 |
0.031 |
0.0012 |
0.042 |
|
400 |
49 |
0.031 |
0.0012 |
0.033 |
