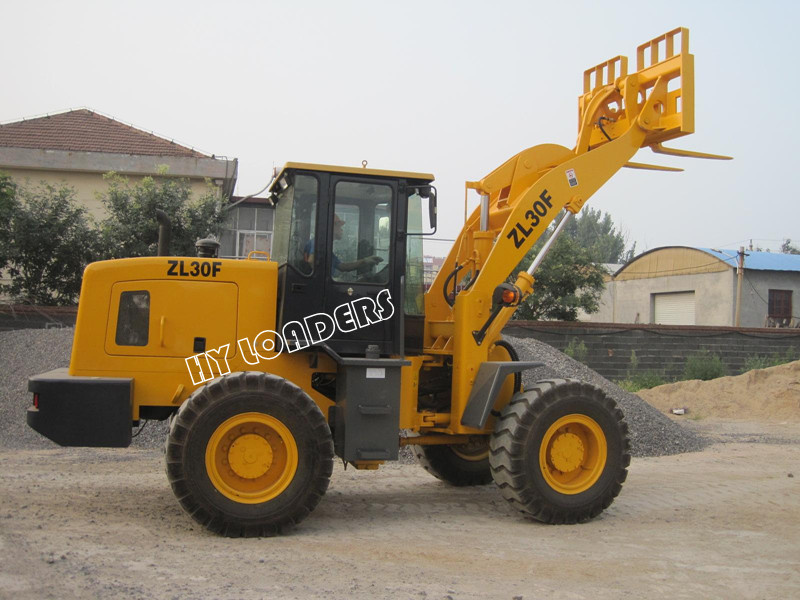

Multi-Function Wheel Loader with Pallet Fork (ZL30F)

Name: Multi-Function Wheel Loader with Pallet Fork (ZL30F)
Brand: China-Manufacturer-Directory.com
SKU: 677900892
Availability: InStock
Rating: 4.7 (21 reviews)

Supplier:	Qingzhou Hongyuan Vehicles Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZL30F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Loading:	3ton
Bucket Capacity:	1.7-2.0m3
Dumping Height:	3020 / 3250mm
Diesel Engine:	Deutz Td226b
Engine Power:	92kw / 125.12HP
Transmission:	Automatic
Tire Size:	17.5-25
Operation Type:	Full Hydraulic
Operationg Weight:	9600kg
Steering System:	Middle Articulated Frame. Full Hydraulic Power
Walking Mode:	Wheeled
Condition:	New
Type:	Large Loader
Certification:	CE
Load And Unload Method:	Front Discharge

Product Description

Wheel loader / 3000kg wheel loader / big wheel loader / loader ZL30F
Multi-function Wheel Loader

Product Main Features
--Weichai Deutz engine, powerful and reliable
--Torque converter and counter-shaft transmission gearbox are separated independently, higher reliability and easier maintenance
--Driving Axle in Meritor technology
--Fully hydraulic steering system, power shift transmission, easy to operate
--Comfortable operation environment, spacious cabin, air-conditioner as option
--Various attachments are available, such as Log clamp, pipe clamp, rock bucket, loose bucket etc. To meet different needs.

1	Bucket capacity		1.7(m3)
2	Rated load		3000(Kg)
3	Overall dimension		7050-2430*3120(mm)
4	Wheel base		2760(mm)
5	Thread		1800(mm)
6	Max. breakout force		138KN
7	Max dumping height		3020/3250(mm)
8	Dump distance		1200(mm)
9	Total time		11(s)
10	Operating weight		9600(Kg)
Diesel engine
1	Model	WEICHAI DEUTZ TD226B( WP6G125)
2	Type	Six cylinders, four strokes, director injection, water cooling.
3	Rated output		92Kw
4	Rated speed		2200r/min
5	Max. torque		860N. m
6	Normal fuel consumption		162(g/kWh)
7	Total displacement		6(L)
8	Fuel		0# or -10# light diesel
9	Starting type		electric starting
10	Net weight		636(kg)
Transmission System
1	Model of Torque Converter		YJ320B-1
2	Type		3-element. single stage
3	Cooling type		Pressure oil circulating
4	Transmission case Type		Full- power shift, counter shaft shape
5	Gear shift position		4 Forward and 4 reverse gears
6	Max. travel speed		40Km/h
Axle and Tire
1	main reducer pattern		Arc taper gear, model ration of first stage
2	Type of reducer		single stage planetary
3	Size of tire		17.5-25
Working Device Hydraulic System
1	Model of oil pump		CBGV2100
2	Displacement of the pump		100(ml/r)
3	System working pressure		27.5(Mpa)
4	Model of distribution valve		DF25.2
Steering System
1	Type		Middle articulated frame. full hydraulic power
2	Mini. Turning radius(outside of bucket)		5700(mm)
3	Max. turning angle		37° ± 1
Brake System
1	Service brake		Air assisted oil disc on four wheel
2	Type of parking brake		Soft axle control, outside bunch drum type

Established in 2005, Qingzhou Hongyuan Vehicle Co., Ltd. is a leading manufacturer and exporter of ZL serial wheel loader in China, which is concerned with the design, development and production of Wheel Loader. All of our products approved CE certification, that's accordingly with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

Our company is specialized in producing mini construction machinery, products cover ZL series wheel loader, mini wheel loader, Multi-Function wheel loader and with different varieties tools which would make one machine for meeting different working condition requirements. Model: ZL08, Z10, ZL12, ZL15, ZL16, ZL18, ZL20, ZL28, ZL30, ZL50, SHM610, HY910, HY712. Tools: Hydraulic quickly coupling, pallet fork, hydraulic pallet fork, hydraulic snow blade, snow bucket, snow blower, 4in1 bucket, screen bucket, hydraulic grapple fork, sweeper, driller, mixer, clamp bales, etc.

Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Products successfully established long term business relationship with Australia, whole Europe, South America and Middle East.

Now we are looking for dealers and distributors to promote our products in worldwide markets. Sincerely welcome world friends to contact for business discussion and cooperation based on mutual benefit. We are looking forward to receiving your inquiries. If you are interested, please visit for more information about us.
