Product Specifications
| Prod Model: |
VCT-2125W-8H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: |
2100 X 2500 X 200mm |
| Spindle Power: |
2.2kw*8PCS |
| Driver: |
Panasonic Servo Motor 1kw |
| Structure: |
Cast Square Tube |
| Transmission: |
Xy Axis Gear Rack, Z Axis High Accuracy Ball Screw |
| Xyz Guiding Rails: |
Pmi Square Rails |
| Machining Accuracy: |
<0.03/300mm |
| Data Transmission: |
Connect with PC Directly (Original 3 Axis Nc Stud |
| Net Weight: |
1800kg |
| Packing Size: |
3100X2280X2200mm |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Layout: |
Vertical |
| Certification: |
SGS |
| Spindle Number: |
8 Heads |
Product Description

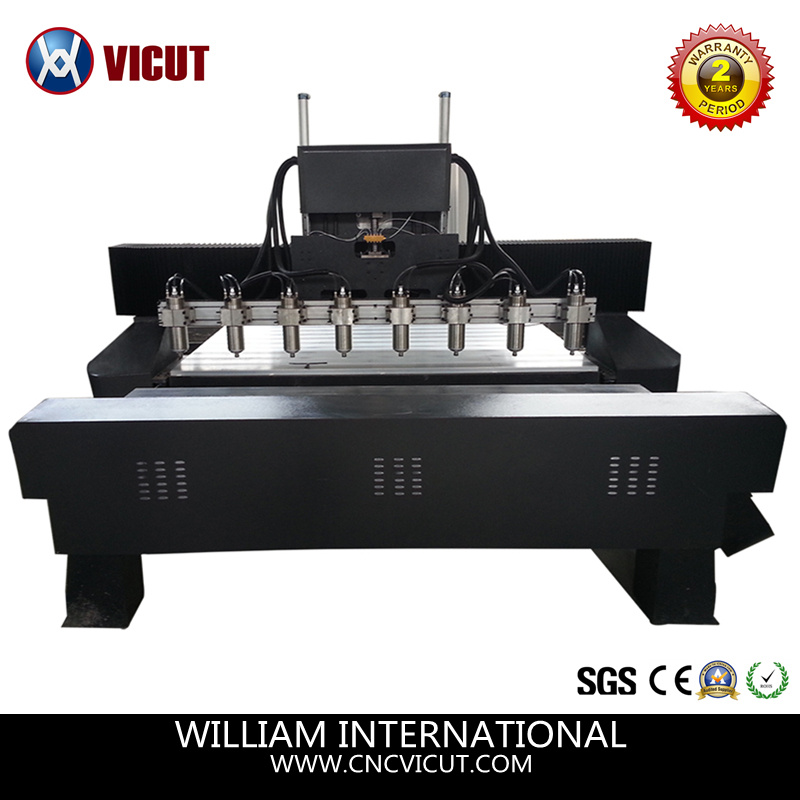

Multi-head CNC Wood Router (8 Heads Series)
Features:
1. Heavy duty and large size working table, processing 8pcs wood at one time, highly improving the working efficiency.
2. XYZ use PIM 25mm linear square rails, XY use high accuracy gear rack, fast working speed, high accuracy.
3. XYZ use 1KW Japan Panasonic servo motor driving system, which ensures long time continuous work.
Applications:
1. Mostly used for making furniture, such as doors, windows, antique furniture, Mahogany furniture, chairs, stairs, hand rails, and all kinds of wood crafts.
2. Also for making instruments, 3D light box, aluminum composite panel, decorations etc.
Machine Details Show:
1. Base Frame: The heavier base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.
2. Water Cooling Spindle: Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc. We offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V, 3Phase-50-60Hz. Series of tools are available, for example, diameter 3.175mm, 4mm, 6mm, 8mm and 12.7mm
3. Ball Screw and gear rack: Sh center driven ball screws with 25mm or 40mm diameter and 0.01mm repositioning accuracy. XY axis use high accuracy gear rack. The combination for ball screw and gear rack makes machine working more accurate and stable.
4. Steel Band: As a solid and level foundation, we put milled thick steel band under each guide and rack.
5. Linear square guide: Quality 25MM linear square guide with high rigidity, resist vibration and shock, with damping characteristics
Optional parts:
1. PVC on Aluminum Table: Black 7mm PVC on top of aluminum profile table, protect the table from cutting scratching.
2. Mist Sprayer: It sends oil mist to machining surface, it is important for tool cooling and lubricating.
3. Dust skirts: Switchable structure with dense skirts for your convenience to load tools, easy to remove the dust completely.
4. NC Studio Handle Wheel: Better anti-jamming and allowing long distance transmission of signal, with a 3m hand wheel cable; Accurate pulse output;
Resolution: 100P/R; You can control the machine movement by adjust the hand wheel; That makes control operation more easy and convenient.
| Model | VCT-2530W-8H | VCT-2125W-8H | VCT-2325W-2Z-8H | VCT-2030W-2Z-8H |
| Working Size | 2500 x 3000 x 200mm
(8.2'x9.8'x0.67') | 2100 x 2500 x 200mm
(6.9'x8.2'x0.67') | 2300 x 2500 x 200mm
(7.5'x8.2'x0.67') | 2000 x 3000 x 200mm
(6.6'x9.8'x0.67') |
| Spindle Power | 2.2KW x 8PCS |
| Driver | Panasonic servo motor 1KW |
| Tool Diameter | 4,6, 8,12mm |
| Structure | cast square tube |
| Transmission | XY axis gear rack, Z axis high accuracy TBI ball screw |
| XYZ Guiding Rails | PMI square rails |
| Machining Accuracy | <0.03/300mm |
| Maxi Engraving Speed | 15000mm/m |
| Spindle Speed | 6000-24000rpm |
| Data Transmission | connect with PC directly (original 3 axis NC Studio controller) |
| File Format | G code or HPGL |
| Voltage | AC220V/50HZ or 380V/60Hz |
| Net Weight | 2500KG | 1800KG | 2000KG | 2200KG |
| Packing size | 4200x2280x2200mm
(21CBM) | 3500x2280x2200mm
(16CBM) | 3500x2280x2200mm
(16CBM) | 4000x2280x2200mm
(21CBM) |
