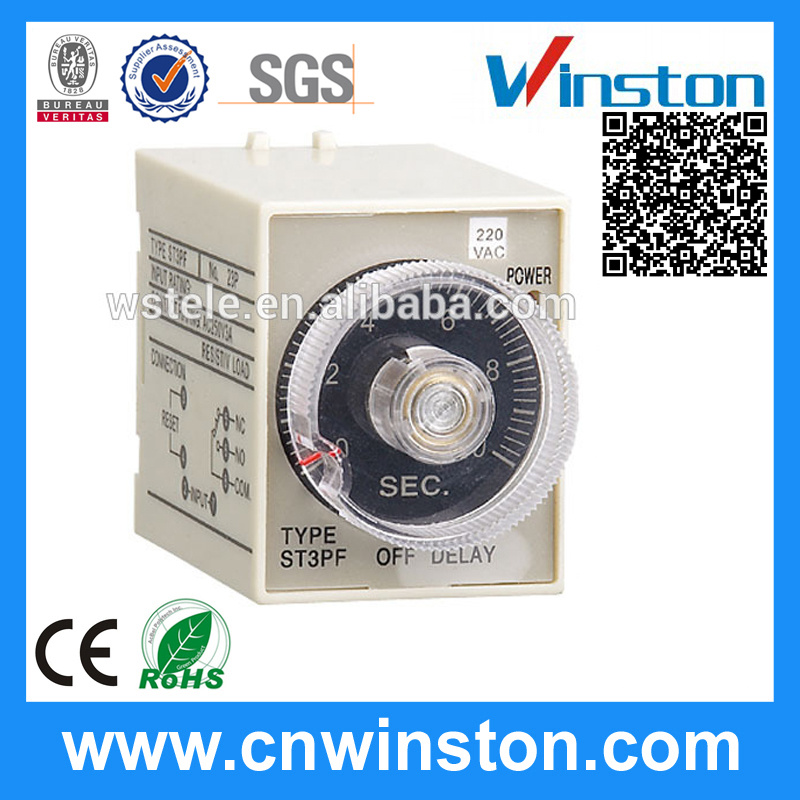

Multi-Range Electronic Adjustable Mechanical Time Relay with CE

Name: Multi-Range Electronic Adjustable Mechanical Time Relay with CE
Brand: China-Manufacturer-Directory.com
SKU: 771163225
Availability: InStock
Rating: 4.8 (64 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 4.35-7.55/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ST3P Series
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Brand:	Winston
Consumed Power:	2VAC
Quality:	2 Year Warranty
Dimensions(mm):	5540.557.5
Weight:	100g
OEM/ODM:	Yes
Condition:	Original New
Ambient Huminity:	35~85%Rh
Reset Time:	0.5 Sec Max
Ambient Temperature:	:-10~+55 Degree

Product Description

Product Description

1, the air damping type time relay, also known as bellows type time relay, it is based on the air compression resistance to delay, its structure is simple, cheap, wide time delay range (0.4 ~ 180 s), but the delay precision is low.
2, electromagnetic relay time delay time is short (0.3 ~ 1.6 s), but its structure is simple, usually used in delay occasions and dc power.
3, the principle of dynamic time relay like clocks and watches, it is obtained by internal motor drive gear rotation and time delay. The relay delay of high precision, wide time delay range (0.4 ~ 72 h), but the structure is more complex, the price is very expensive.
4, the transistor type time relay, also known as electronic time relay, it is to use time delay circuit for time delay. This kind of relay with high precision, small volume.

Technique parameter

Type		ST3P
Dimensions		50HX40WX57.5D
Mounting	Surface (-N)	PF083A(E)
Socket	Flush(-Y)	US-08 P3G-08
Full timing range		A:0.05-0.5S/5S/30S/3MIN B:0.1-10S/60S/6MIN C:0.5-5S/50S/5MIN/30MIN D:1-10S/100S/100MIN/60MIN E:5-60S/10S/60MIN/6H F:0.25-2MIN/20MIN/2H/1H G:0.5-4MIN/40MIN/4H/24H
Rated voltage		AC(V):24-220 DC(V):24-110(50/60Hz)
Indicator operation		ON-UP operation
O/P Contact	Model	ST3PA	ST3PC
	Time limit 1c		5A
	Time limit 2c	5A
	Instantaneous 1c		5A
Service life	Mechanical	5X10000000 times
	Electrical	100000 times
Accuracy	Repeat error	±2% max
	Setting error	±5% max
	Voltage error	±5% max
	Temperature error	±2% max
Reset time		0.5 sec max
Consumed power		2VA
Ambient temperature		-10~+55
Ambient humidity		35-85% RH
Weight		100g

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
