Yueqing Winston Electric Co., Ltd. >> Multi Range Electronical Time Relay with CE

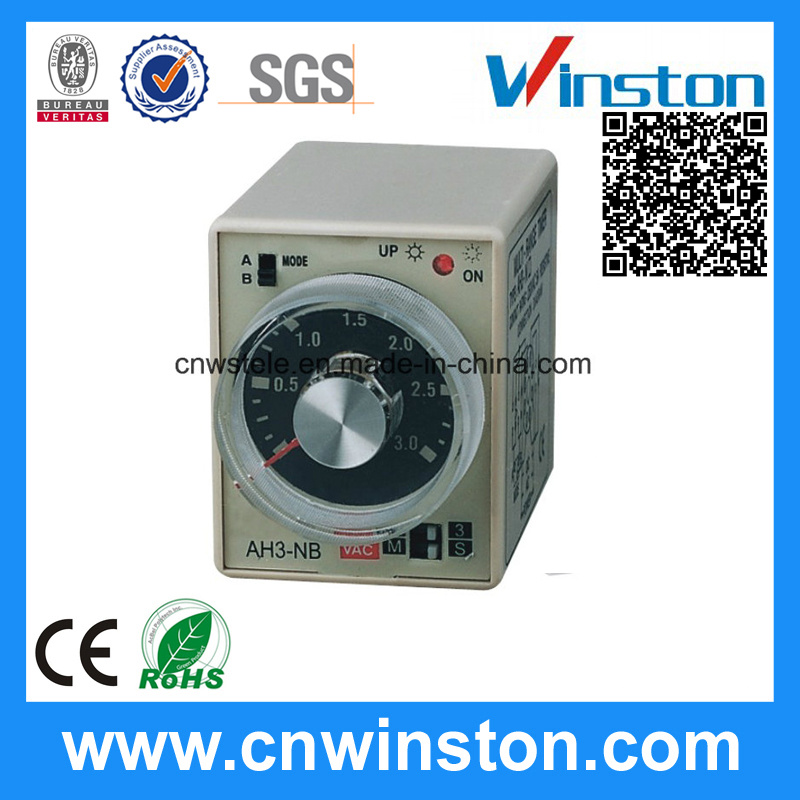

Multi Range Electronical Time Relay with CE

Name: Multi Range Electronical Time Relay with CE
Brand: China-Manufacturer-Directory.com
SKU: 720469445
Availability: InStock
Rating: 4.6 (35 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 4-6/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	AH3-N
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Brand:	Winston
Power Expend:	DC1.0W AC1.0va
Huminity:	35%~85%
Control Output:	5A220VAC
Supply Voltage:	12/24VDC, 24/110/220/380VAC
Quality Guarantee:	2 Years
Manufacturer:	OEM
Protect Feature:	Sealed
Condition:	Original New
Detection Angle:	360

Product Description

Features:
1) Types: AH3-NA, AH3-NB, AH3-NC, AH3-NC, AH3-ND, AH3-NE
2) Contact capacity: 5A, 250V AC
3) Coil voltage:
A) DC: 12, 24V
B) AC: 12, 24, 48, 110, 220, 240, 380V
4) Coil power: 2VA
5) Time range:
A) 1s, 10s, 1min, 10min
B) 3s, 30s, 3min, 30min
C) 6s, 60s, 6min, 60min
D) 1min, 10min, 1h, 10h
E) 3min, 30min, 3h, 30h
6) Electrical life: 100, 000 times
7) Mechanical life: 5, 000, 000 times
8) Operating temperature: -40 - +50° C
9) Repeat error: ± 1%
10) Setting error: ± 1%
11) Voltage error: ± 1%
12) Temperature error: ± 1%

Classification			Multi Range Timer			Multi Range Timer			Multi Range Timer
Specification Model			AH3-3			AH3-B			AH3-NB
Dimension			50H × 40W × 57.5D			50H × 40W × 57.5D			50H × 40W × 57.5D
Mounting & Socket		Surface(-N)	PF083A (E)			PF083A (E)			PF083A (E)
		Flush(-Y)	US-08 P3G-08			US-08 P3G-08			US-08 P3G-08
Full Timing Range			SEC:1,3,6,10,12,30,60 MIN:3,6,10,12,30,60 HR:3,6,10,12,30			A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H			A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H
Rated Voltage (V)			AC: 24,110,220,240,380,50/60Hz DC: 12,24			AC: 24,110,220,240,380,50/60Hz DC: 12,24			AC: 24,110,220,240,380,50/60Hz DC: 12,24
Indicator Operating			ON-UP operating			ON-UP operating			Time operating flicker
O/P Contact	Model		AH3-1	AH3-2	AH3-3	AH3-1	AH3-2	AH3-3	Model A/B
	Time Limit 1C		5A		5A			5A		5A
	Time Limit 2C			5A		5A			5A
	Instantaneous 1C				5A		5A	5A		5A
Life	Mechanical		5×106?Times			5×106?Times			5×106?Times
	Electrical		105?Times			105?Times			105?Times
Accuracy	Repeat Error		±1% max			±1% max			±1% max
	Setting Error		±10% max			±10% max			±10% max
	Voltage Error		±1% max			±1% max			±1% max
	Temp Error		±2% max			±2% max			±2% max
Reset Time			0.1 sec max			0.1 sec max			0.1 sec max
Consumed Power			3VAC			3VAC			3VAC
Ambient temperature			-10oC~+55oC			-10oC~+55oC			-10oC~+55oC
Ambient Huminity			48~85% RH			48~85% RH			48~85% RH
Weight			160g			160g			160g
