Product Specifications
| Prod Model: |
PM-834 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

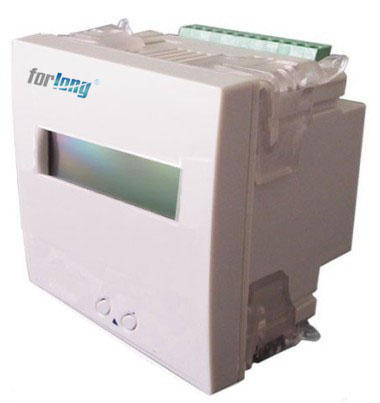

PM834 is an electronic electricity meter for 3-phase metering and is designed in accordance with the JWInstruments PROM standard.
PM834 can not only measure energy but also other data, such as voltage, current, power, power factor and frequency. Meter can display 32 items. The display time of every item is 5 seconds.
PM834 has a temperature range from -10 to +65° (storage +70° ).
PM834 has 2 ways to communicate:
- Display at front
- Pulse output
The PM834 transformer connected meter has two function buttons that are used to set the current transformer ratio. The buttons can be sealed by mounting a sealable terminal cover or by mounting the PM834 in a modular enclosure.
PM834 meter types are tested and approved according to:
- IEC 62052-11 and 62053-21
- Measurement instrument directive (MID), category A and B, electrical environmental class E2 and electrical environmental class M2
- EN 50470-1, EN 50470-3 category A and B.
These standards cover technical aspects of the meter like climate conditions, electromagnetic compatibility (EMC), electrical requirements, mechanical requirements and accuracy.
|
Inputs |
|
System |
3 Phase 4 Wire |
|
Voltage(V) |
|
Norminal voltage AC |
3×230/400 |
|
Voltage rage |
-30% to +30% of nominal voltage |
|
Input Withstand Capability |
Meets IEEE C37.90.1 (Surge Withstand Capability) |
|
Current(A) |
|
Imin |
0.25A |
|
Itr |
0.5A |
|
Iref(Ib) |
5A |
|
Ist |
10mA |
|
Withstand |
500Afor 0.01 Second |
|
Accuracy |
|
kWh |
Better than Class 1 per EN 62053-21 & BS 8431 |
