Multifunctional Digital Electrical Adjustable Time Relay with CE

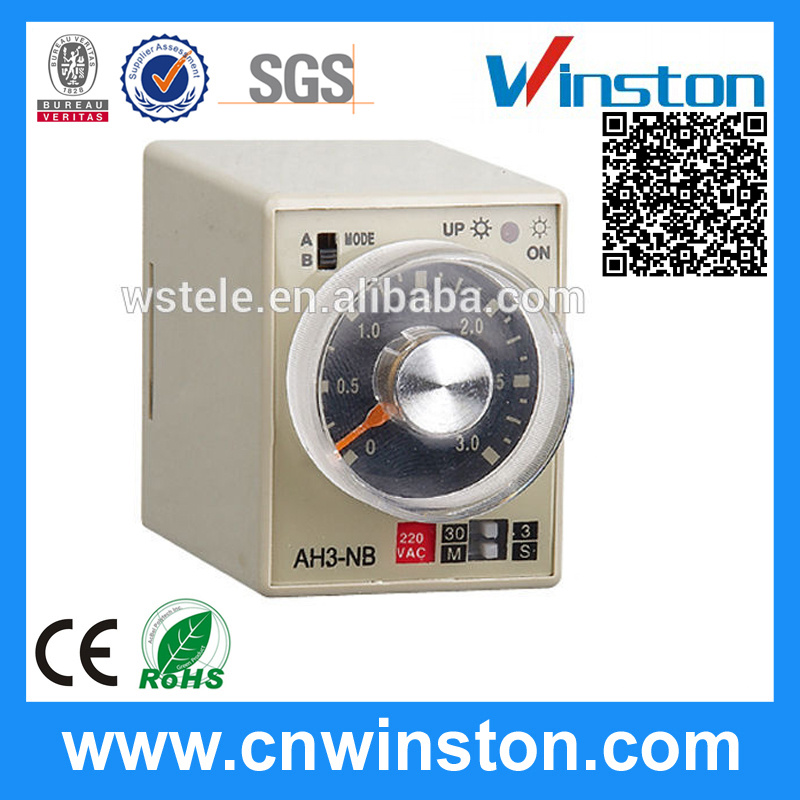

Name: Multifunctional Digital Electrical Adjustable Time Relay with CE
Brand: china-manufacturer-directory.com
SKU: 771138735
Availability: InStock
Rating: 4.3 (107 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 5-8/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	AH3-NB
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Brand:	Winston
Rated. Voltage:	22va
Quality:	2 Year Warranty
Dimensions(mm):	504057.5
Weight:	160g
OEM/ODM:	Yes
Condition:	Original New
Ambient Huminity:	48~85%Rh
Reset Time:	0.1 Sec Max
Ambient Temperature:	-10oc~+55oc

Product Description

Product Description

   AH3-NB time relay is used ASIC and professional manufacturing technology to produce innovative time relay, with small size, light weight, delay a wide range of anti-interference ability, long life characteristics to be suitable for a variety of demanding precision, high reliability, automation and control sites used for delay control .

Technique parameter

Classification			Multi Range Timer			Multi Range Timer			Multi Range Timer
Specification Model			AH3-3			AH3-B			AH3-NB
Dimension			50H × 40W × 57.5D			50H × 40W × 57.5D			50H × 40W × 57.5D
Mounting & Socket		Surface(-N)	PF083A (E)			PF083A (E)			PF083A (E)
		Flush(-Y)	US-08 P3G-08			US-08 P3G-08			US-08 P3G-08
Full Timing Range			SEC:1,3,6,10,12,30,60 MIN:3,6,10,12,30,60 HR:3,6,10,12,30			A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H			A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H
Rated Voltage (V)			AC: 24,110,220,240,380,50/60Hz DC: 12,24			AC: 24,110,220,240,380,50/60Hz DC: 12,24			AC: 24,110,220,240,380,50/60Hz DC: 12,24
Indicator Operating			ON-UP operating			ON-UP operating			Time operating flicker
O/P Contact	Model		AH3-1	AH3-2	AH3-3	AH3-1	AH3-2	AH3-3	Model A/B
	Time Limit 1C		5A		5A			5A		5A
	Time Limit 2C			5A		5A			5A
	Instantaneous 1C				5A		5A	5A		5A
Life	Mechanical		5×106 Times			5×106 Times			5×106 Times
	Electrical		105 Times			105 Times			105 Times
Accuracy	Repeat Error		±1% max			±1% max			±1% max
	Setting Error		±10% max			±10% max			±10% max
	Voltage Error		±1% max			±1% max			±1% max
	Temp Error		±2% max			±2% max			±2% max
Reset Time			0.1 sec max			0.1 sec max			0.1 sec max
Consumed Power			3VAC			3VAC			3VAC
Ambient temperature			-10oC~+55oC			-10oC~+55oC			-10oC~+55oC
Ambient Huminity			48~85% RH			48~85% RH			48~85% RH
Weight			160g			160g			160g

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
