Product Specifications

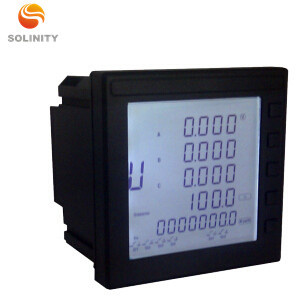

Product Description
Functions:
Measure three phase / wire voltage, zero sequence voltage, degree of unbalance three-phase voltage unbalance, phase current, frequency, zero-sequence current, three-phase current imbalance, active power, reactive power, power factor
Support 2 ~ 62 times harmonic voltage current containing rate statistics, voltage current total harmonic distortion rate
Record of Harmonic out of limits
Standard CT, PT or voltage direct input, which can be used for a variety of connecting wire.
Electronic energy metering:active electronic energy(kwh) ,reactive energy(kwarh) and bidirectional four quadrant electric energy
Wide measurement range of AC and DC universal power: AC/DC110V ~ 250V;
All instrument parameters can be set through the display panel
Specifications:
| Dimension and Hole Size | Meter Model No.
| Optional Function
| Optional Function for All |
Outline96(mm)
Face frame:
96×96
Hole:
91×91
Depth:66
| PIM620H-F96 | 1.one way RS-485communication (C) | 1.4DI+C
2.4DI+2DO+C
3.2DI+2DO+K+C
4.4DI+2DO+M+C
5.4DI+2DO+M+A+C |
| 2.4DI remote signal input |
| one way electrical pulse output (k) |
| 4.2DO remote control output |
| 5.one way out of limit alarm output.(M) |
| 6.one way DC4DC4~20mA Analog signal output |
Precautions:
Recommended connection cable diameter is 1.5 square, Maximum is 2.5 square
Communication cable can be the shielded cable. And the cables of input, communication and power should be routed separately. Pay attention to environmental conditions. whether there is some corrosive gases or not, if any, you should notify the manufacturer when ordering
When adjusting the live programming current transformation ratio, it should correspond to the specifications of primary current transformer
Be sure of cutting off the power supply product installing, when disassembling maintenance checking and wiring, otherwise it will cause to shock or burnt the equipment
Switch input power is DC voltage, you must follow the correct polarity connection
Beijing SOLINITY Electrical Co., Ltd. Established in September, 2009. The company is located in Industrial Park, Haidian District, it is a high and new technological joint-stock enterprise, which involves in R &D, production, and sales as well. The leading intelligent power distribution control systems and industrial control instruments measuring product, are widely used in electric power, petrochemical, municipal, intelligent building and factory enterprises. We have a highly educated and highly qualified technical team, outstanding professionals and style of rigorous and pragmatic lay a solid foundation for business development of Our company.
We have ISO 9001-2000 and CE certifications.
Our markets have spread all over the world, such as Japan, Korea, Thailand, India, Middle East, European, south America, north America and so on.
And our products have been designed with different features for each model to meet customers' different demands.
