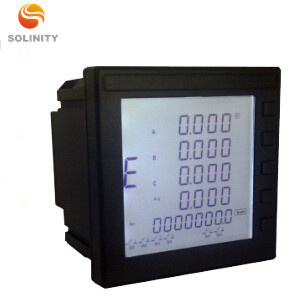

PIM620DP-F96 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Features:
Measure three phase/wire voltage and zero sequence voltage, three-phase uneven degree of voltage, three phase current, frequency, zero sequence current, imbalance of three phase current and active power, reactive power, apparent power, power factor, total active power, total reactive power, total power factor.
Standard CT, PT or voltage directly input, which can be used for a variety of connecting wire.
Electronic energy metering: active electronic energy (kwh), reactive energy (kwarh) and bidirectional four quadrant electric energyTime-sharing multi-rate active/reactive power statistics, eight times can be set and four kinds of rates are available in one day.Historical statistics of electric degreesRecord recent 31 days of bidirectional four-quadrant active/reactive electronic degrees, four quadrant rates active/reactive electronic degree, bidirectional rates active/reactive electric degree.Wide measurement range of AC and DC universal power: AC/DC110V ~ 250V;All instrument parameters can be set through the display panel Specifications: | Dimension and hole size | Meter Model No. | Optional features
| Optional Function for All |
Outline96(mm)
Face frame:
96×96
Hole size:
91×91
Depth in length ways :66 |
PIM620DP-F96 | One channel of RS-485communication (C) | 1.4DI+C
2.4DI+2DO+C
3.2DI+2DO+K+C
4.4DI+2DO+M+C
5.4DI+2DO+M+A+C
|
| Four channels of remote date input communication( 4DI) |
| One way electrical pulse output (k) |
| 2DO remote control output |
| One channel over-limit alarm output (M) |
| One way DC4DC4~20mA analog quantity output |
Precautions: Recommended connection cable diameter is 1.5 square, Maximum is 2.5 square Communication cable can be the shielded cable. And the cables of input, communication and power should be routed separately. Pay attention to environmental conditions, whether there is some corrosive gases or not. If any, you should notify the manufacturer when ordering When adjusting the live programming current transformation ratio, it should correspond to the specifications of primary current transformer Be sure of cutting off the power supply product installing, when disassembling maintenance checking and wiring, otherwise it will cause to shock or burnt the equipmentSwitch input power is DC voltage, you must follow the correct polarity connection
