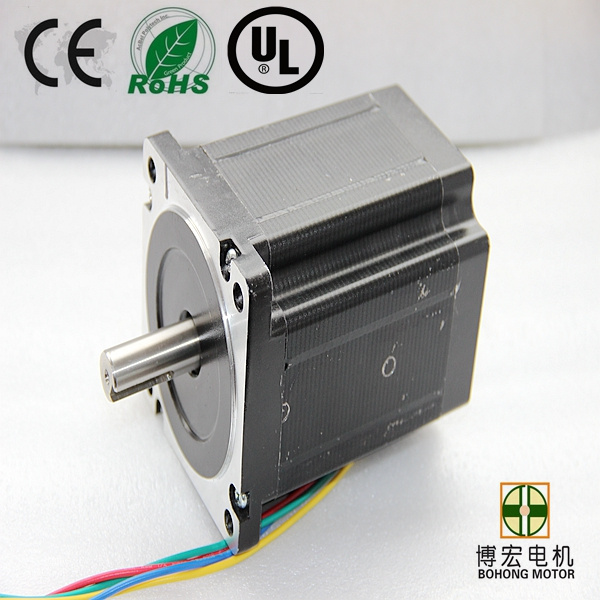

NEMA 23 Stepper Motors for Automatic Machines
Product Specifications
| Prod Model: |
57BYGHB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 57mm High Torque Stepper Motor: |
1.8 Degree |
| NEMA23: |
2 Phase |
| Type: |
Magnetic-Electric |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
The Three Single Phase |
| Brand: |
Bohong |
| Speed: |
<1000rpm |
| Function: |
Stepper Motor |
| Certification: |
CE,RoHS |
Product Description
Item Specifications:
Step Angle 1.8.
Step Angle Accuracy ± 5% (full step, no load)
Resistance Accuracy ± 10%
Inductance Accuracy ± 20%
Temperature Rise 80. C Max. (rated current, 2 phase on)
Ambient Temperature -20. C~+50. C
Insulation Resistance 100MΩ Min., 500VDC
Dielectric Strength 500VAC for one minute
Shaft Radial Play 0.02Max. (450 g-load)
Shaft Axial Play 0.08Max. (450 g-load)
Max. Radial force 75N (20mm from the flange)
Max. Axial force 15N
Rotation CW( See from Front Flange)
Model
Step angel (°)
Motor Length L(mm)
Rated
Voltage
(V)
Rated
Current
(A)
Phase
Resistance
(Ω)
Phase
Inductance
(mH)
Holding
Torque
(kg.cm)
Lead
Wire
(NO.)
Rotor
Inertia
(g.cm)
Detent
Torque
(g.cm)
Motor
Weight
(kg)
57BYGHB101
1.8
41
6
0.5
12
20
4
4
120
0.21
0.45
57BYGHB113
1.8
41
2.7
1.5
1.8
4
4
4
120
0.21
0.45
57BYGHB113
1.8
41
2.7
1.5
1.8
2.5
3.5
6
120
0.21
0.45
57BYGHB301
1.8
51
7.2
0.6
12
25
7
4
275
0.36
0.65
57BYGHB318
1.8
51
2.6
2
1.3
4
9
4
275
0.36
0.65
57BYGHB337
1.8
51
3
2.5
1.2
1.6
7.5
6
275
0.36
0.65
57BYGHB400
1.8
56
2.5
2.8
0.9
2.5
12.6
4
300
0.4
0.7
57BYGHB402
1.8
56
12
0.6
20
25
8
6
300
0.4
0.7
57BYGHB404
1.8
56
2.4
3
0.75
1.1
9
6
300
0.4
0.7
57BYGHB405
1.8
56
3.6
2
1.8
7
9
4
300
0.4
0.7
57BYGHB420
1.8
56
3.6
2
1.8
2.5
9
6
300
0.4
0.7
57BYGHB602
1.8
67
3.4
2
1.7
3
10
6
360
0.5
0.82
57BYGHB606
1.8
67
2.4
3
0.8
1
9
6
360
0.5
0.82
57BYGHB701
1.8
78
3.36
2.8
1.2
5
18.9
4
480
0.68
1
57BYGHB708
1.8
78
4
2
2
4.5
14.5
6
480
0.68
1
57BYGHB712
1.8
78
3.6
3
1.2
2.5
14.5
6
480
0.68
1
57BYGHB714
1.8
78
6.75
1.5
4.5
15
16
4
480
0.68
1
57BYGHB733
1.8
78
3
3
1
1.6
13.5
6
480
0.68
1
57BYGHB760
1.8
78
10.4
0.8
13
42
19.8
4
480
0.68
1
57BYGHB112-03
1.8
112
6.3
3
2.1
9
25
4
810
0.89
1.55
57BYGHB112-07
1.8
112
4.2
4.2
1
2.3
19.5
8
810
0.89
1.55
