Product Specifications
| Prod Model: |
SK |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Q235B Carbon Steel Plate or as Client Requirement |
| Installation: |
Supplier Dispatch Engineer |
| Voltage: |
380 V Others |
| Power(W): |
5.5-110 Kw |
| Dimension(L*W*H): |
Different Model Different |
| Weight: |
6- 300 Ton |
| Certification: |
CE, ISO9001:2000 |
| Warranty: |
Two Years |
| Application: |
Construction,Metallurgical,Mining Industry etc |
| Drying Temperature: |
200-1000 Degree |
| Structure: |
Rotary Type Drier |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Fixed |
| Heating Mode: |
Hot Air |
Product Description

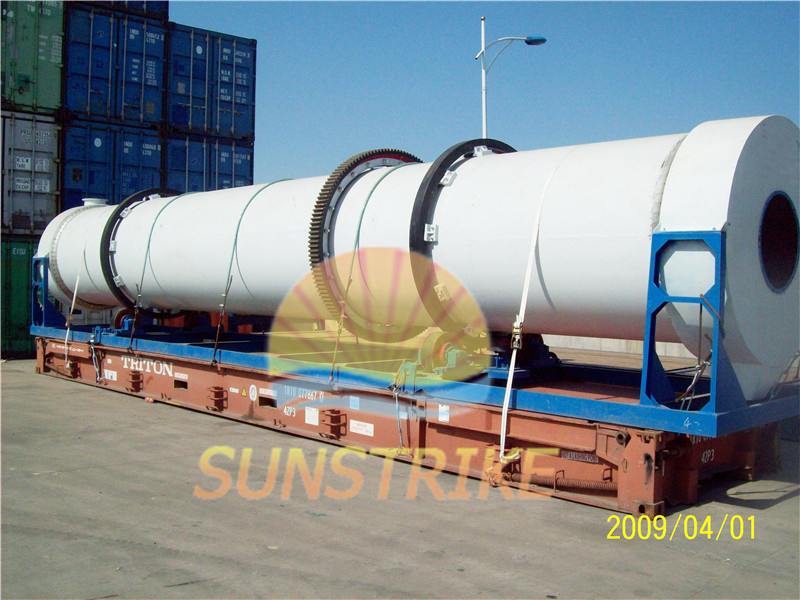

New type design vinasse dryer/vinass drying machine with good quality
The wet vinasse put into the dryer machine,.vinasse is uniformly distributed and
dispersed in the dryer, fully contact with hot air of parallel (or counter) flow and
drying,drying process is expedited,the impulsion power of media transfer is
enhanced. During the drying process, vinasse is under the effect of angled
baffler and hot air, moves to the star shape unload that is at the other head of
the dryer.Applications of vinasse dryer machineThis type vinasse dryer machine applicable for drying lightweight material,
such as bean dregs,vinasse,wood chips,cassava dregs,Marc,distiller's grains,and others..For materials to be dried under low temperature and large lot
continuous production Features of vinasse dryer machineThe type vinasse dryer machine have a high motorization level of the barrel,
and the production capacity is high. The resistance that the material passes
through the barrel is less, also this type drying machine the power consumption
is low. Application capability to different characters of materials is high. Our professional vinasse dryer machine operation is stable, the operation
fee is low, and the uniformity of product is good Main technical parameters of viansse dryer machine:
| Model | Diameter
(m) | Length
(m) | speed
(r/min) | Installation obliquity
(%) | Drying temperature
(°c) | Capacity
(t/h) | Motor
(kw) | Weight
(ton)
|
| Φ0.8x8 | 0.8
| 8 | 3-6 | 3-5% | ≥800 | 0.6-0.8 | 3 | 3.5 |
| Φ1.0x10 | 1.0
| 10 | 3-6 | 3-5% | ≥800 | 1-1.5 | 4 | 7 |
| Φ1.0x12 | 1.0
| 12 | 3-6 | 3-5% | ≥800 | 1.5-1.8 | 4 | 8 |
| Φ1.0x15 | 1.0
| 15 | 3-6 | 3-5% | ≥800 | 1.5-2 | 5.5 | 10 |
| Φ1.2x10 | 1.2
| 10 | 3-6 | 3-5% | ≥800 | 1.8-2 | 7.5 | 14 |
| Φ1.2x12 | 1.2
| 12 | 3-6 | 3-5% | ≥800 | 2-3 | 11 | 15 |
| Φ1.2x15 | 1.2
| 15 | 3-6 | 3-5% | ≥800 | 2.5-3 | 11 | 18 |
| Φ1.5x15 | 1.5
| 15 | 3-6 | 3-5% | ≥800 | 3-3.5 | 15 | 20 |
| Φ1.5x18 | 1.5
| 18 | 3-6 | 3-5% | ≥800 | 3.5-4 | 15 | 23.5 |
| Φ1.5x20 | 1.5
| 20 | 3-6 | 3-5% | ≥800 | 4.0-4.5 | 15 | 25 |
| Φ1.8x15 | 1.8
| 15 | 3-6 | 3-5% | ≥800 | 4.5-5.0 | 18,5 | 28 |
| Φ1.8x18 | 1.8
| 18 | 3-6 | 3-5% | ≥800 | 5.0-5.5 | 18.5 | 30 |
| Φ1.8x20 | 1.8
| 20 | 3-6 | 3-5% | ≥800 | 5.5 | 18.5 | 33 |
| Φ2.0x15 | 2.0
| 15 | 3-6 | 3-5% | ≥800 | 5.5-6 | 18.5 | 35 |
| Φ2.0x18 | 2.0
| 18 | 3-6 | 3-5% | ≥800 | 6-6.5 | 18.5 | 42 |
| Φ2.0x20 | 2.0
| 20 | 3-6 | 3-5% | ≥800 | 6.5-6.8 | 18.5 | 50 |
| Φ2.2x20 | 2.2
| 20 | 3-6 | 3-5% | ≥800 | 6.5-7.0 | 22 | 56 |
| Φ2.2x22 | 2.2
| 22 | 3-6 | 3-5% | ≥800 | 7.0-7.5 | 22 | 58 |
| Φ2.4x20 | 2.4
| 20 | 3-6 | 3-5% | ≥800 | 7.5-8 | 30 | 60 |
| Φ2.5x20 | 2.5
| 20 | 3-5 | 3-5% | ≥800 | 8-9 | 30 | 63 |
| Φ2.5x25 | 2.5
| 25 | 3-5 | 3-5% | ≥800 | 10-11 | 37 | 68 |
| Φ2.6x20 | 2.6
| 20 | 3-5 | 3-5% | ≥800 | 9-10 | 37 | 65 |
| Φ2.6x25 | 2.6
| 25 | 3-5 | 3-5% | ≥800 | 11-12 | 37 | 73 |
| Φ2.6x30 | 2.6
| 30 | 3-5 | 3-5% | ≥800 | 15-18 | 45 | 80 |
| Φ2.8x20 | 2.8
| 20 | 3-5 | 3-5% | ≥800 | 13-15 | 45 | 75 |
| Φ2.8x22 | 2.8
| 22 | 3-5 | 3-5% | ≥800 | 15-16 | 45 | 78 |
| Φ2.8x30 | 2.8
| 30 | 3-5 | 3-5% | ≥800 | 18-20 | 55 | 83 |
| Φ3.0x20 | 3.0
| 20 | 3-5 | 3-5% | ≥800 | 18-20 | 55 | 78 |
| Φ3.0x22 | 3.0
| 22 | 3-5 | 3-5% | ≥800 | 20-25 | 55 | 80 |
| Φ3.0x30 | 3.0
| 30 | 3-5 | 3-5% | ≥800 | 25-28 | 75 | 90 |
