Nlos Broadcasting Cofdm Wireless AV Transmitter and Receiver

Name: Nlos Broadcasting Cofdm Wireless AV Transmitter and Receiver
Brand: China-Manufacturer-Directory.com
SKU: 699624745
Availability: InStock
Rating: 4.3 (114 reviews)

Supplier:	Teng Yuanzhi Shenzhen Electronic Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	ST6000TKMD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Video Transmission
Modulation:	Cofdm

Product Description

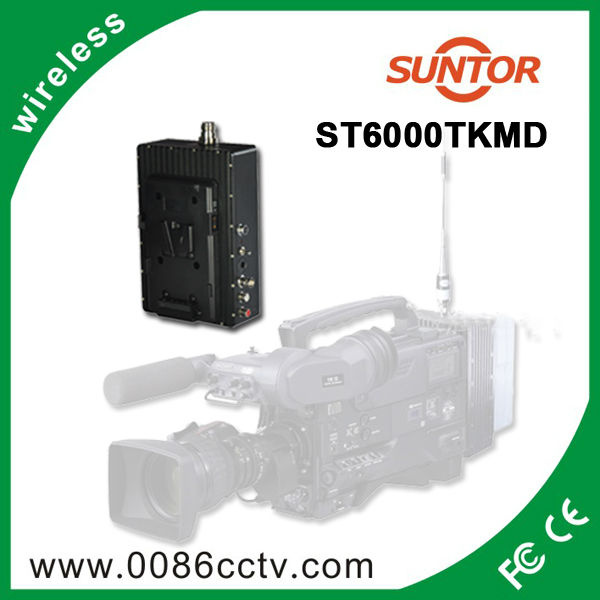

ST6000TKMD specification: 1. Working Frequency: 325-860MHz 2. Modulation: COFDM 3. Transmission distance: 50KM. Product photo transmitter receiver

COFDM wireless video audio transmision system

1. Working Frequency: 325-860MHz

2. Modulation: COFDM

3. Transmission distance: 50KM

1KM to 50KM 2W COFDM wireless mobile video transmitter / NLOS video transmission

Main Features:

Lithium battery for power supply

Convenient to be carried and installed

COFDM modulation and MPEG-2 video compression

Firm enclosure with built-in cooling fans, waterproof and shockproof

Great security by encryption of AES 128 bit/ALLTECH Basic Scrambling

Modular design and highly integrated

Good transmission with high definition image and stereo audio

Adjustable working frequency, LCD board displays the working frequency

Stable transmission in NLOS(non line-of-sight)and high speed mobile conditions.

The transmission range is more than 50km in LOS (line-of-sight) environment

Transmitter Specification

Modulation COFDM

DC Input DC12.5V-DC14.8V

Working Current & le; 2ADC12.5V

Constellation QPSK, 16QAM, 64QAM(optional)

FEC 1/2, 2/3, 3/4, 5/6, 7/8(optional)

Guard Interval 1/32, 1/16, 1/8, 1/4(optional)

Carrier 2K

Frequency Bandwidth 2/4/8M

Output Frequency 325-399MHz, 400-500MHz, 500-760MHz, 760-860MHz, other 1.0-1.4GHz and 2.3-2.5GHz(To be customized, the operating frequency continuously adjustable LCD displays frequency, 1MHz step)

Audio and Video interface BNC/RCA

Output Power 27-33dBm(selectable) in 1dB step(Standard 2W)

Power Flatness Full band & le; 2dB, 20MHz & le; 0.5dB within

CNR & ge; -30dB 30dBm power output

Teng Yuanzhi Shenzhen Electronic Co., Ltd. is specialized in high-end wireless video monitoring system, colsed-circuit monitoring system satellite communication system, CATV and microwave remote video surveillance system. Wireless control and image transmission system development and application of high-tech private enterprises. The company is one of the wireless microwave transmission systems and network multimedia communications pioneer and leader.

The company has the strong technology and R&D capacity reserve, also has the climax R&D team, we are all committed long-distance microwave communicate industry, serviced security information and radio & TV industry. To create a peaceful harmonious society, we have the responsibility to revitalize the national science & technology. In today's world, the high-quality Remote microwave video transmission system has been widely used in various industries. Including: Government departments, Military, Security system, Oil field, Construction Corps, Large mining, Factories, Construction sites etc., for others large places discommodiousness span the cable need to set up the remote transmission. We are supplying for customers the wireless communication networking, wireless video surveillance and video conferencing integrated complete set of solve project. At present, our company has developed and had a few categories of products, high-end applications for the mobile, high-resolution image transmission system, base on 2.4/5.8GHz license-exempt bands wireless network transmission systems and traditional analog microwave remote image transmission system, the transmission distance from a few tens of meters to several kilometers. Change system can be applied to mountain, forest, countryside, desert, rivers, islands, oil, electricity, construction sites and other places the transmission environment.

The Remote image transmission system can transmit real-time, long-distance and high-definition video images, because of the image carrier frequency so high, has a strong immunity and transmission long distance, so it be popularitied by customers in the industry and has achieved good social benefits.
