Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
CATV（Cable Television）Equipment |

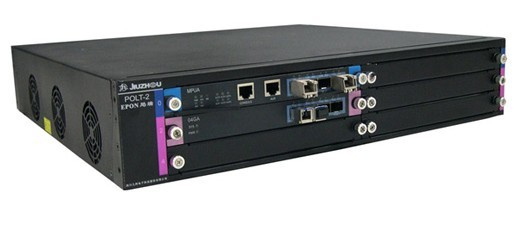

Product Description
Compliant with IEEE 802.3ah EPON standard
Support ONU validity certification and illegal ONU login report
Support DBA arithmetic, granularity 64Kbit/s
Support OAM Management, and ONU software OTA upgrade
Support Vlan, QoS, Group Broadcasting
NMS support CLI, Console, Telnet, Web management, SNMP, and support NGBNView system.
Advantage energy-saving semi-slot design, 2U Height and 10G Switch design
Backplane capacity is more than 480Gbps
Provide 20Km AES encrypty transmission, Single fiber up to 1GHz bandwidth
Single PON port can Provide Maxi. 64*ONU access, Full-configuration is up to 20*PON and support 1280*ONU access
5 of 6 slots are serive slots
1+1 redundant hot-backup host- control panel and power supply
with AC: 90~260V, 50/60Hz and DC: -36V~-72V Input
We are professional CATV products manufactory, which stablished in 1958, we have 52 years of experience in developing and manufacturing CATV systems. Our sales network covers China, Southeast Asia, the Middle East, Europe, and the US.
Our product range includes:
1. Full DVB-C digital headend equipment/software/STB, and solution.
2. Full Gepon/EOC equipments, and solution.
3.1550/1310nm Optical euquipments.
4. Optical workstations, Nodes and receivers.
5. Optical devices and accessories.
6. RF modulators.
7. Trunk and line amplifiers.
8.5-1, 000MHz taps/splitters.
9. Satellite Dish antennas.
10. C/Ku band LNBs.
11. Coaxial and optical cables.
All operations at our 410, 000 square meter facility are ISO 9001 certified. 5600 employees, 100 R&D staff, and 500 engineers are ready to satisfy your requirements. We have an annual capacity of 2, 000, 000 terminal equipment and 80, 000 network equipment.
