Shenzhen Bessky Technology Co., Ltd. >> P2p 4CH CCTV System with Alarm for Building Use (BE-9004H4IB)

P2p 4CH CCTV System with Alarm for Building Use (BE-9004H4IB)

P2p 4CH CCTV System with Alarm for Building Use (BE-9004H4IB)
Price: US $ 102.2/Set
Trade Terms: FOB,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram

Product Specifications

Prod Model: BE-9004H4IB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Alarm CCTV System: 4CH
DVR: 4CH
DVR Resolution: D1/960h
Alarm Function: 2CH Alarm Input, 1CH Alarm Output
Hard Disk: Support 1PCS 4tb HDD
Camera Type: Indoor
Suitable Place: Indoor Use
Camera Color: Black Color (White Color for Option)
P2p: Support Mobile Phone Remote Monitor
Warranty: Camera 2 Yrs DVR 1 Year
Type: Monitoring System
Application: All-Round Monitoring
Feature: Alarm Output
Video Capture System: Dome Camera
Video Transmission System: Coaxial-Cable Transmission
Software Function: Monitoring
Software Usage: Mobile Phone Monitoring Software
Client Software: Client Software
Model: CCTV
Sensor: CMOS
Technology: Infrared
Kind: Fixed Lens
Horizontal Resolution: 420tvl 600tvl 700tvl 800tvl

Product Description

Product name:P2P 4ch CCTV system with alarm for building use

Item No.:
BE-9604H4IB42  (BE-DIB42 Plastic IR Dome 1/3" Sony CCD,420TVL 24 pcs ¢5mm IR-LED IR Distance 20M 3.6 mm Lens)
BE-9604H4IB60 (BE-DIB60 Plastic IR Dome  1/3" Sony CCD,600TVL 24 pcs ¢5mm IR-LED IR Distance 20M 3.6 mm Lens)
BE-9604H4IB70S (BE-DIB70s Plastic IR Dome 1/3" Sony CCD,700TVL 24 pcs ¢5mm IR-LED IR Distance 20M 3.6 mm Lens)
BE-9604H4IB80M (BE-DIB80M Plastic IR Dome 1/3" CMOS 800TVL 24 pcs ¢5mm IR-LED IR Distance 20M 3.6 mm Lens)

Camera specification:

1/2.8,1/3,1/4 Sony CCD/CMOS
420-1200TVL(Low Illumination, DWDR, OSD, DNR, PM, MD)
IR LED: ¢5X24PCS
IR Range:20M
Plastic home IR dome camera
Built-in 3.6mm/F2.0 Board Lens
2 years warranty
Model No.BE-DIB70SBE-DIB80MBE-DIB60BE-DIB42
Image Sensor1/3"Sony 1/3"CMOS1/3"Sony 1/3"Sony
 ICX811AK CCD PC3089ICX639BK CCDICX633BK CCD
Resolution700TVL,
Low Illumination,
 DWDR, OSD,
DNR, PM, MD
800TVL600TVL,
Low Illumination,
DWDR, OSD,
DNR, PM, MD
420TVL
Pixels P: 976 (H)×582(V) 762 (H)×504(V) P:  795 (H)×596(V)P: 500(H)×582(V)
N : 976 (H)×582 (V)N:  811 (H)×508 (V)N: 510(H)×492(V)
TV StandardsPAL/ NTSC
IR LED24PCS of ¢5mm IR LED
IR Distance20m
LensBuilt-in 3.6mm/F2.0 Board Lens
Sync SystemInternal
Illumination0.01Lux/F2.0
IR Power OnCDS Auto Control
S/N Ratio≥65dB (AGC OFF)≥54dB (AGC OFF)≥48dB (AGC OFF)
Gamma Correction0.45
Video OutputComposite Signal (1.0Vp-p, 75Ω)
Scanning SystemPAL: 625 Lines, 50 Field/Sec;   NTSC: 525 Lines, 60 Field/Sec
Electronic ShutterAuto:    PAL 1/50-1/100,000Sec;   NTSC 1/60-1/100,000Sec
Operation Temp-10°C ~ +50°C,   RH: 95% Max
Storage Temp-20°C ~ +60°C,   RH: 95% Max
White BalanceAuto
Power SupplyDC12V
Dimension¢92 x 64(H) mm
Weight400g

DVR Feature:
Use the standard H.264 video compression format
Support 4ch Full D1 realtime recording resolution,ahead to D1 High-Definition period
Dual-stream design,network remote view effects and local recording effects parameters can be set separately,independently of each other
Multiple operation simultaneously:Preview,recording,playback,backup,network live,mobilephone view
Multiple record mode:Auto,timer,motion recording mode
Support backup with USB Flash Disk, Movable hard disk, DVD writer, Network
Support drag the progress bar can be targeted playback time directly
Support Network function: one IE browser centralized monitoring and CMS Software for multiple DVR
Supports Multiple backup mode: USB flash drive, USB hard disk and network backup
Support one SATA HDD, max capacity is 4TB
Support 3G & WIFI extension
Support multi-browser(IE,Chrome,Firefox,Safari)
Support mobile phone monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
Powerful net service(support DHCP,PPPOE,FTP,DNS,DDNS,ARSP(www.dvrcenter.com),NTP,UPNP,EMAIL,IP  authority,IP search,alarm center, etc),complete enclosure(WEB,CMS,SDK),to easily achieve interconnection
Specification:
 ModelBE-9004H
SystemMain processorHIS chipset Hi3520D
Display Display screen1/4 screen
VideoVideo standardPAL(625 lines,50fps);NTSC(525lines,60fps)
Monitor qualityMonitor:D1;VGA:1080P ;HDMI:1080P
Playback qualityMax support 1080P
Encode capability4CH D1 / 4CH 960H real-time
Decode capability4CH D1 / 4CH 960H real-time
Motion detectionEach channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)
AudioAudio compressionG.711A
Record and playback

Record modeManual,alarm,motion detection,timing
Local playbackSupport 4CH D1 / 4CH 960H real time playback synchronously
Video searchTime,date,event,channel search
Storage and back upSpace occupationVideo:CIF 4~5G/day*channel, D1 16~20G/day*channel;
 audio:691.2M/day*channel
Video storageLocal HDD ,Network
Back up mode  Network backup,USB portable HDD,USB DVD-RW
InterfaceVideo input4CH BNC
Video output1CH BNC,1CH VGA,1CH HDMI
Audio input4CH RCA
Audio output1CH RCA
Alarm input2CH
Alarm output1CH
Network portRJ45 10M/100M self-adaptive Ethernet port
PTZ control1 RS485;support multi kinds of PTZ Protocol
USB port2*USB2.0
HDD port1 SATA(max support 4TB)
Wireless port3G,WIFI(extension via USB port)
CMSCMS softwareSupport (up to 255 DVR simultaneously)
otherTourSupport
Remote controllerSupport
Working temperature-20ºC-60ºC
Working humidity10%-90%
Power12V/3A
Dimension325(L)x 52(H) x 230(W)

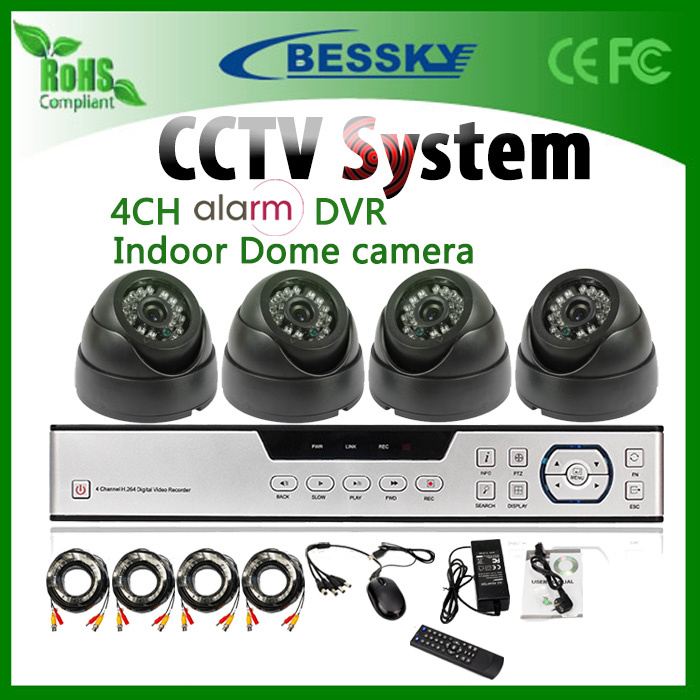

What are included in the DVR Kits?

1.BE-9604H DVR*1
2.Dome camera*4
 (White color for option)
3.YQ36W12-01 power adapter
 (12V/3A power adaptor for cameras.)*1
4.BE-plug01 power cord*1
5. BE-VP20 20Meter DC+BNC Cable*4
6. BE-1IN4 4way power splitter*1
    user manual

Package Weight:8kg

We have many other models of cameras, DVR (4CH, 8CH, 16CH) and CCTV systems (4CH, 8CH, 16CH) for your choice.
Established in 2003, Shenzhen Bessky Technology Co., Ltd. is a high-tech enterprise with integration of R&D, manufacture and sales of surveillance equipments, specializing in DVR, CCTV Camera including Dome Camera, Weatherproof Camera, Speed Dome Camera, Box Camera, All in one camera, IP Camera and Wireless Camera and DIY Kit. Our products have been widely applied in banks, power industry, transportation, public security, stores, factories and enterprises, institutions and communities and other fields.

We have strong technical support and qualified professionals. They have advanced technical and interpersonal skills, which guarantee the reliable quality, the improvement and the innovation of our products.

Guided by our principle of " Quality is the first, sincerity is the most ", we work hard to ensure full customer satisfaction. We closely monitor the entire manufacturing process from start to finish. Every product is tested and checked by our in-house technicians for excellent quality. Our products are exported to many countries and regions, including America and Europe. To expand our international market share, we sincerely welcome you to contact us for more information.

Wish our efforts can provide you with the most satisfying service.
