| Price: | US $ 45/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | DVR-6004S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Preview Resolution: | 4 Cameras with 1080P Realtime Preview |
| Video Compression: | H.264 Dual-Stream Video Compression |
| Main Processor: | Embedded Processor |
| Operating: | Embedded Linux |
| Video Input: | 4CH |
| Interface: | 1 HDMI, 1 VGA, 1 BNC |
| Recording Resolution: | D1/4CIF(704X576/704X480) 2CIF(704X288/704X240)/ |
| Record Main Stream: | D1(1~25/30fps) |
| Record Mode: | Manual, Schedule(Regular(Continuous), Md), Stop |
| Sync Playback: | 4CH |
| Type: | Standalone |
| Feature: | D1 Record |
| Operating System: | Linux |
| Technology: | Realtime Full D1DVR |
| Sensor: | Embedded Linux |
| Style: | Mini Size DVR |
| Horizontal Resolution: | 1920*1080 |

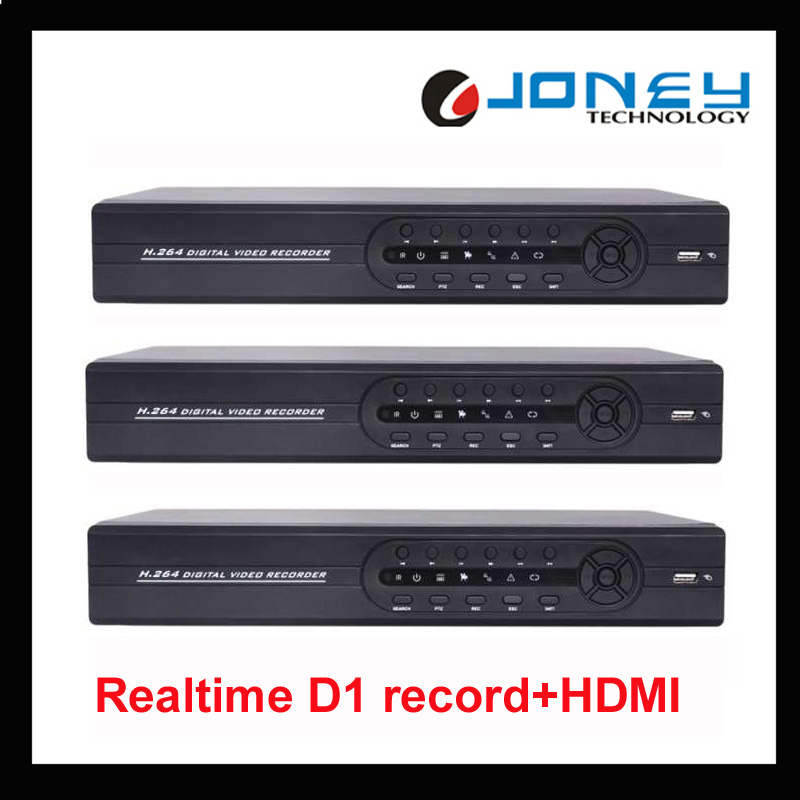

DVR6004S
4 channel video inputs
4 ch audio in/out
All channel@ D1(4CIF) realtime recording
HDMI, VGA output up to 1080p
4ch alarm in & 3/3/1ch relay out
4ch sync realtime playback
1 SATA, 2 USB, RS485, 1 RJ45(100M)
> Up to 4/8/16 cameras with 1080p realtime preview
> H.264 dual-stream video compression
> All channel D1(4CIF) realtime recording
> HDMI / VGA / TV simultaneous video output
> All channel synchronous realtime playback, GRID interface & smart search
> Support 2 SATA HDD up to 6TB, 2 USB2.0
> Multiple network monitoring: Web viewer, CMS,Mobile phone (Iphone/Smart phone,Andriod,IPAD,Windows phone)
| System | ||||
| Main Processor | Embedded processor | |||
| Operating System | Embedded LINUX | |||
| Video | ||||
| Input | 4 channel, BNC | |||
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | |||
| Audio | ||||
| Input | 4 channel, RCA | |||
| Output | 1 channel, RCA | |||
| Two-way Talk | Reuse audio input/output channel 1 | |||
| Display | ||||
| Interface | 1 HDMI, 1 VGA, 1 TV, BNC(1.0Vp-p, 75) | |||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | |||
| Display Split | 1/4 | |||
| Privacy Masking | 4 rectangular zones (each camera) | |||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||
| Recording | ||||
| Video/Audio Compression | H.264 / G.711 | |||
| Resolution | D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) | |||
| Record Rate | Main Stream: | D1(1~25/30fps) | ||
| Extra Stream | CIF(1~25/30fps) | |||
| Bit Rate | 48~4096Kb/s | |||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |||
| Video Detection& Alarm | ||||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||
| Alarm Input | 4 channel | |||
| Relay Output | 3 channel | |||
| Playback & Backup | ||||
| Sync Playback | 1/4 | |||
| Search Mode | Time/Date, MD & Exact search (accurate to second) | |||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||
| Backup Mode | USB Device / Network | |||
| Network | ||||
| Ethernet | RJ-45 port (10/100M) | |||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | |||
| Max. User Access | 20 users | |||
| Smart Phone | iPhone, iPad, Android, Windows Phone | |||
| Storage | ||||
| Internal HDD | 2 SATA port, up to 4TB | |||
| Auxiliary Interface | ||||
| USB Interface | 2 ports (1 Rear), USB2.0 | |||
| RS485 | PTZ control | |||
| General | ||||
| Power Supply | DC12V/2A | |||
| Power Consumption | 10W(without HDD) | |||
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |||
| Dimension(W×D×H) | Mini 1U, 324x243x52mm | |||
| Weight | 2.4KGKG(without HDD) | |||
