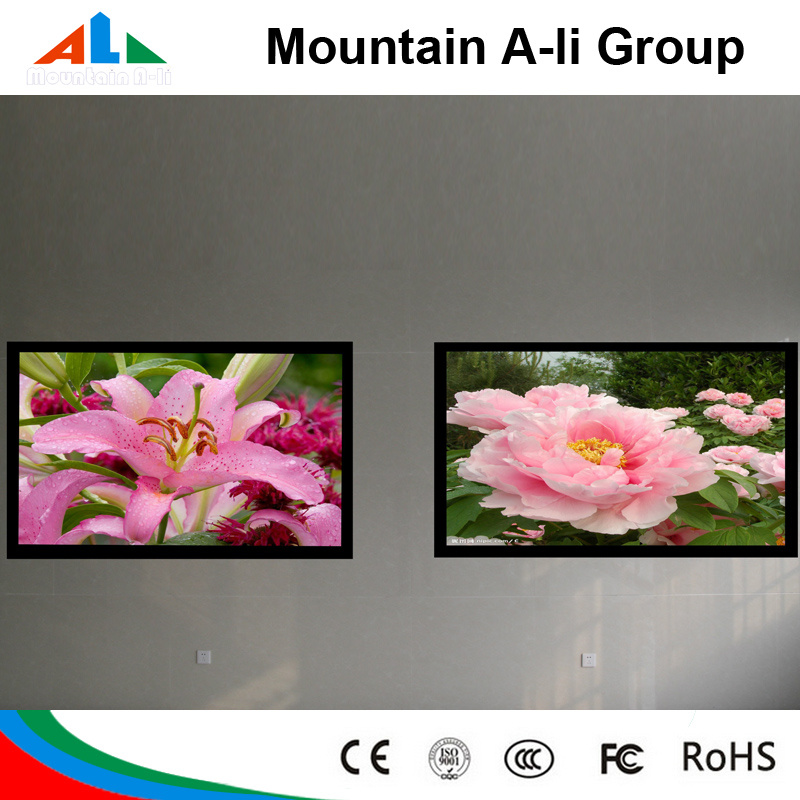

P3 Indoor Full Color LED Display for Advertising

Name: P3 Indoor Full Color LED Display for Advertising
Brand: china-manufacturer-directory.com
SKU: 746090925
Availability: InStock
Rating: 4.7 (91 reviews)

Supplier:	Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.
Price:	US $ 2300-3000/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CIP,EXW

Product Specifications

Prod Model:	P3 indoor led display screen
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe
Module Size:	192mm*96mm
Pixel Resolution:	64dots(W)*32dots(H)
Module Thickness:	26.63mm(Containing Magnets)
Max Power Consumpion:	18W
Module Weight:	0.16kg
Brightness Of White Balance:	1500CD/M2
Best Viewing Distance:	3m~20m
Control Mode:	Synchronization with PC
Display Type:	LED Video Display
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/16 Scan
Application:	Shopping Guide
Pixel Configuration:	1R,1G,1B
Certification:	FCC /IP65
System Operating Platform:	WIN2000
Pixel Pitch:	3mm
IP Rating:	IP31
Pixel Density:	111111dots/M2

Product Description

Product Description
P3 Indoor Full Color LED Display:
Streamlined appearance design
Easy to install, no need use tools
Seamless splicing technology
Diversified installation structure design
Point by point correction high-end display technology
Patent technology to screen more stable
Automatic timer function
No fans, no noise
Full color indoor led electronic display has many advantages as following:
1. Energy saving.
2. Colorful, fresh & beautiful images.
3. Competitive price.
4. Superior Uniformity.
5. Extra-high Brightness.
6. The LED display screen is comprised by the cabinet.
7. The LED Display cabinet has a fixed size(standard size).
8. We can expand the size of the LED display according to our requirement based on the cabinet size.
9. High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
10. Having good lightening accordance and no mosaic.
11. Having larger viewing angle: Horizontal angle 110 degree / elevation angle 110 degree. Getting vivid effect within any position of the viewing range.
12. Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance.
13. Good heat emission capability.
14. Environmental-friendly.

SMD P3 Indoor Full Color HD LED Display (192mm*96mm)
To get best white balance, color ratio is designed to be R: G: B/3: 6: 1.
Pixel	Item	Parameter
	Real Pixel pitch	3mm
	Pixel composition	1 red, 1 green and 1 blue LED
Module	Module resolution	64 x32=2048pixels
	Module size	192mm x96mm
Cabinet	Cabinet size	576mm x576mm
	Cabinet resolution	Real pixel: 36864pixels
	Cabinet materials	Cold rolled steel (mixed Iron & steel)
Screen	Physical Resolution /sqm	111111pixels/sqm
	Brightness	≥ 1700cd/sqm
	Brightness adjustment	256 level automatically
	Scanning method	1/16scan & physical pixel
	Drive methods	Constant current drive
	Best Viewing angle	Horizontal: 110 degrees, vertical: 110 degrees,
	Grey scale	65536 levels
	Color processing	16bit
	Display colors	4.4trillion
	Contrast ratio	2000: 1
	Frame rate	> 60 frames/sec
	Refresh rate	1000-3000HZ(no flickers whilecamcorder recording)
	Control method	Synchronized with computer monitor
	Lifetime	> 100, 000 hours
	Defects rate	≤ 0.0001
	Operating voltage	AC220V± 15% , 50/60HZ
	Screen power consumption	Max: 1800w/sqm; Average: 750w/sqm
	Color temperature	6500K± 500
	Control distance.	100 m(no repeating) by net line; Optical fiber: 500m- 10km
	IP level	IP40 in the front, IP40 at the back
	Operating temperature	_ 20degree--+60degree
	Operating ambient humidity	10%_ 95%RH

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
